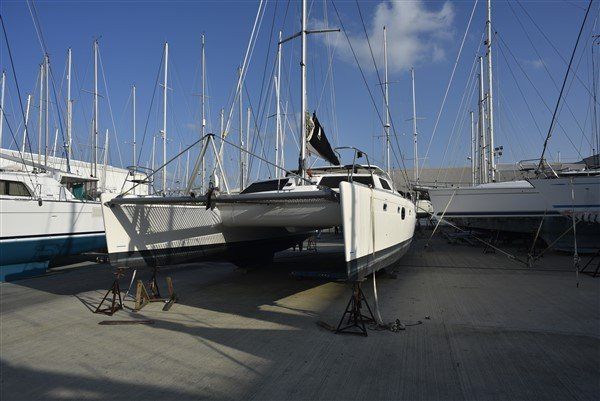

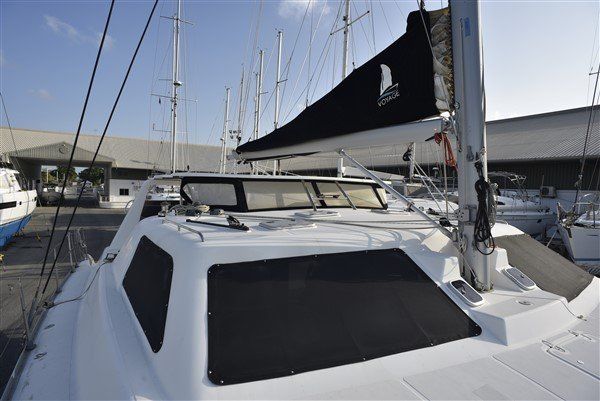

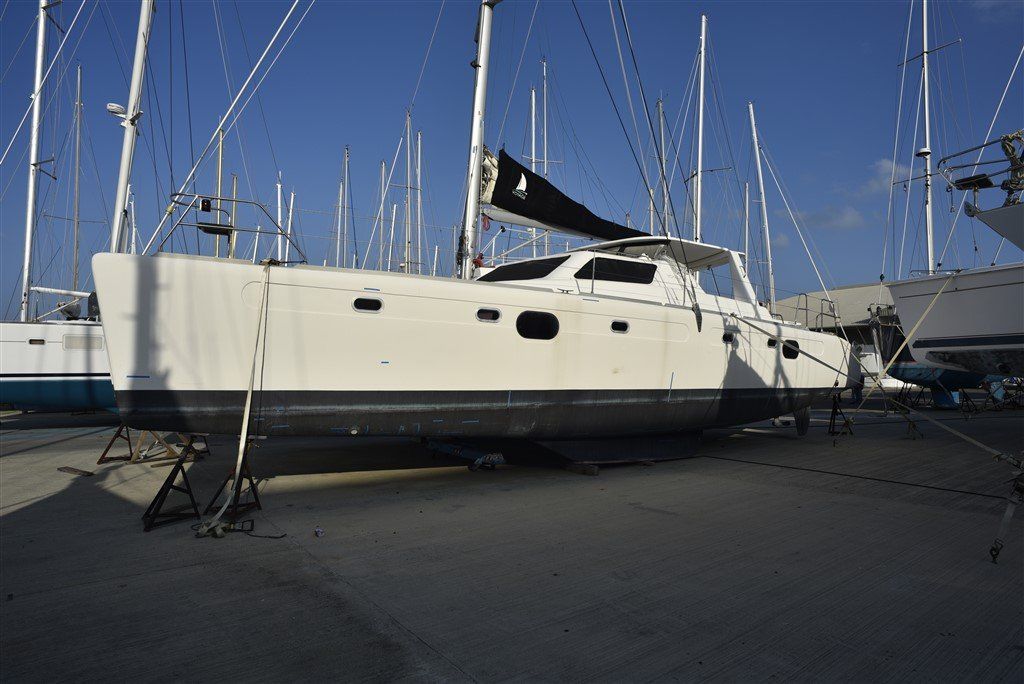

VOYAGE 480 - SOLD (hurricane damaged)

VESSEL INFORMATION

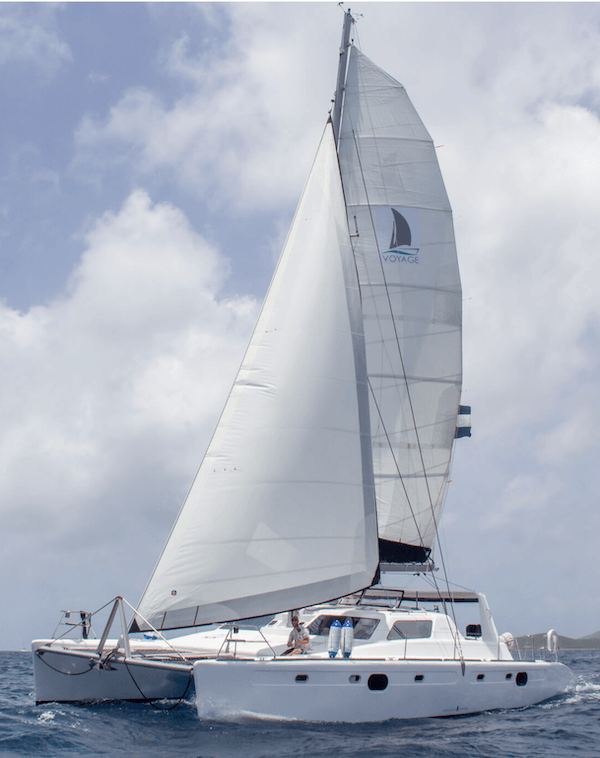

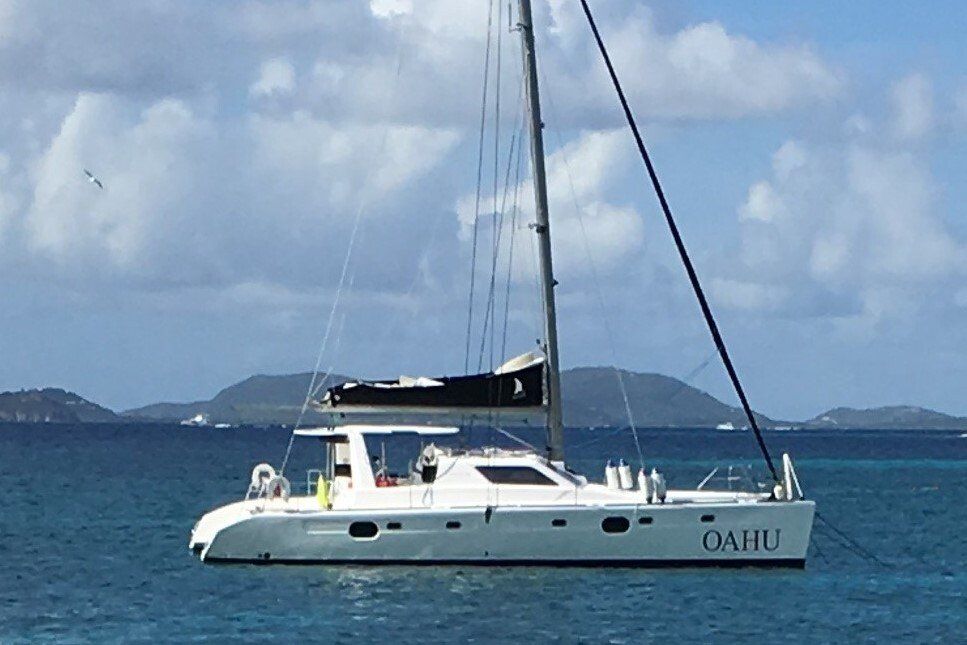

The VOYAGE 480 is an evolution of an already stellar, award-winning design. Optimal use of space allows the sleek hulls to accommodate an exceedingly comfortable interior living space, while maintaining the performance and safety that is characteristic of all VOYAGE yachts.

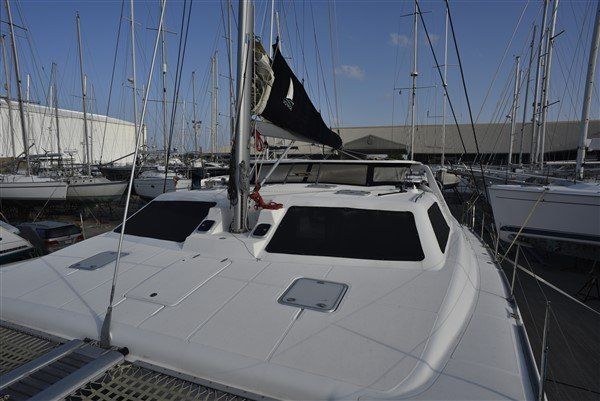

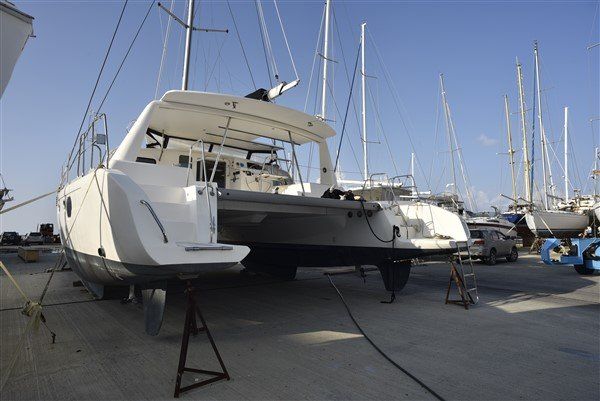

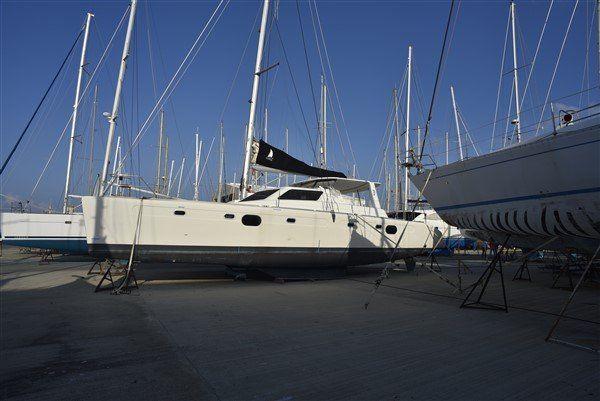

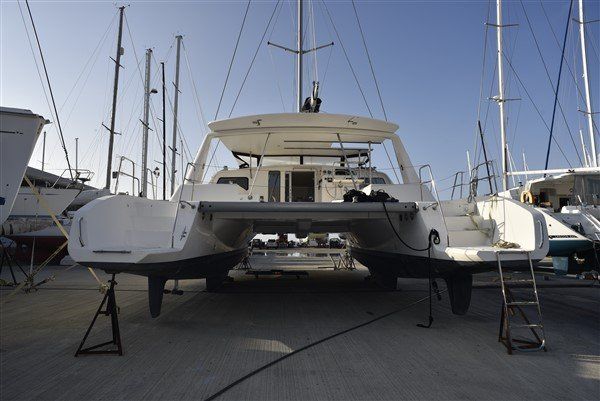

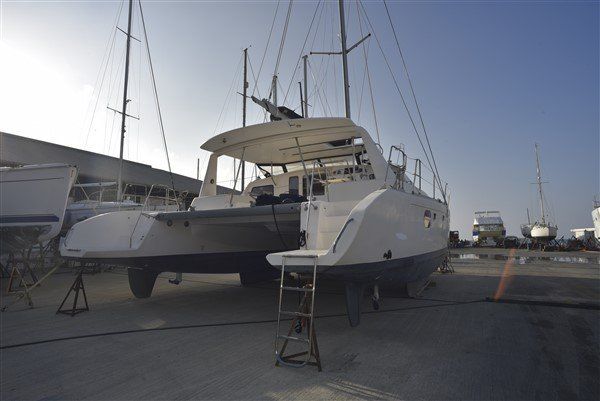

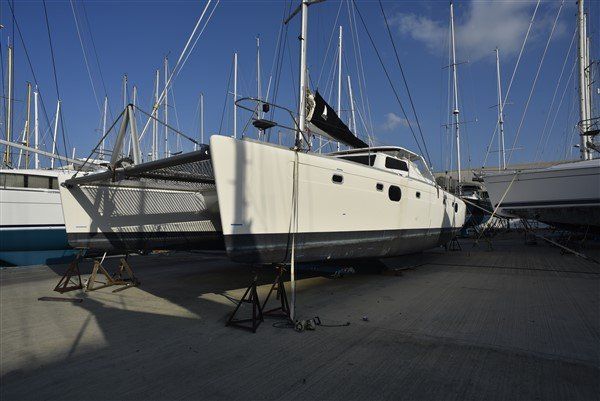

This vessel was almost new when it was damaged in the 2017 hurricane in Tortola. It has been partially repaired along with a new mast and boom and a new dingy and motor. It is being sold as a project boat "as is where is". It was purchased with $188, 874 worth of extras (see specifications)

Specs

Builder: Voyage Yachts
Designer: Simonis Voogd
Hull Shape: Catamaran

Dimensions
LOA: 49 ft 6 in
Beam: 25 ft 1 in
LWL: 44 ft 6 in
Maximum Draft: 3 ft 6 in
Displacement: 23038 lbs

Dry Weight: 20790 lbs

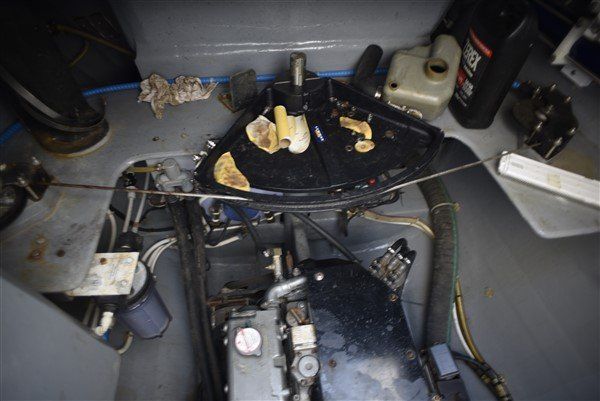

Engines

Engine 1
Engine Brand: Yanmar
Year Built: 2016
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Port hull
Propeller: 2 blade propeller

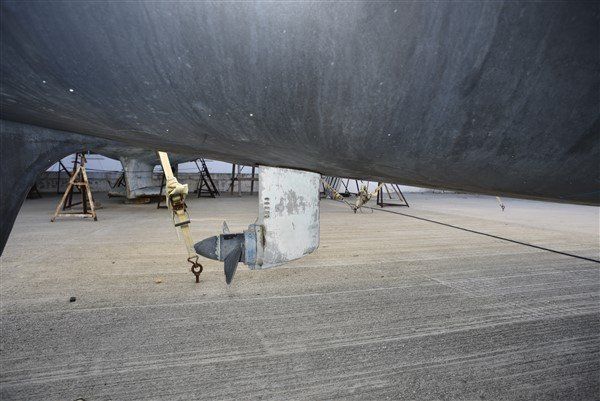

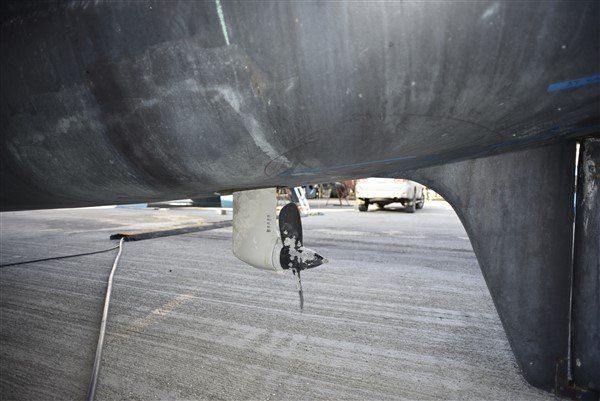

Drive Type: Sail drive
Engine Power: 40 HP

Engine 2
Engine Brand: Yanmar
Year Built: 2016
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Starboard hull
Propeller: 2 blade propeller
Drive Type: Sail drive
Engine Power: 40 HP

Tanks

• Fresh Water Tanks: (106 Gallons)
• Fuel Tanks: (106 Gallons
• Holding Tanks:

Accommodations

• Number of double berths: 4
• Number of heads: 4

Manufacturer Provided Description

The latest creation from VOYAGE yachts, the VOYAGE 480 is an evolution of an already stellar, award-winning design. Optimal use of space allows the sleek hulls to accommodate an exceedingly comfortable interior living space, while maintaining the performance and safety that is characteristic of all VOYAGE yachts.

Installation of choice systems and high quality finishes render the VOYAGE 480 a thoroughbred cruising catamaran, as well as an ideal charter yacht.

VOYAGE 480 Standard Specification

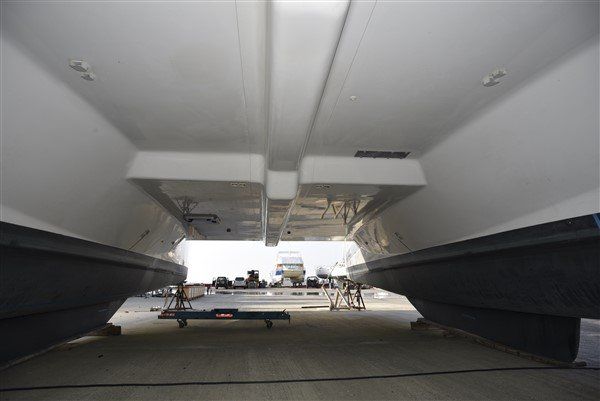

HULL DECK AND BULKHEADS:

• Antifouling over epoxy based osmosis barrier

• Closed cell PVC foam core, vacuum bonded for stiffness, strength and minimal weight

• Forward water tight compartments with horizontal bulkheads

•Hand laid-up GRP construction using multi layers of Quadraxial glass roving, isophthalic and orthophthalic polyester resin and other highest grade material

• Low aspect reinforced keels

• Marine ply and balsa core on critical structure bulkheads for added strength and stiffness

•Reinforced fitting areas for cleats and chain plates

• Skeg supported rudders

DECK FITTINGS: STAINLESS STEEL, Grade 316

• Bow pulpits with teak seats

• Double guard wires

• Grab rails on coach roof

• Stanchions and stanchion bases

• Stern push-pits with brackets for life ring buoys & overboard lights

• Swim ladder Starboard

• Inner push-pits with guard rail across

DECK EQUIPMENT:

• Stainless Steel mooring cleats: 10

• ANDERSEN 46ST Primary winches on coach roof: 2

• ANDERSEN 46ST Secondary winches in cockpit: 2

• QUICK Electric windlass 1

• Teak walkway between trampolines

• Tracks, cars, jammers and blocks

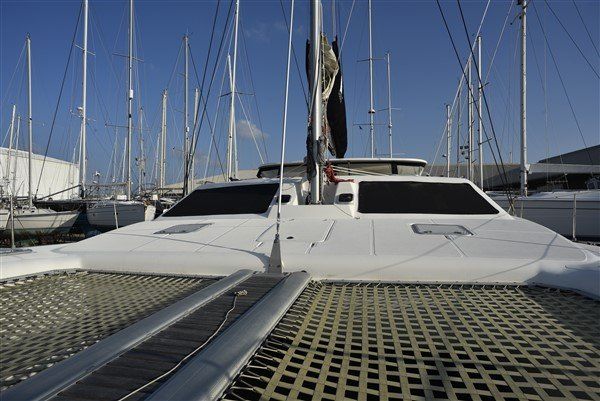

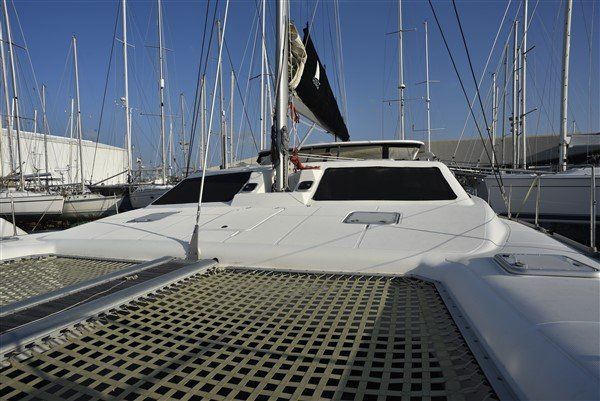

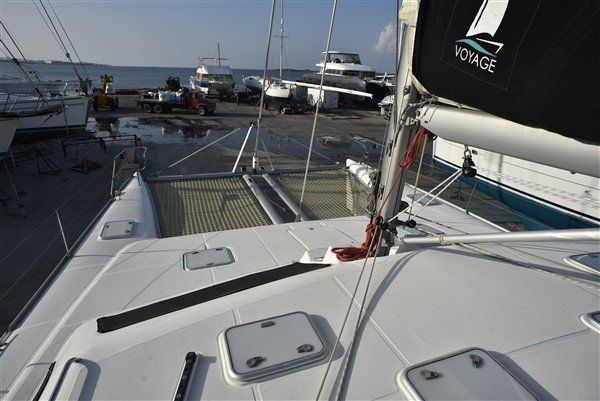

• Webbing trampolines

• Toe rail with stanchion bases

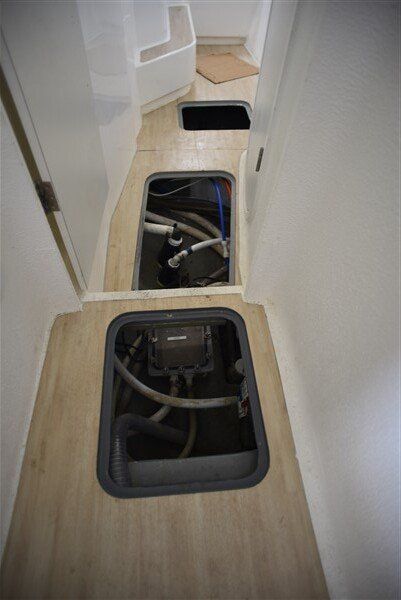

PLUMBING:

• Automatic electric bilge pumps with alarms: 4

• Black water systems & holding tanks: 2

• Calorifiers 25 liters each (hot water system): 2

• Manual bilge pumps: 2

• Pressurized hot & cold deck shower (starboard)

• Self draining cockpit

HATCHES AND WINDOWS:

• Anodized aluminum framed sliding door with safety glass

• GRP locker lids in cockpit: 7

• GRP locker lids on foredeck: 1

• LEWMAR hatches: 10

• LEWMAR port lights: 8

• Reflective laminated safety glass windows: 9

• Ventilation hatch with teak grid in galley

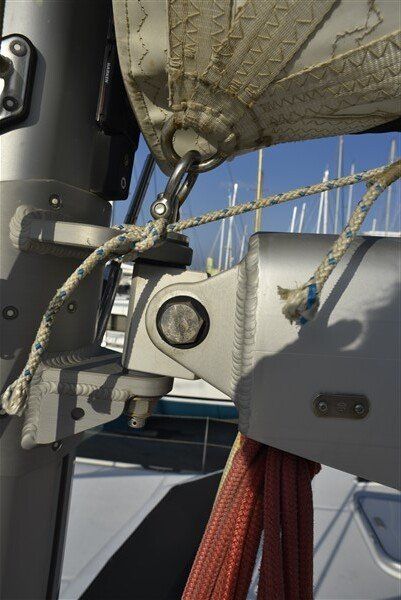

RIGGING:

• 7/8th fractional rig

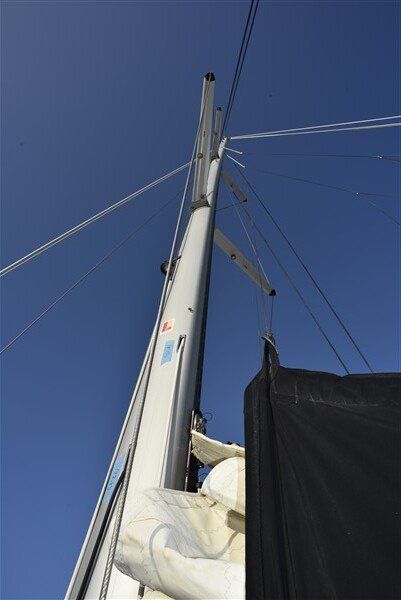

• Anodized aluminum mast, boom, cross beam and double compression posts

• Color coded sheets and control lines

• Double purchase main halyard

• Flag halyards, Port and Starboard

• Luff pendants: 2

• Mast supported by double spreaders, intermediate and cap shrouds, forestay and inner forestay

• Reefing lines: 2

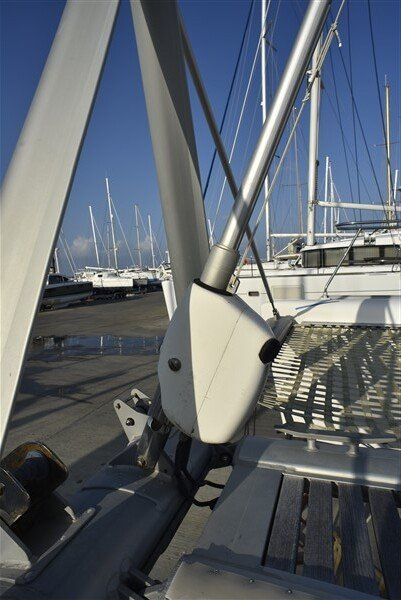

• Telescopic boom derrick for hauling dinghy on to dive platform

SAILS:

• HARKEN Battcar system for Mainsail

• Mainsail Stowage Pack with lazy jacks

• PROFURL Genoa Roller Furler

• ULLMAN Fully battened main with large roach, 2 reef points, 10.3 oz high modulus, cross cut Dacron

• ULLMAN Furling Genoa with foam luff and UV cover, 7.3 oz high modulus cross cut Dacron

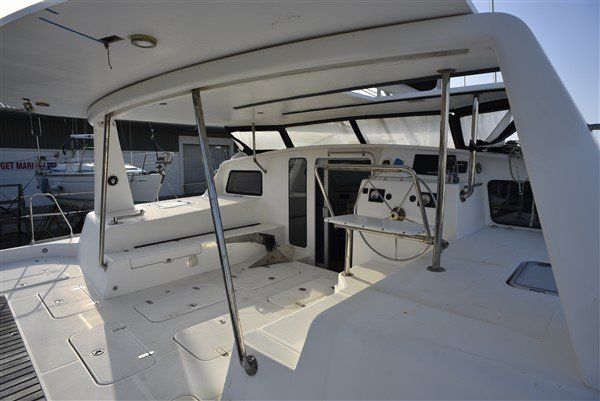

COCKPIT/AFT DECK:

• Open cockpit with removable aft seat

• Dingy stowage supports & BBQ mounting point

• Double helmsman’s seat

• GRP Cockpit table

• Hard Top Bimini and Spray dodger

• Sheet pouches: 2

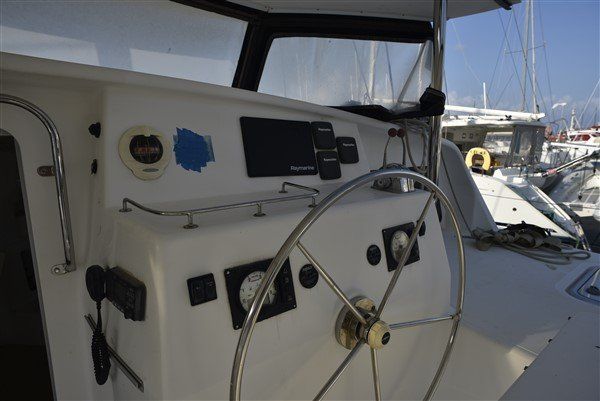

• Steering console including: • Instrument console • Stainless steel steering wheel

• Storage lockers: 7

• Teak dive platform/aft deck

• Traveller arch

• Utility pouch: 1

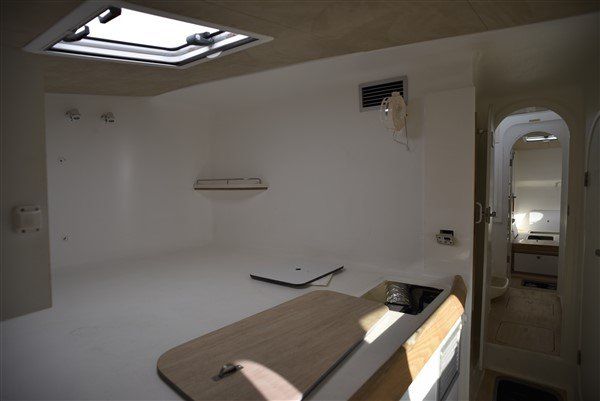

ACCOMMODATION:

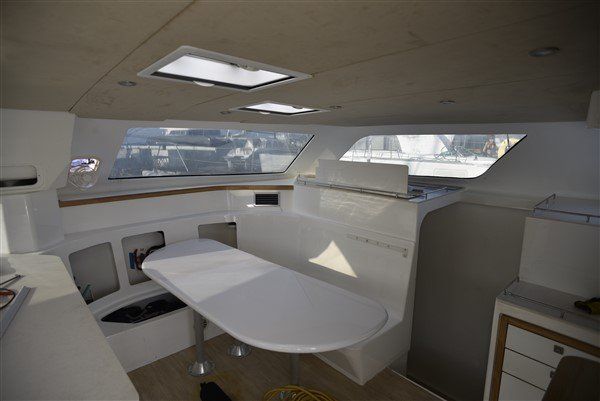

SALOON:

• Acrylic work surfaces

• Leather upholstered settee

• Dining table

• Flooring in hard wearing Vinyl

• Modules in moulded GRP

• Standing height throughout 1.9m

• Storage in seating modules

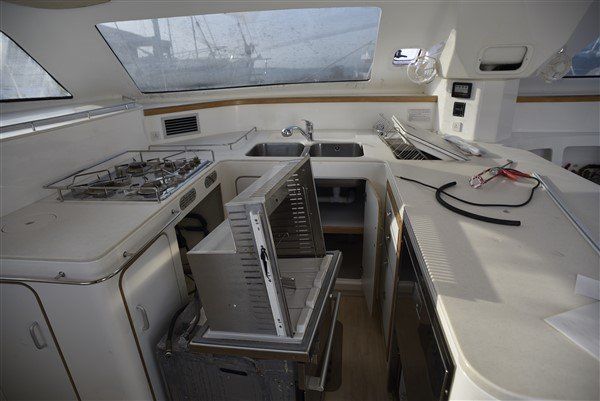

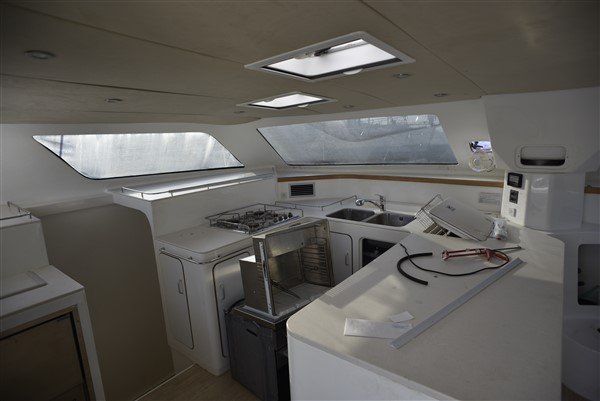

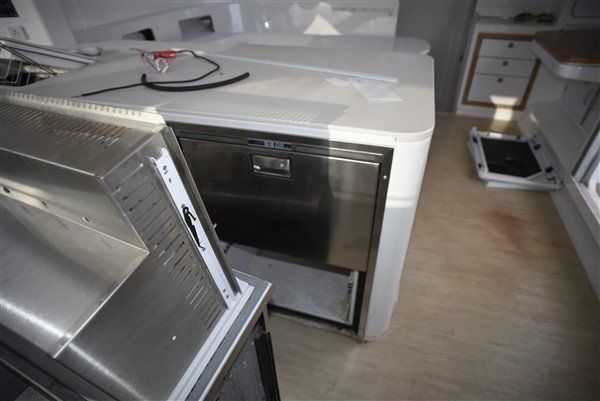

GALLEY:

• Acrylic work surfaces with stainless steel rails

• Facility for microwave oven

• Flooring in hard wearing Vinyl

• Large recessed drip tray

•Modules in moulded GRP

• Pressurized hot & cold water

• Propane gas Oven and 4 burner gas Hob

• Stainless steel double sink

• Stainless steel waste chute with cover

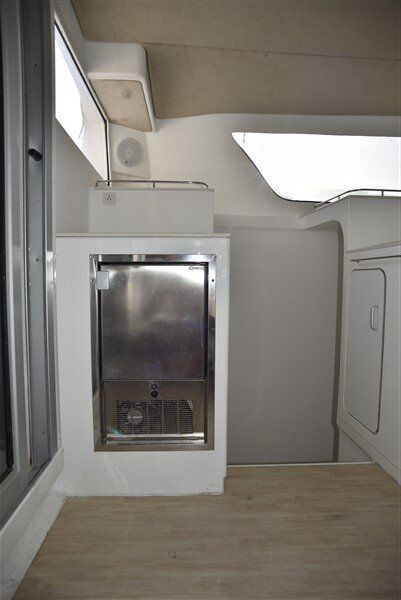

• Front opening refrigerator, 12V air cooled

• Top opening freezer 12V air cooled

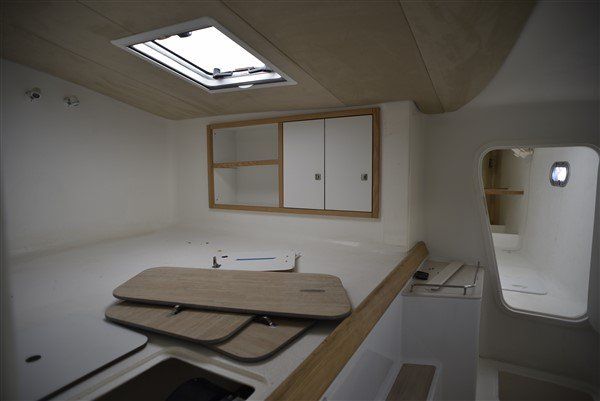

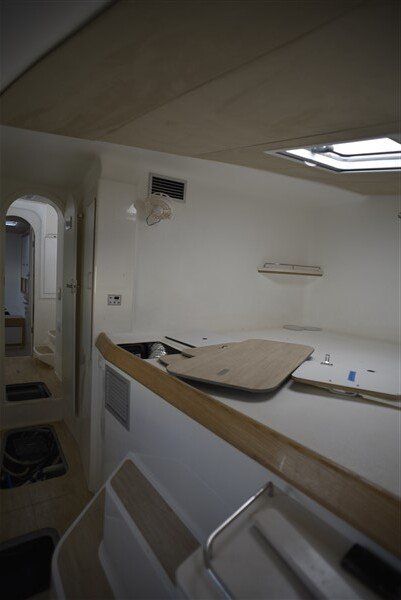

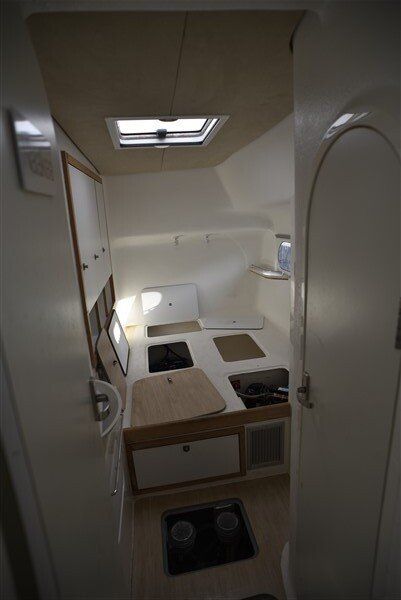

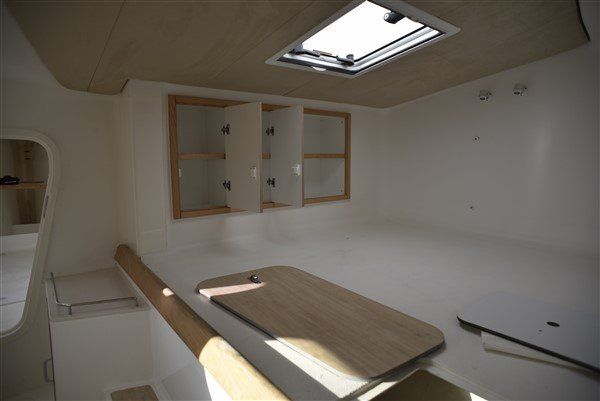

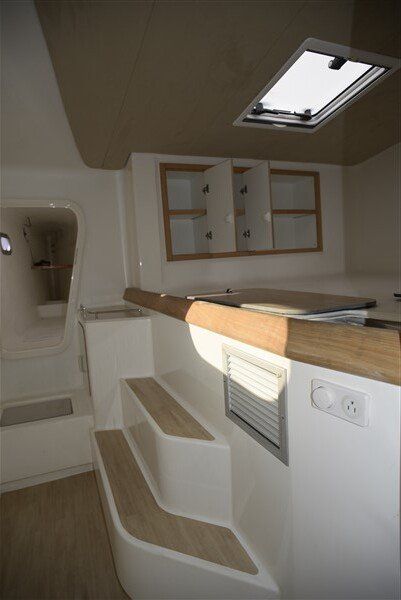

FORWARD AND AFT CABINS:

• Access to bow storage

• Cabin & reading lights

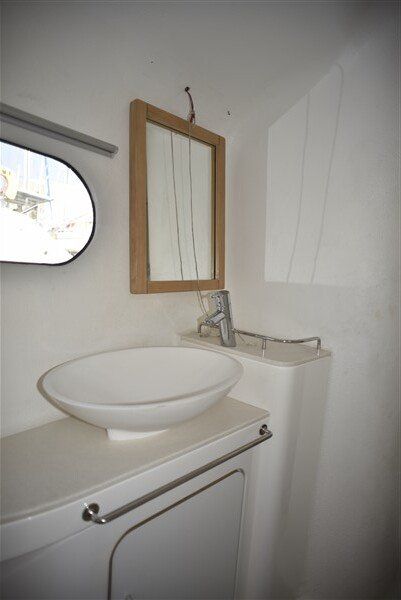

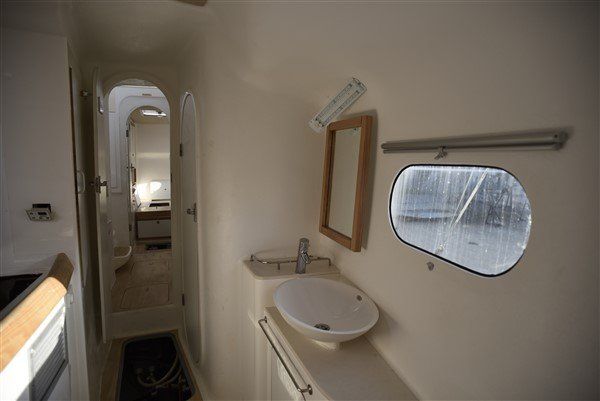

• Wash basin with hot & cold water

• Hanging & storage cupboards

• Laundry locker with upholstered cover

• Modules in moulded GRP

• King size bunk with split mattresses

• Stainless steel towel rail

•Flooring in hard wearing Vinyl

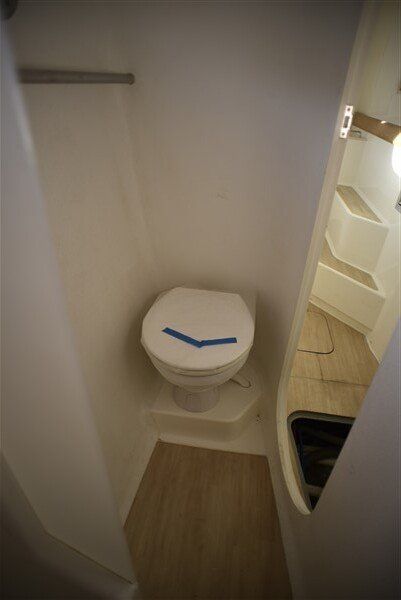

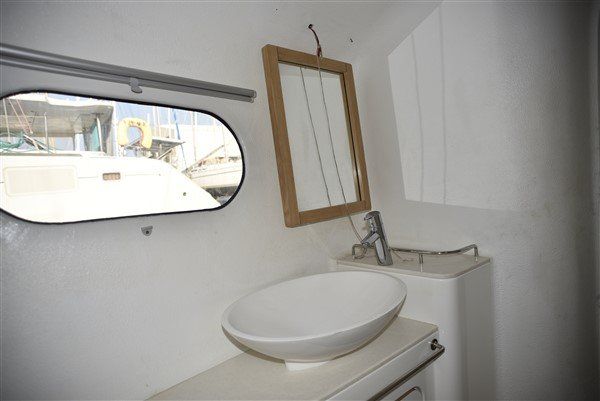

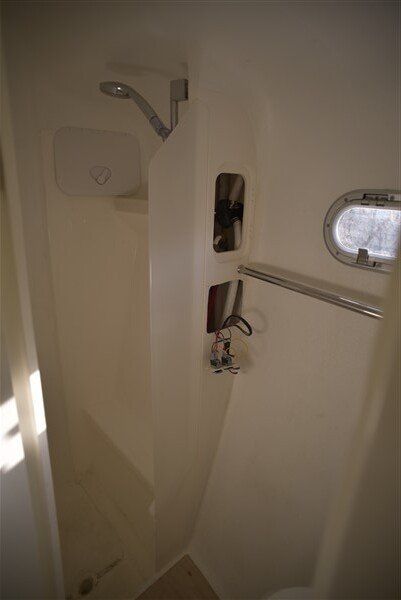

HEAD COMPARTMENTS, PORT & STARBOARD:

• Integrated shower grate and sump

• Manual marine toilet

• Mirror

• Modules in moulded GRP

• Stainless steel towel rail

• Shower separated from toilet

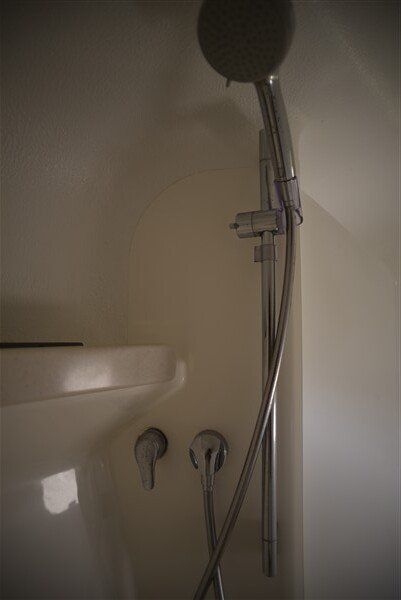

• Shower with hot & cold water

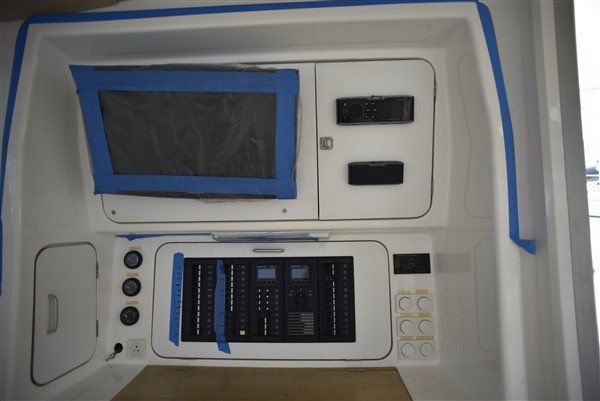

NAVIGATION CENTRE:

• Access panels to electrical installation & systems

• Chart table with recessed chart stowage

• Instrument console

•Navigation seat

INSTRUMENTATION:

• Compass

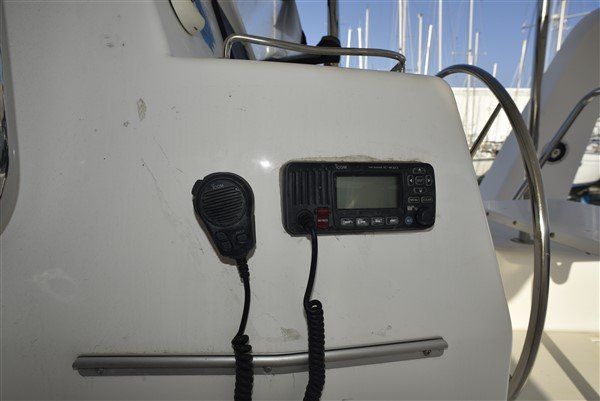

• ICOM M-412 VHF radio with antenna on mast

• RAYMARINE Tri-data & Wind instruments

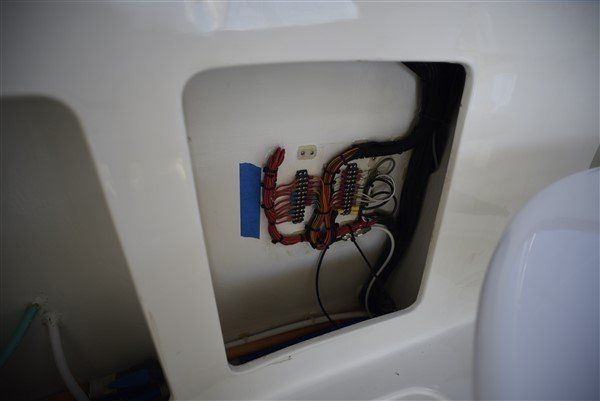

ELECTRICS:

• Alternators on engines charging battery banks

• Battery isolator switches

• Battery management system

• Ceiling lights

• Circuit breaker panel

• Cockpit lights

• Deck light

• Interior DC outlets: 2 in saloon, 2 in engine room

• Lazarette & engine compartment lights

• Mast top & lower navigation lights

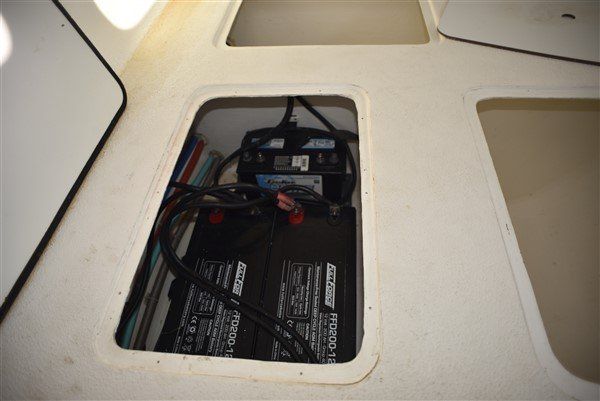

• Ships load battery banks (12V) gel - 400AH x 2 (800AH)

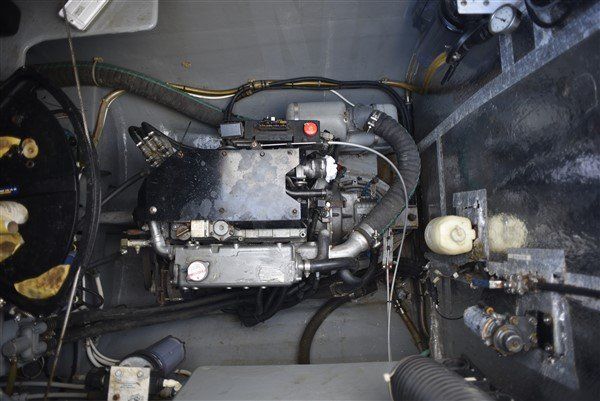

ENGINE EQUIPMENT:

• Alternators 125A: 2

• High pressure fuel lines

• Instrument panels with engine hour meters: 2

• Sound insulation

• YANMAR upgraded to 40 HP diesel engines with sail drive legs, 2 fresh water cooled:

MOORING GEAR AND GROUND TACKLE:

• Anchor bridle with thimbles for anchoring

• Anchor chain lead internally through compression post

• Anchor chain, 50m galvanized and 50m nylon anchor rode

• DELTA anchor

• Dock lines and fenders

• Two anchor rollers, one with tipper

UPGRADES TO THIS VESSEL $188,874

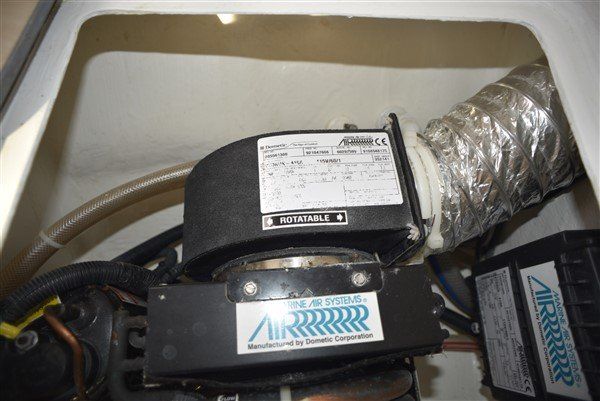

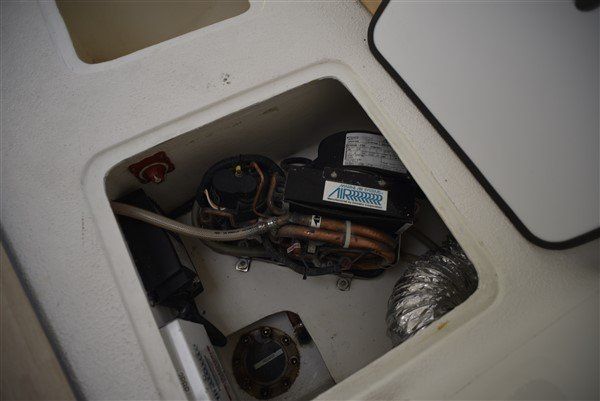

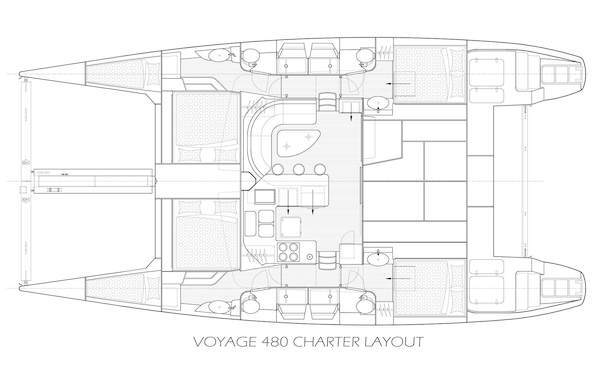

• Air conditioning, Charter layout VOYAGE 480 (2 X 6000 BTU – 2 X 8000 BTU MARINEAIR) units with shore power/auxilliary power.
• Battery Management System: VICTRON Inverter/charger 12V to 110V 3KW
• Countertop upgrade to 12mm Hi-Macs - TAOS
• Deck wash system with faucet in aft locker and chain locker, providing backup to fresh water
• Dinghy Halyard 2:1 with telescopic boom gantry
• Engines upgrade to 40Hp YANMAR
• Gas detection system
• Gates in guard wires

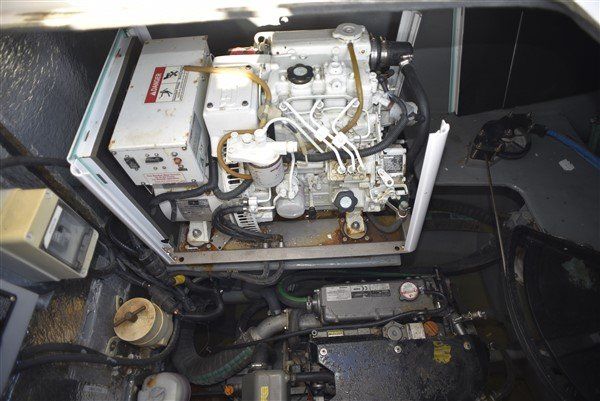

• Generator 6Kw NORTHERN LIGHTS
• Headliner in Cabin (EACH) – ALCANTARA
• Headliner in Saloon ALCANTARA
• Ice Maker – U-Line
• Light upgrade – Blue LED cockpit & stern courtesy lights
• Light upgrade – dimmers, courtesy lights, spreader lights and 12V outlets
• Light upgrade – spreader lights, upgrade to blue LED 1 set
• Logo – VOYAGE on Mainsail
• Pivoting back rest to helmsman’s seat
• PROFURL upgrade to electric C430
• RAYMARINE Autopilot P70 with SPX30 Smartpilot and Whitlock drive
• RAYMARINE Autopilot Smart controller remote with base station E15023
• RAYMARINE c125 multi display with radar/GPS/Chart Plotter, Digital 4KW 48nm Radome, No Cartography
• RAYMARINE c125 Radar/GPS/Chart Plotter multi-funchtion display. Digital 4Kw 48nm Radome with C95 repeater, with WiFi, No Cartography
• RAYMARINE Raychart C95 Chart Plotter, GPS with WiFi, No Cartography
• Remote control for windlass at Helm
• S/S Anchor chain, 10mm 220’ (67m), upgrade

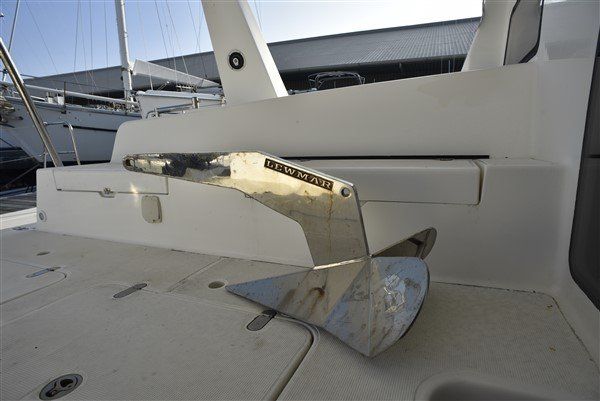

• S/S Anchor upgrade to DTX 25Kg/55LBS
• Secondary anchor – GUARDIAN 37 with 10’ chain, 233’ rope, bolt on cleat on cross beam
• Sound system – 12V FUSION AV750 DVD/CD stereo, Bluetooth, IPOD station & USB amp 70W x 2 remote @ helm. 4 x Poly Planar speakers
• Sound system – Additional BOSE speakers on the mast with switch panel
• Teak Synthetic Flooring: Mannington Realities Teak 5623 - Almond
• Television in saloon – 26” flat screen
• Toilets – Upgrade to PAR – JABSCO Silent Flush (Electric – Salt water) EACH
• Transom swim ladder – Port
• Water filter for galley

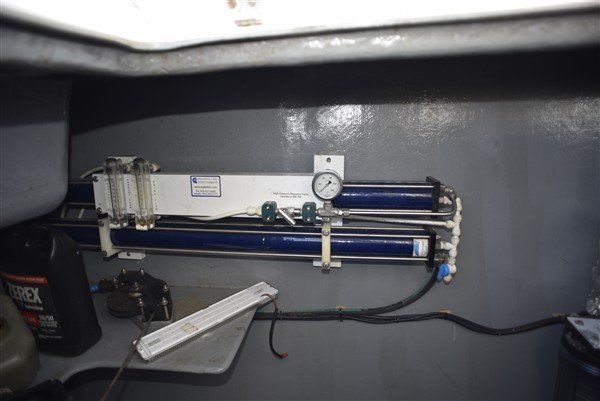

• Watermaker – Sea RO-800 GPD
• Water tank – additional 200 Litre, built-in
• Winch – upgrade 1 x ST46 to electric (12V)
• Canvas work: SUNBRELLA - BLACK
