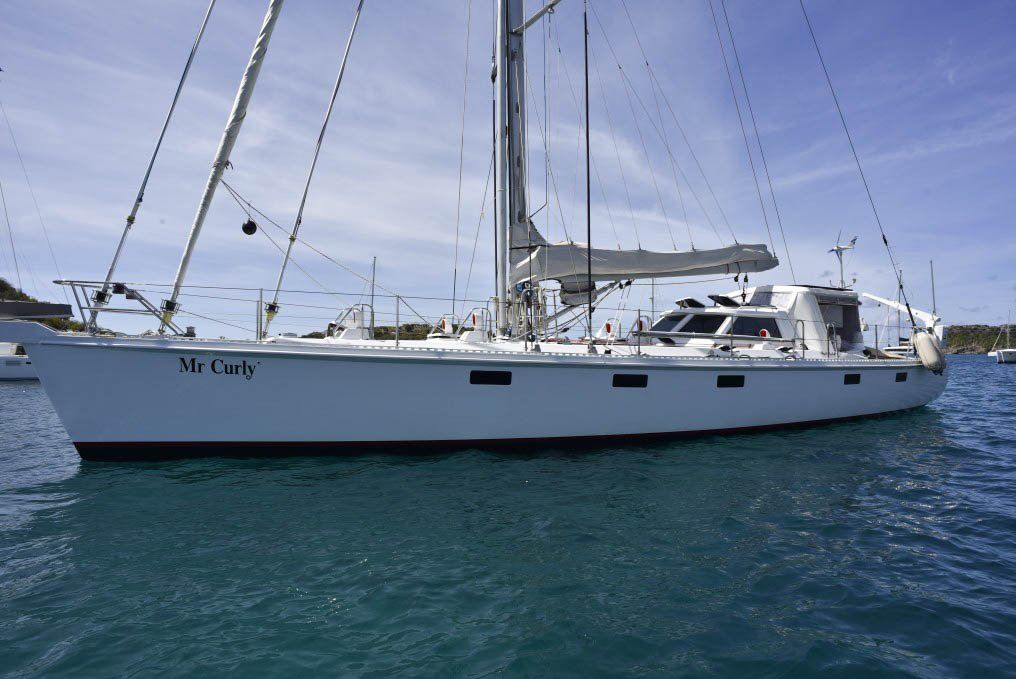

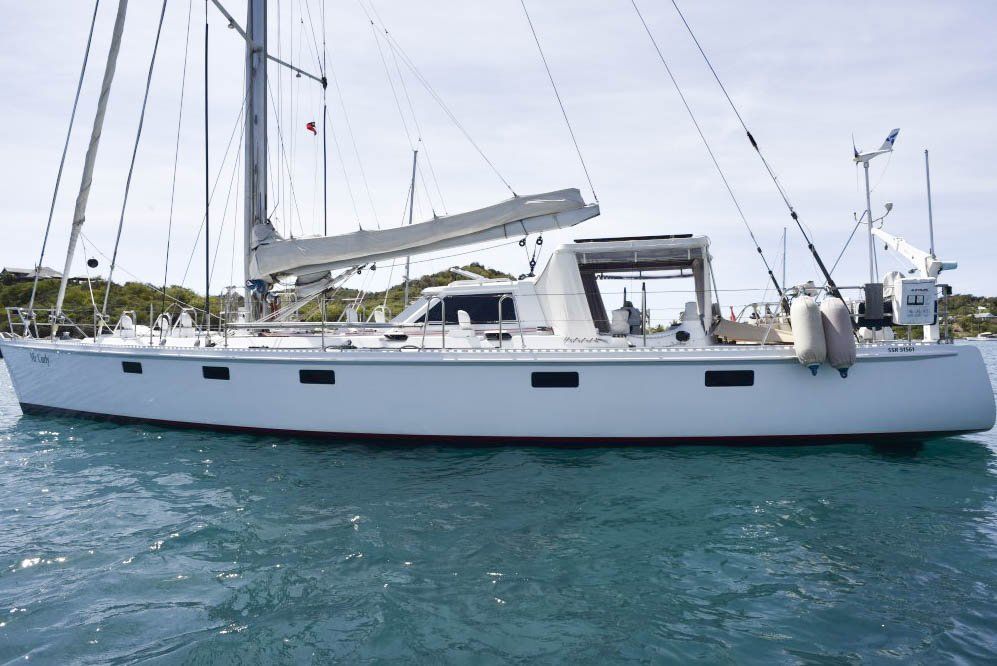

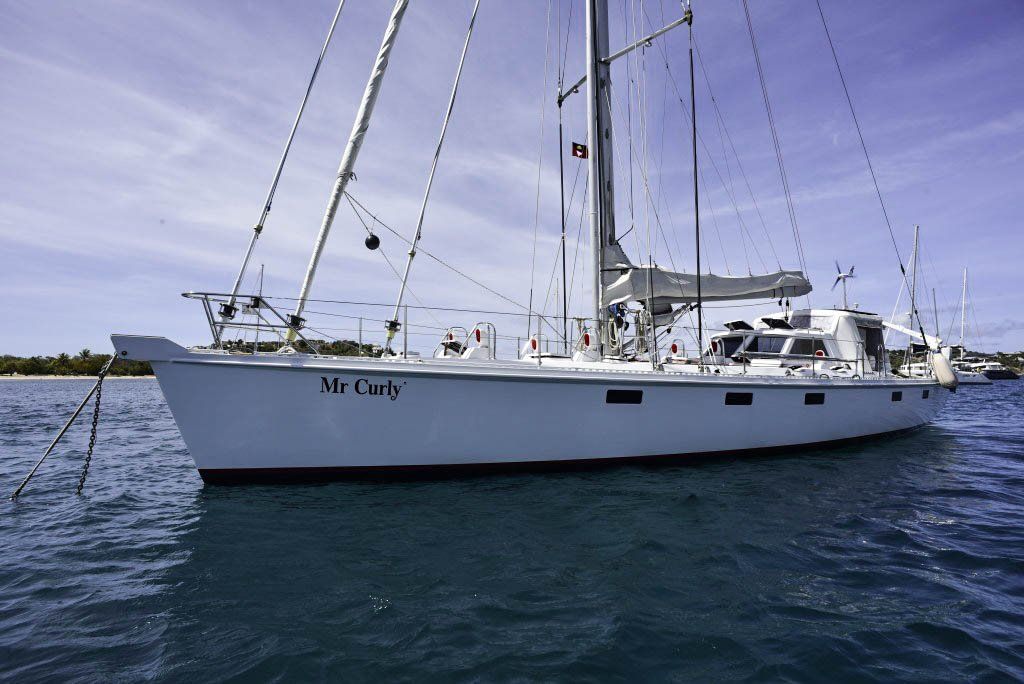

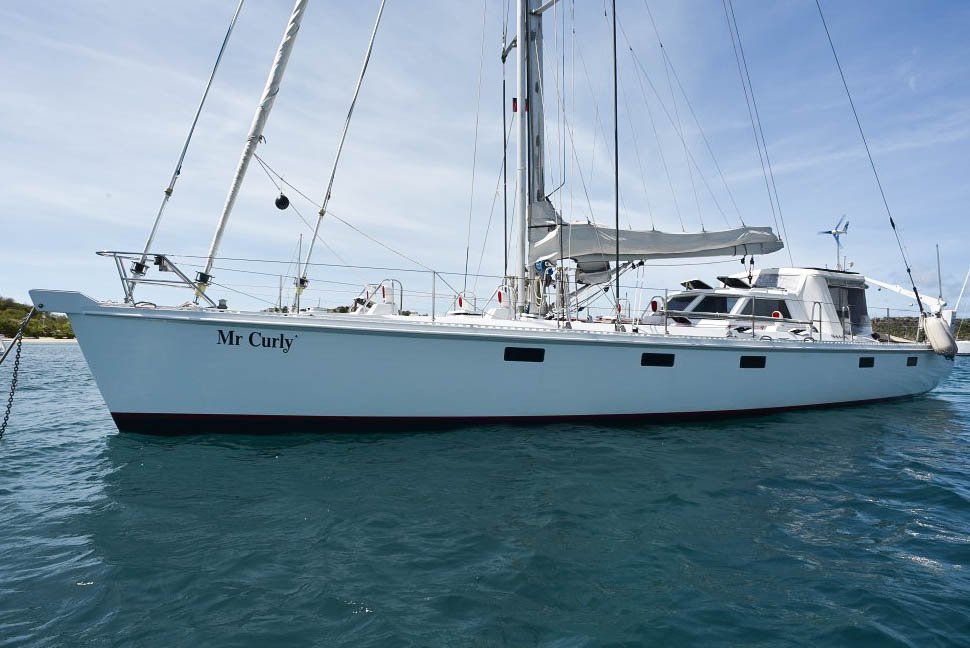

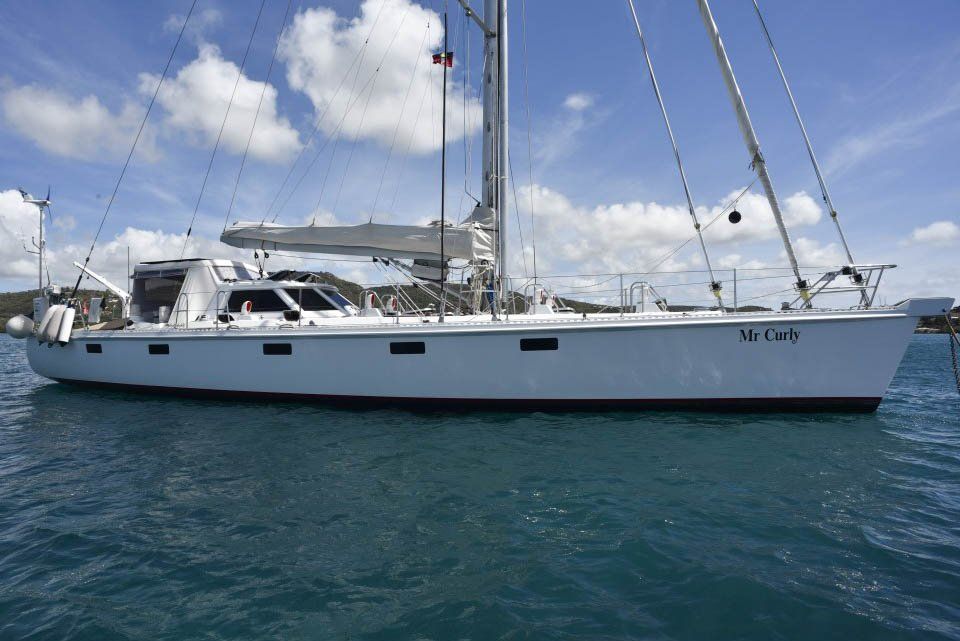

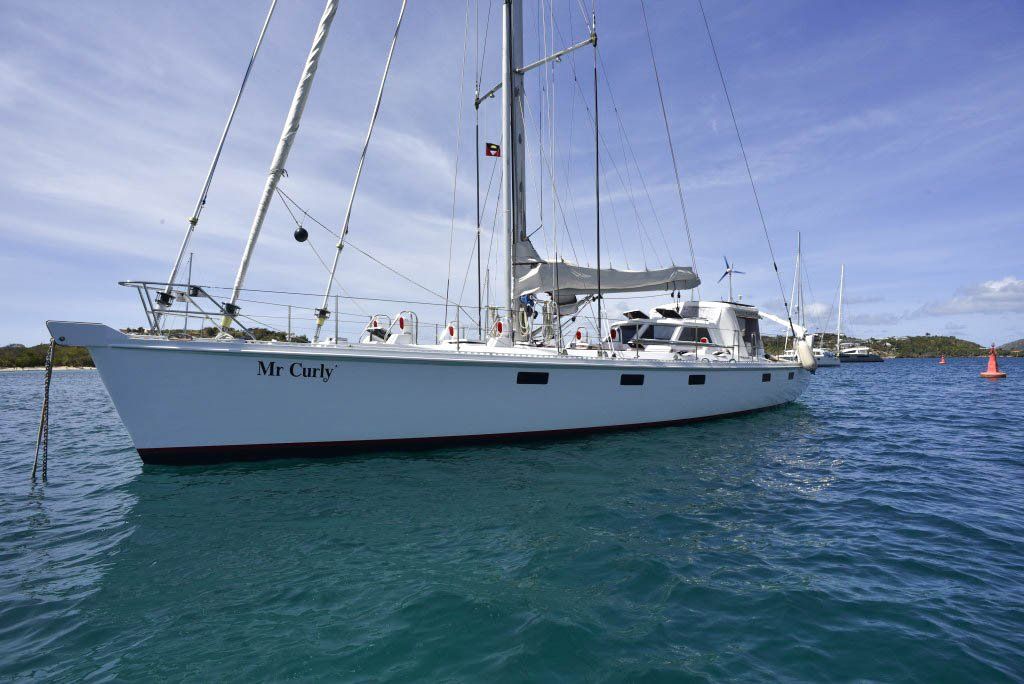

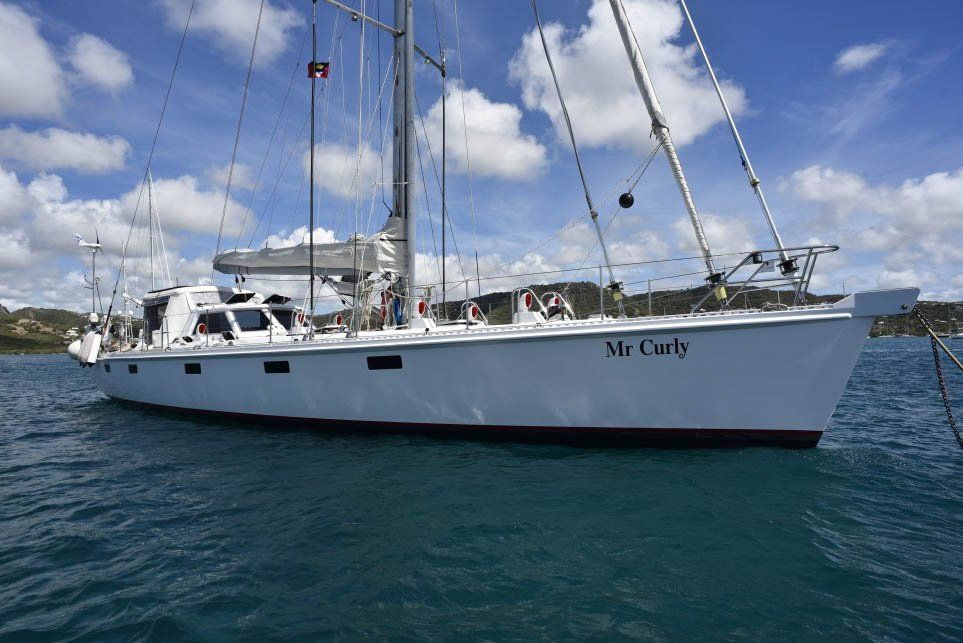

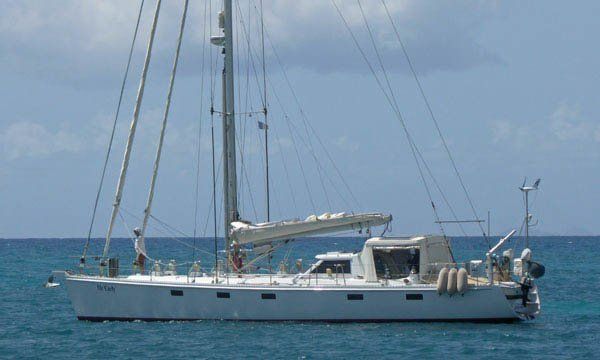

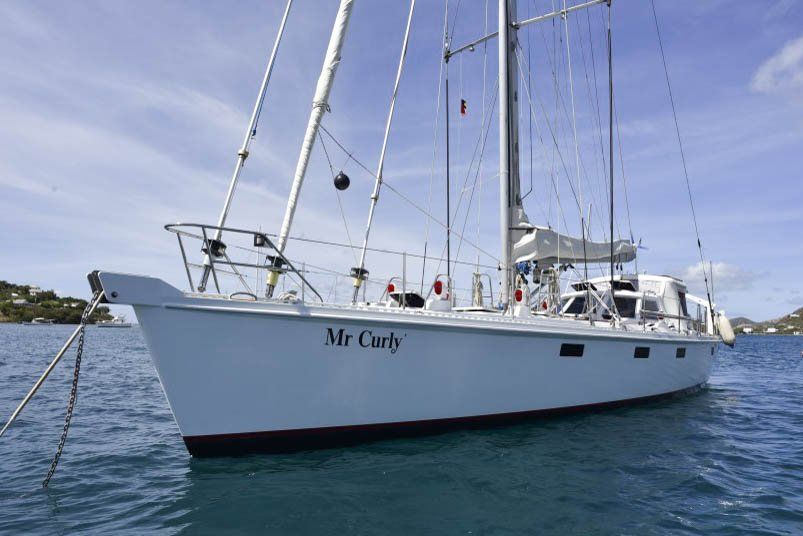

CHUCK PAINE SOUTHERN CROSS 62 - SOLD

Boat Name
Mr Curly

Specs

Builder: Queensland Ships, Brisbane
Designer: Chuck Paine
Flag of Registry: United Kingdom

Dimensions
LOA: 62 ft 0 in
Beam: 15 ft 6 in
LWL: 57 ft 0 in
Maximum Draft: 7 ft 0 in
Displacement: 47500 lbs
Ballast: 15000 lbs

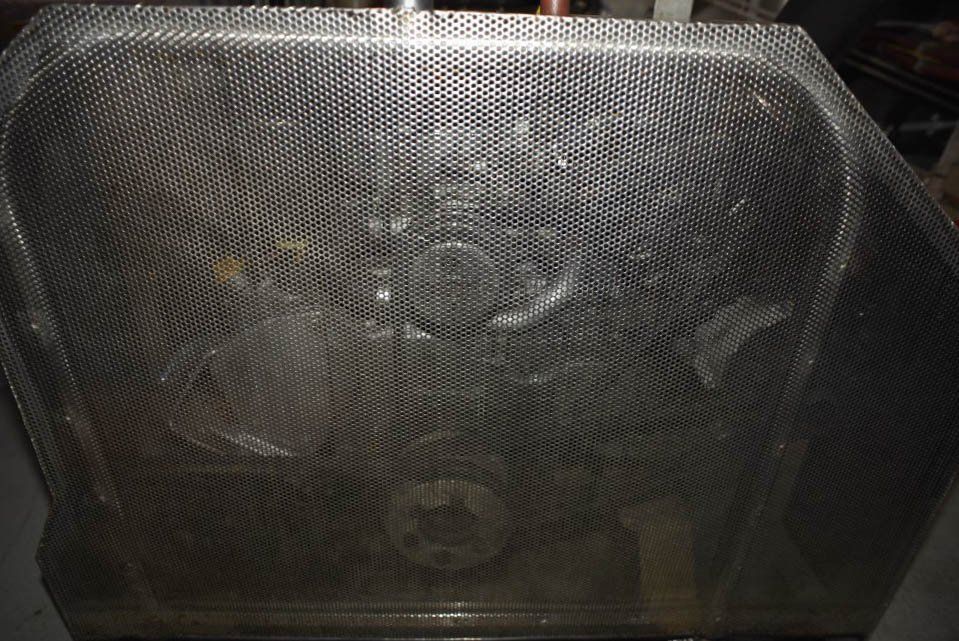

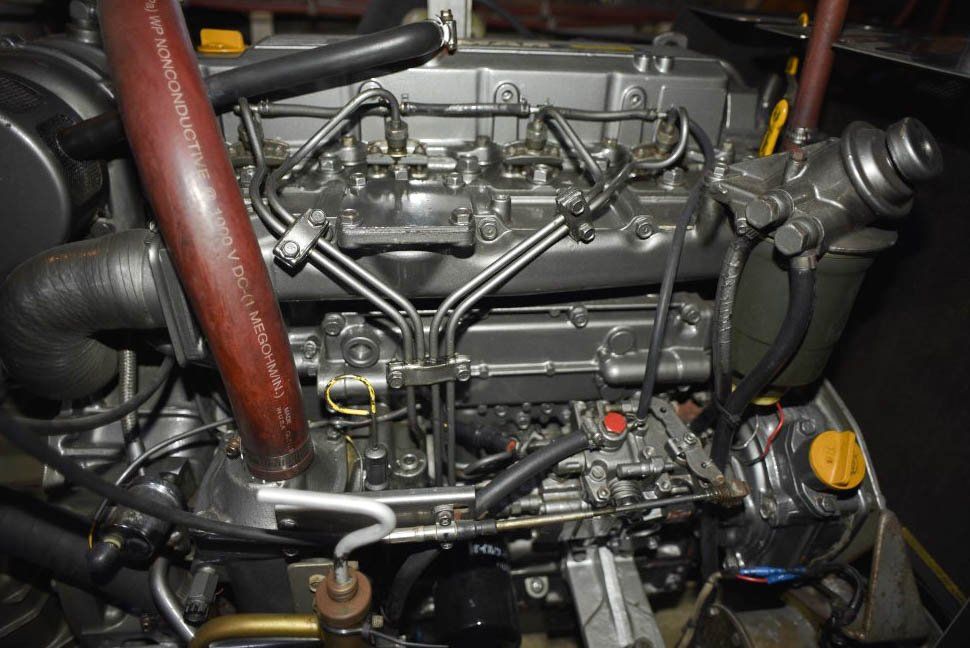

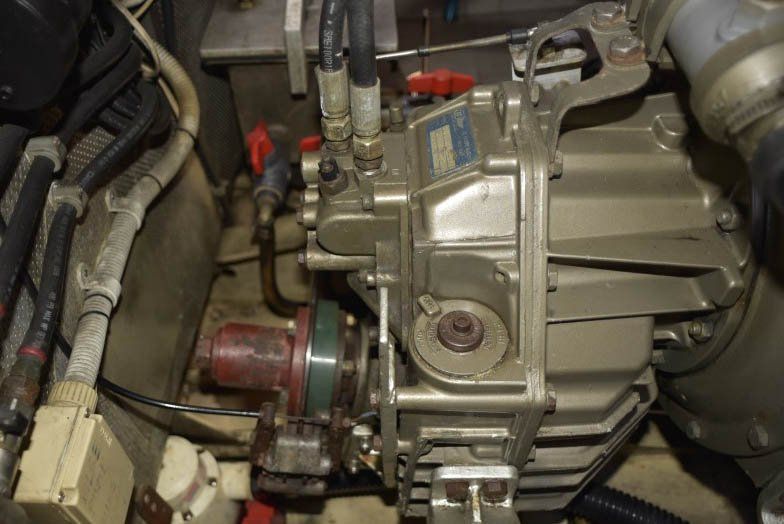

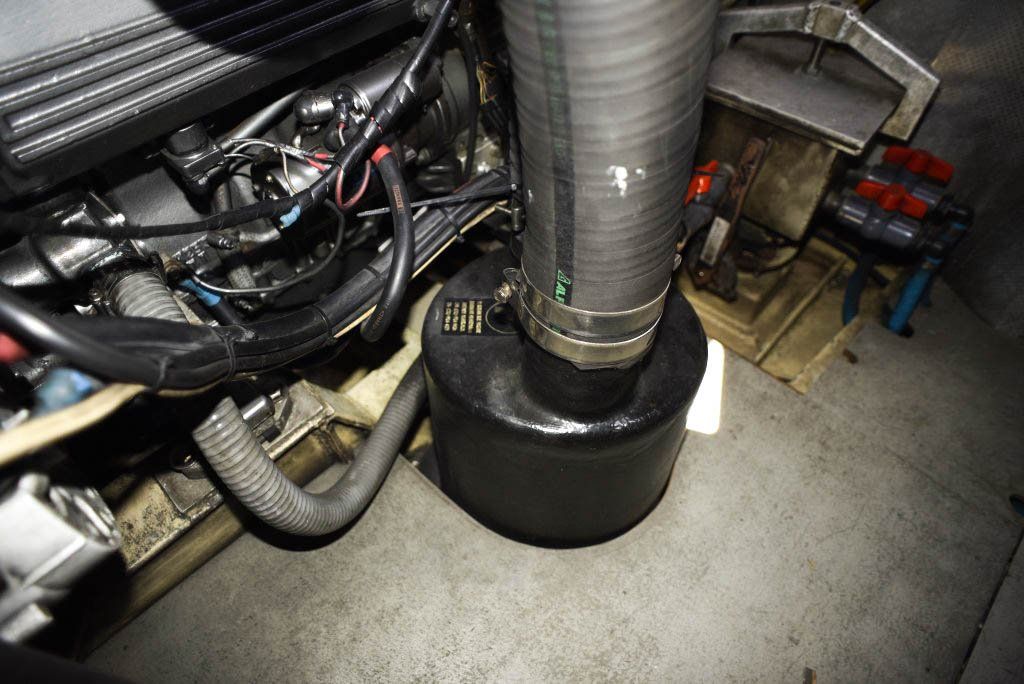

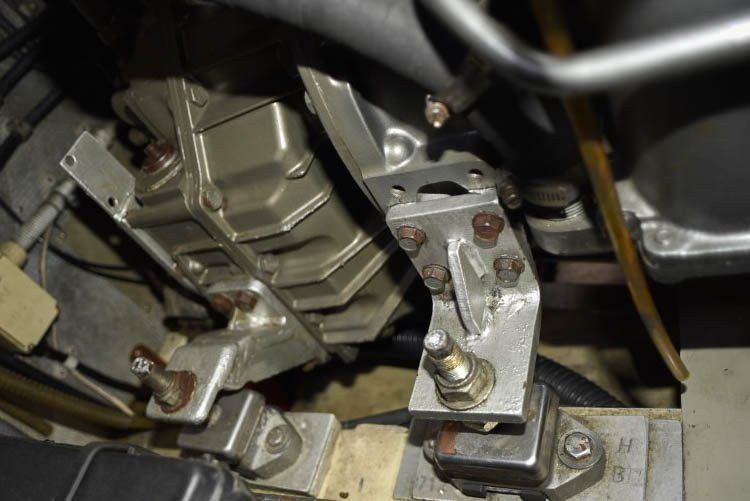

Engines

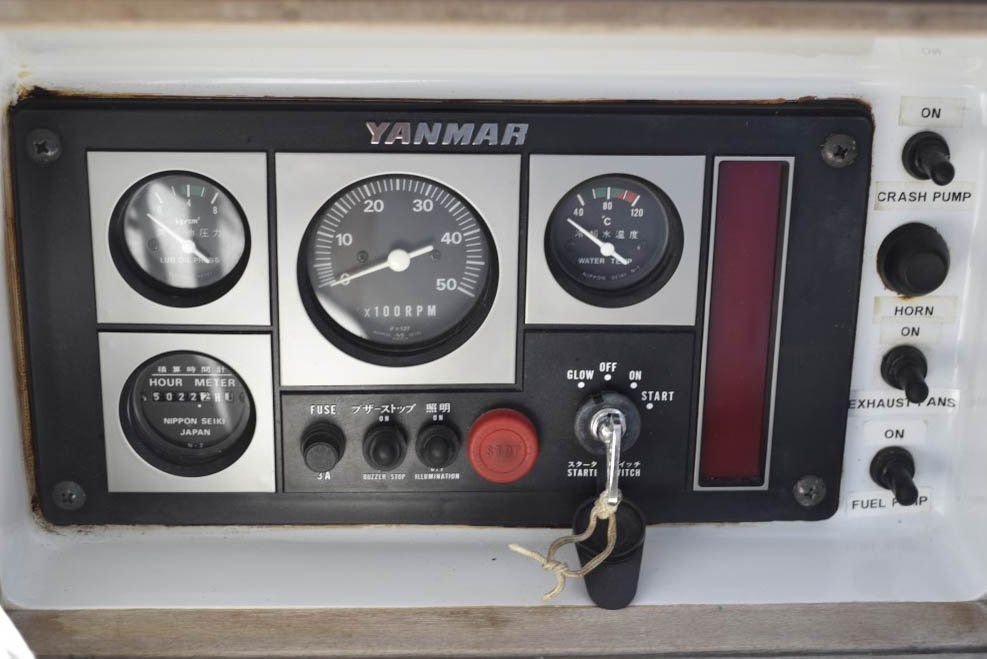

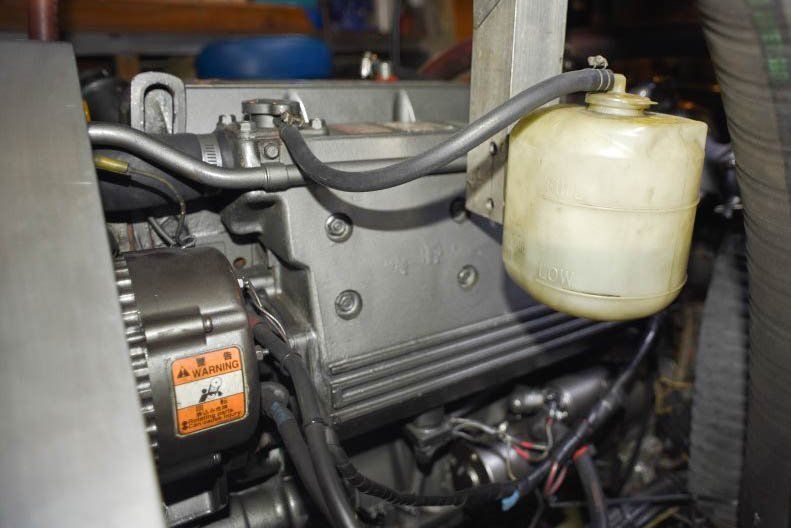

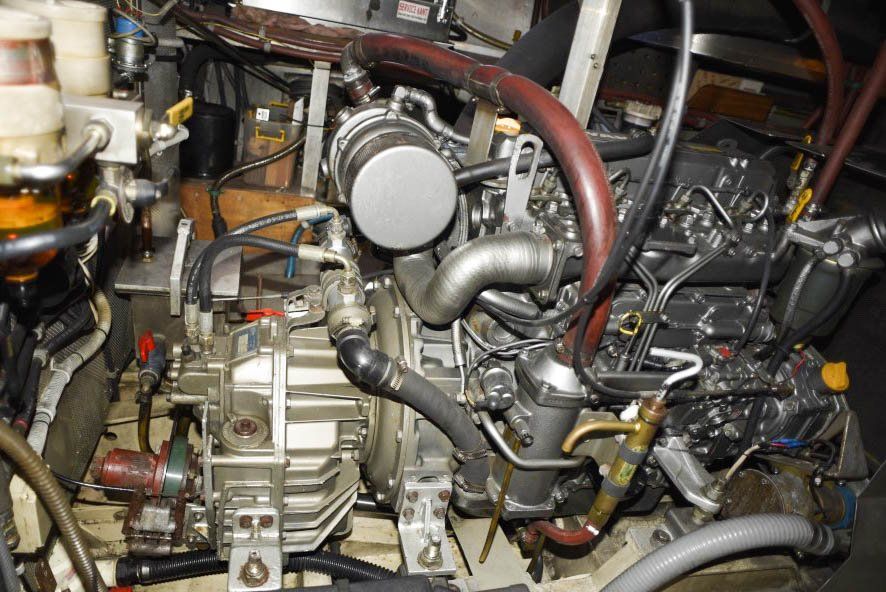

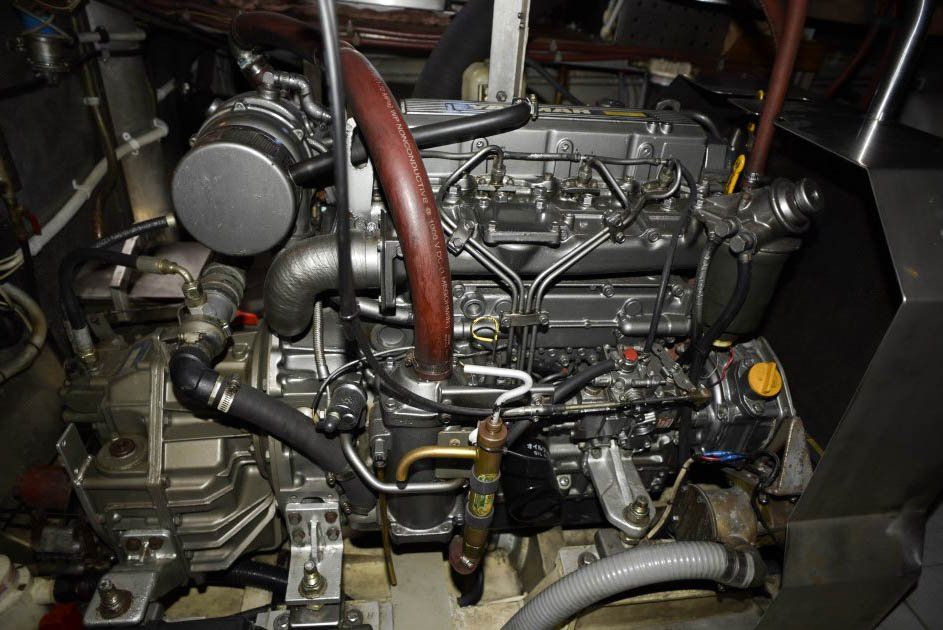

Engine Brand: Yanmar
Year Built: 2000
Engine Model: 4LH-TE
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Centre
Engine Hours: 5022
Drive Type: V Drive
Engine Power: 110 HP

Tanks
Fresh Water Tanks: 2 Aluminium (800 Litres)
Fuel Tanks: 2 Aluminium (650 Litres)
Holding Tanks: 1 Fiberglass (100 Litres)

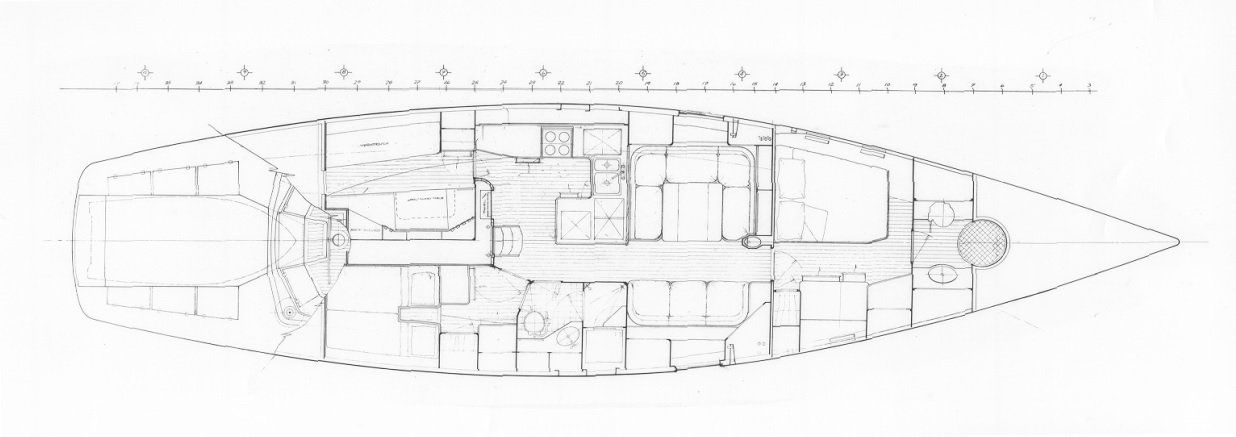

Accommodations
Number of single berths: 1
Number of double berths: 2
Number of cabins: 3
Number of heads: 2

Electrical Equipment
Electrical Circuit: 240V

Accommodations
The interior is beautifully finished in European Beech with Australian Beech floors. All joinery has been crafted with a balsa core for weight reduction

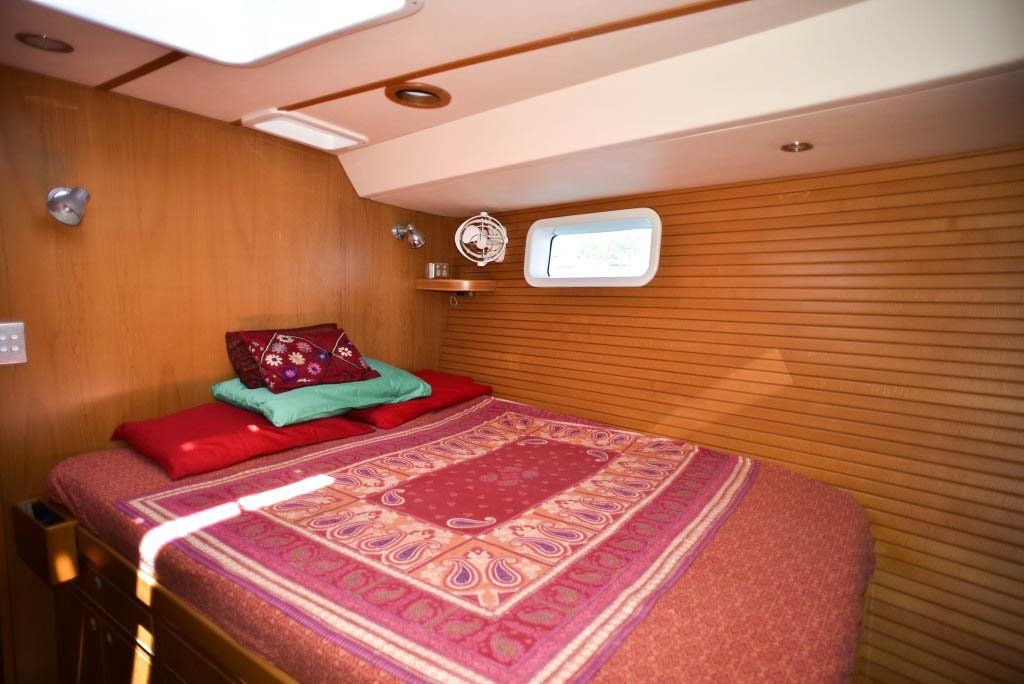

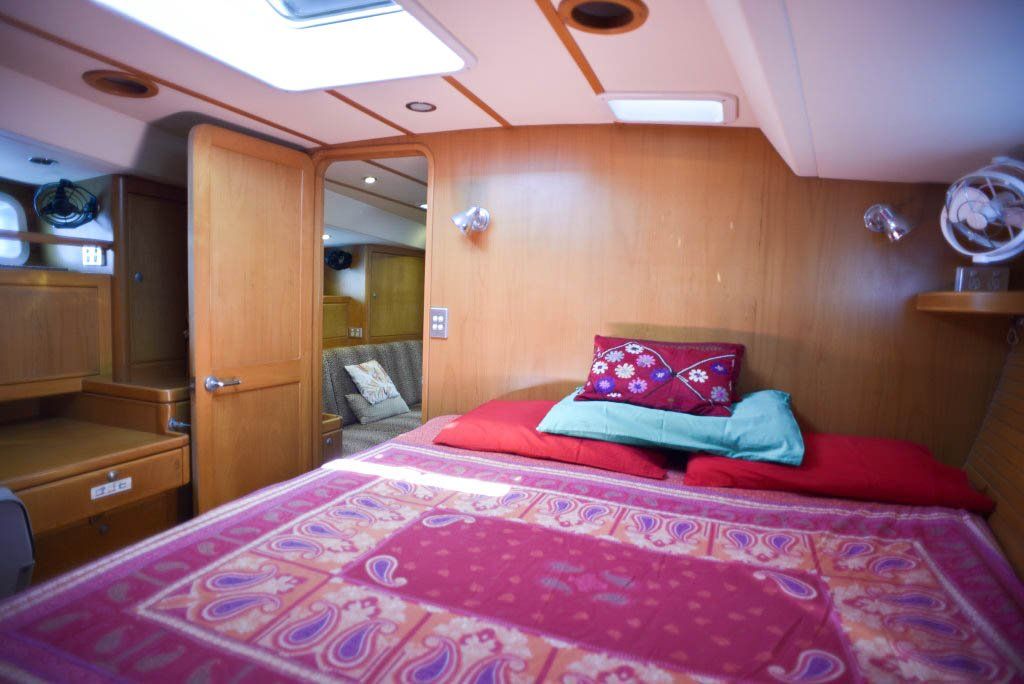

Master suite

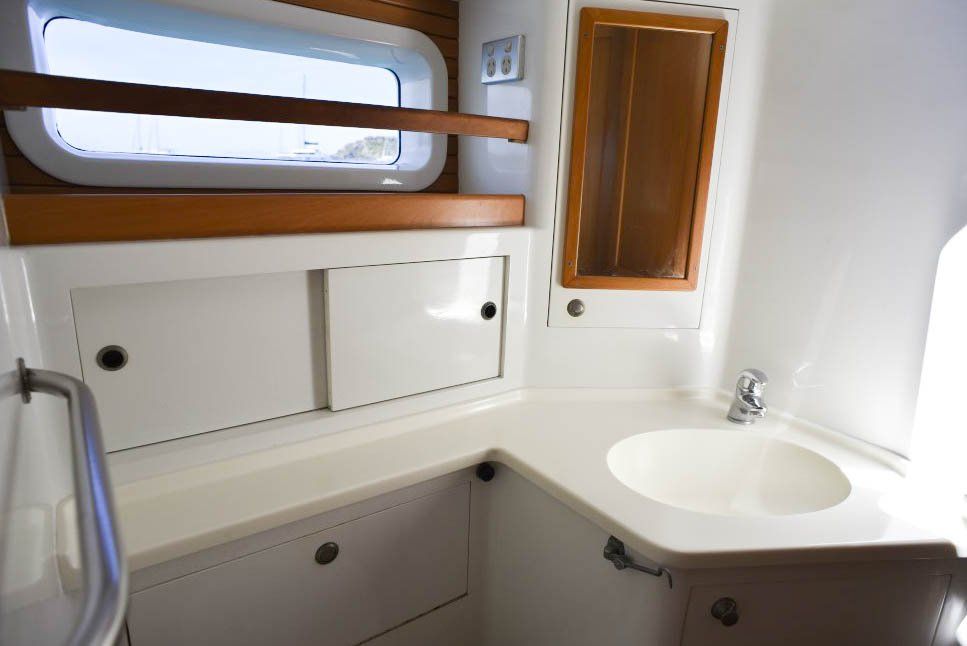

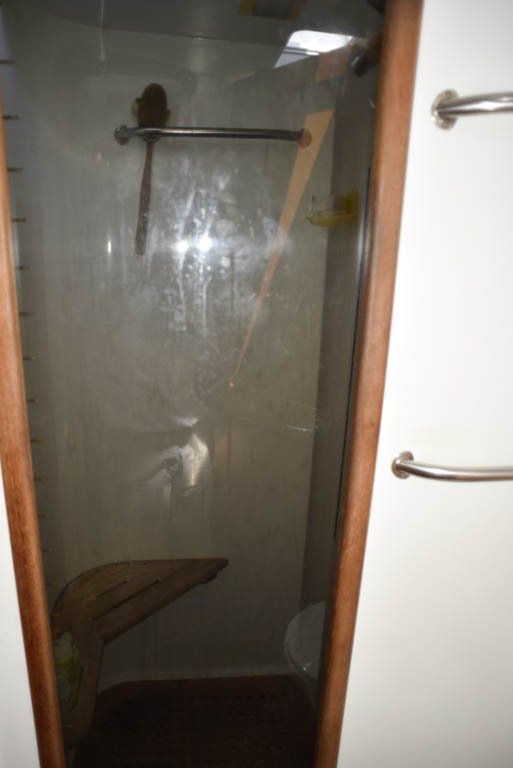

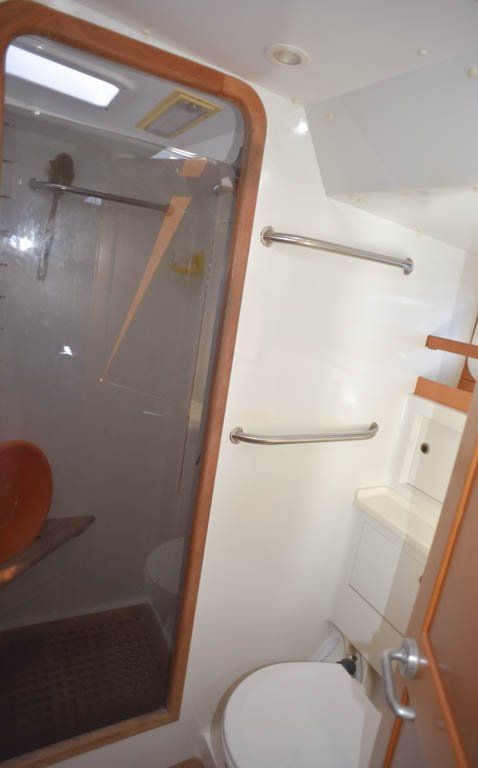

The master suite is a queen pullman style forward cabin with en-suite head and separate shower.

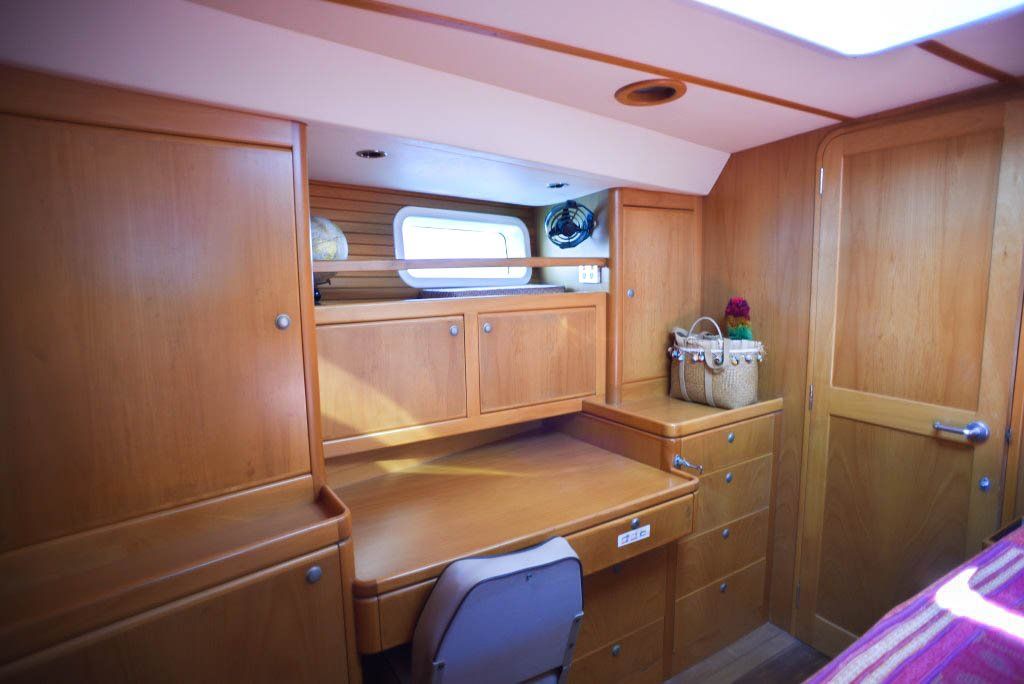

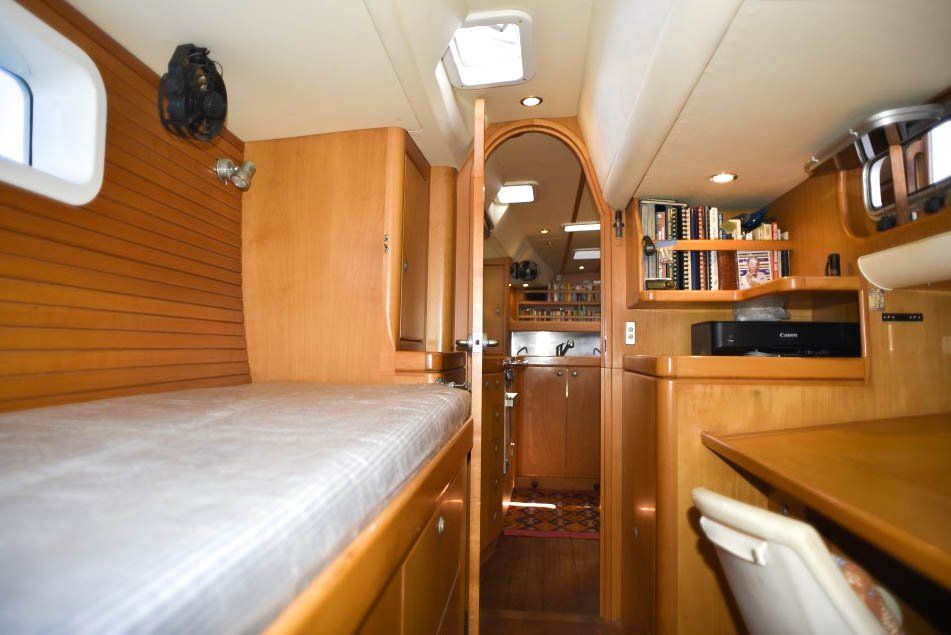

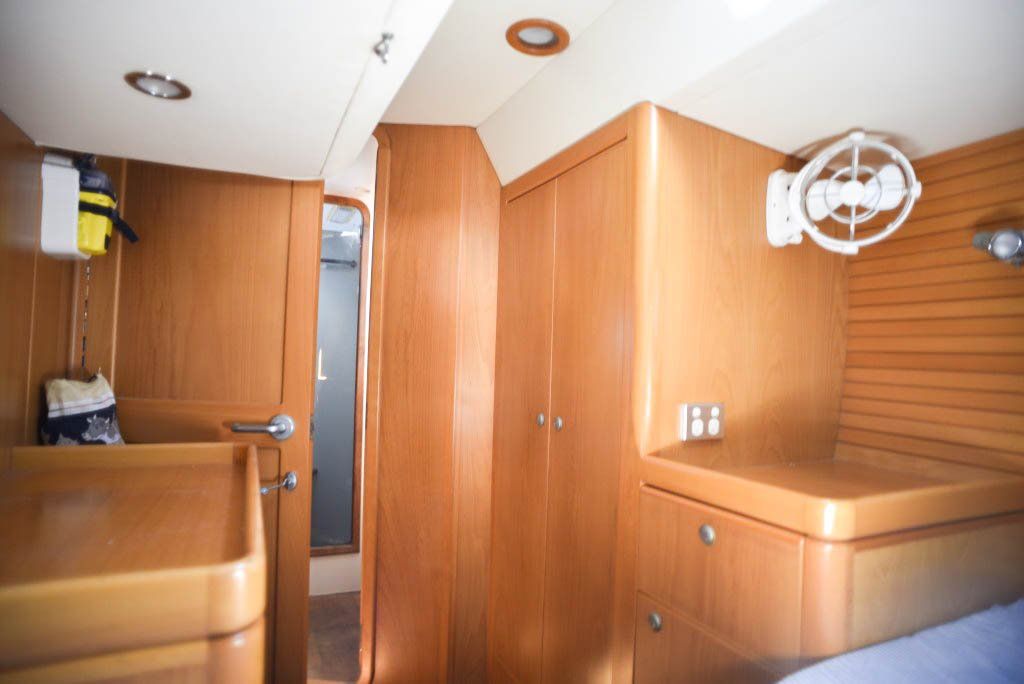

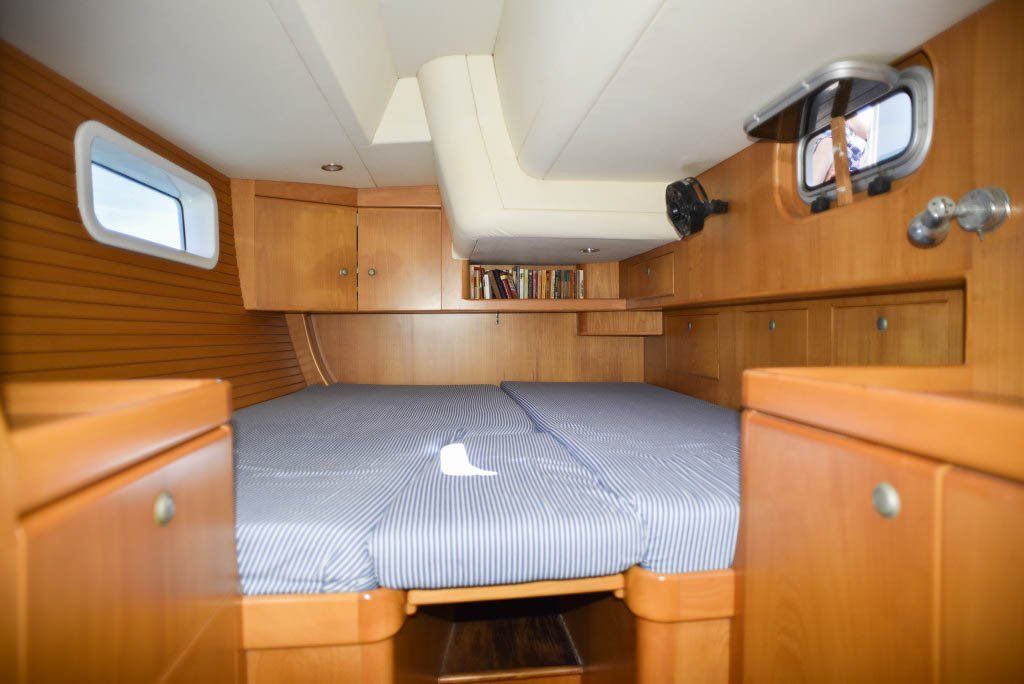

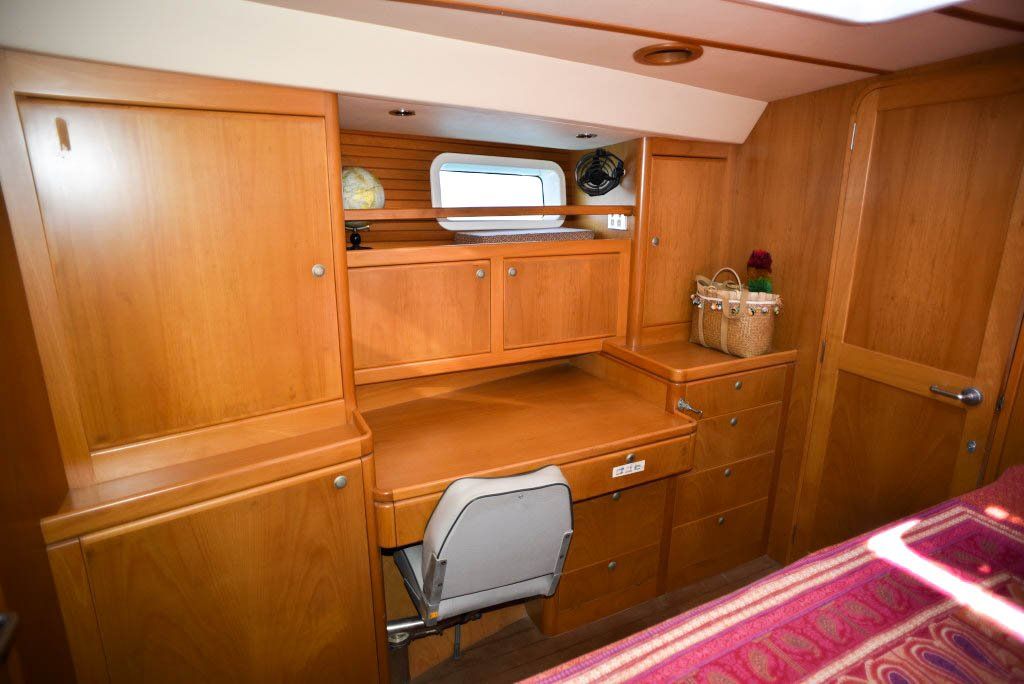

Aft cabins

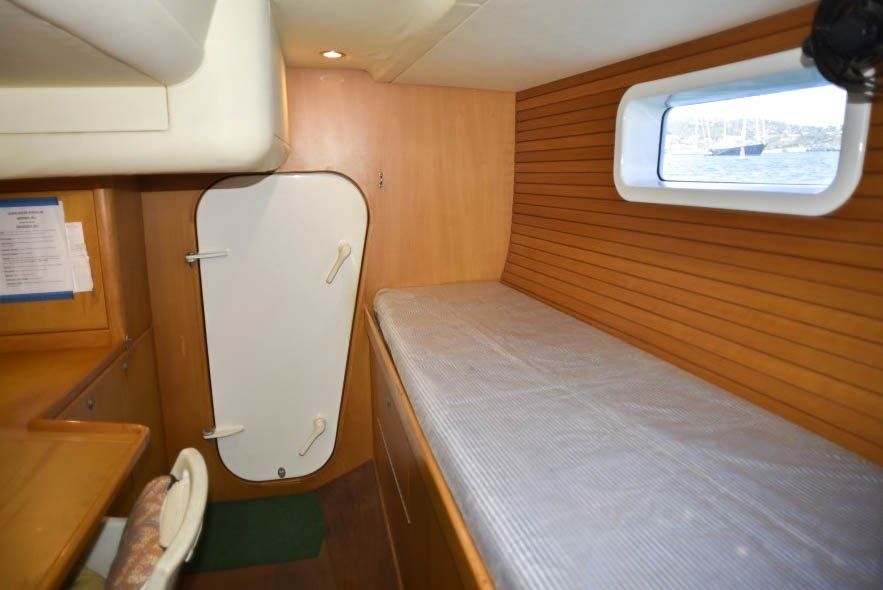

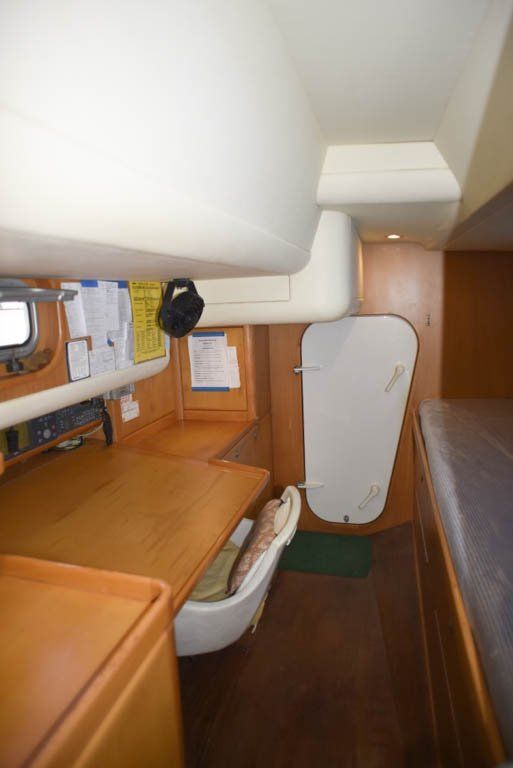

To port there is a single bed pilot cabin

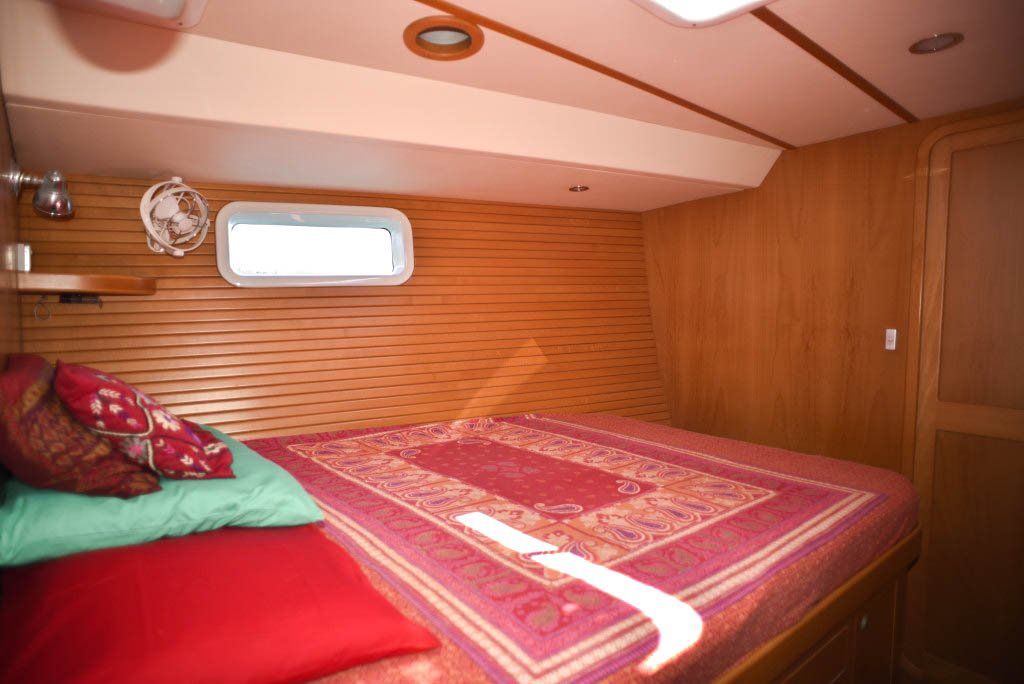

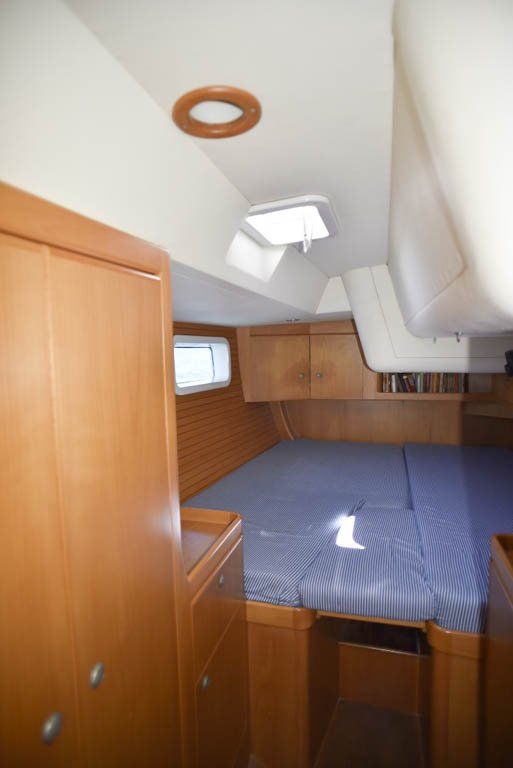

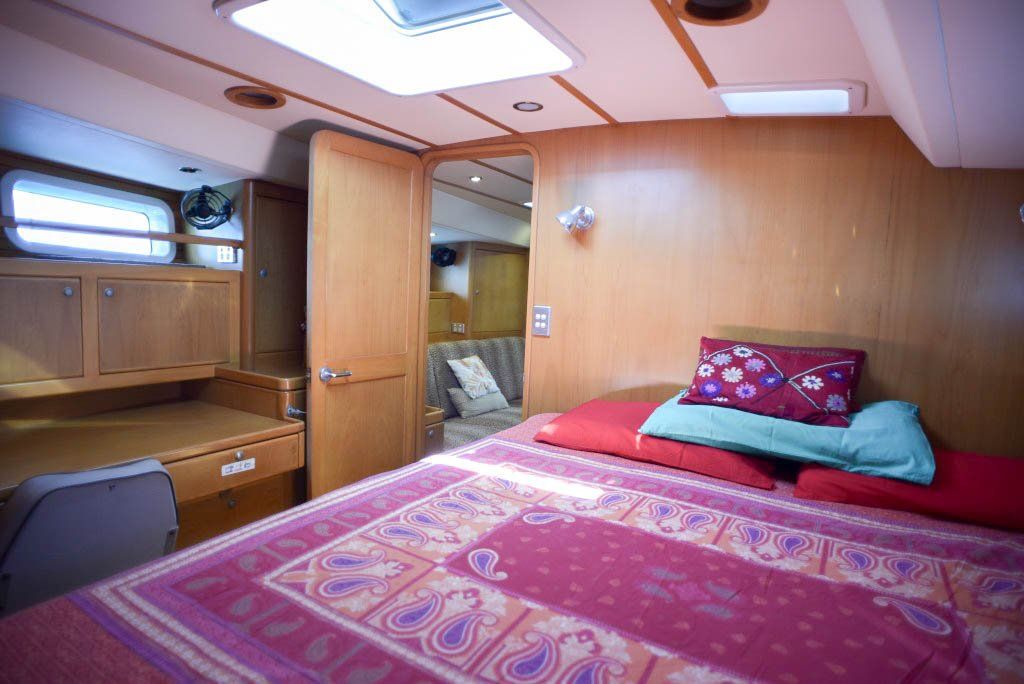

To starboard there is a double cabin with queen size bed that can convert to 2 single beds that also boasts an en-suite head.

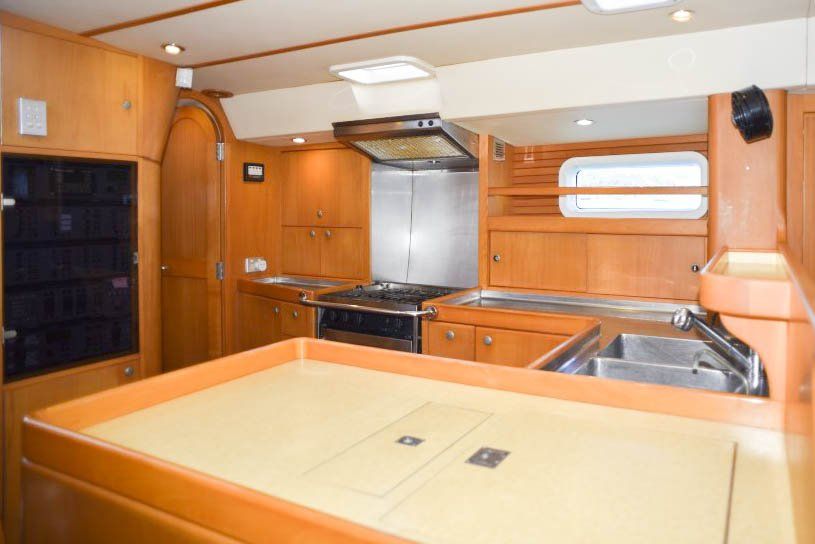

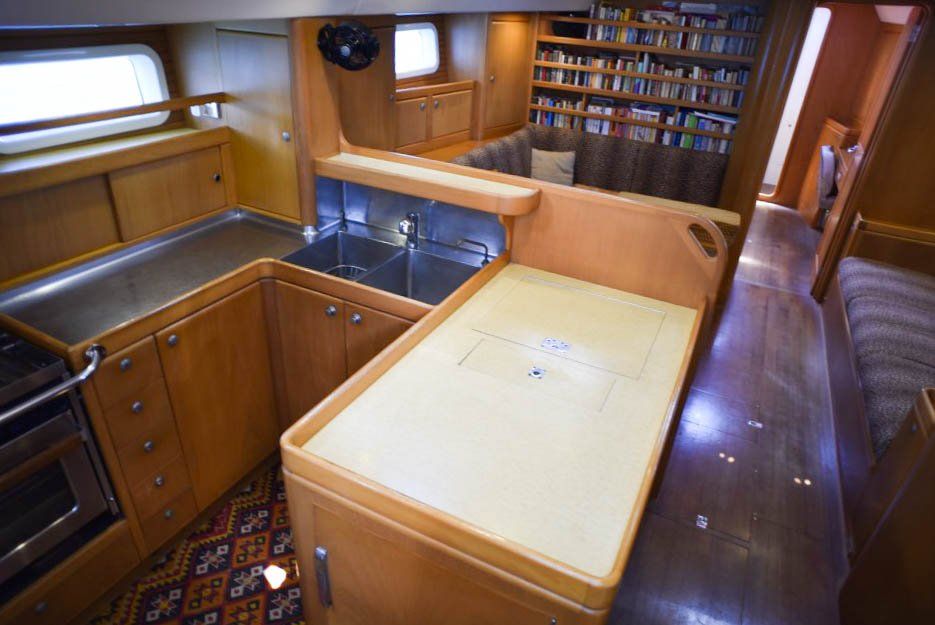

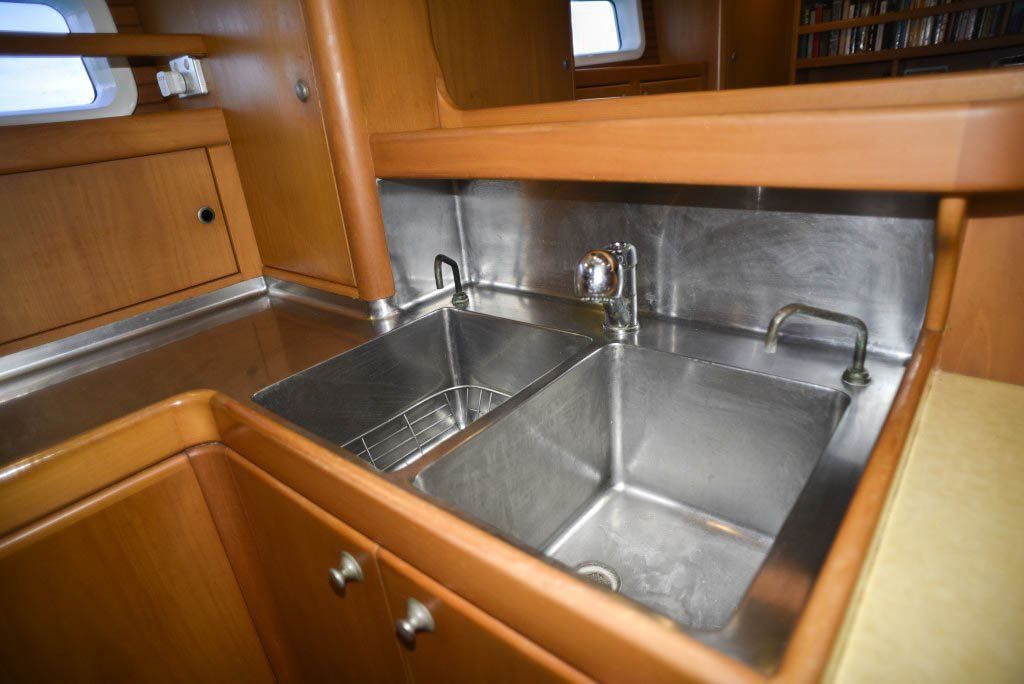

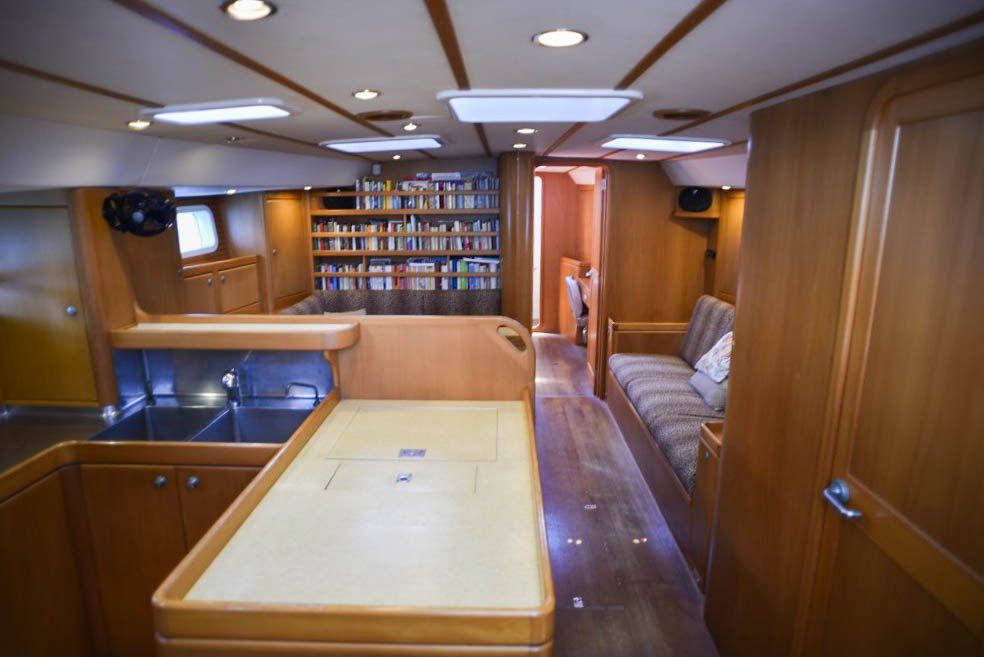

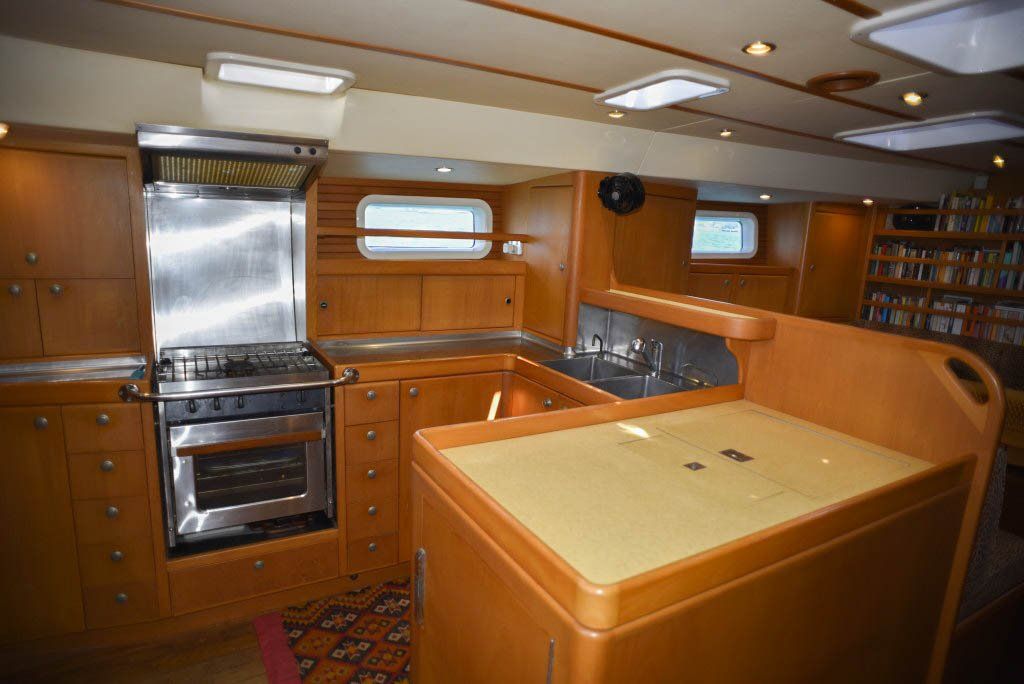

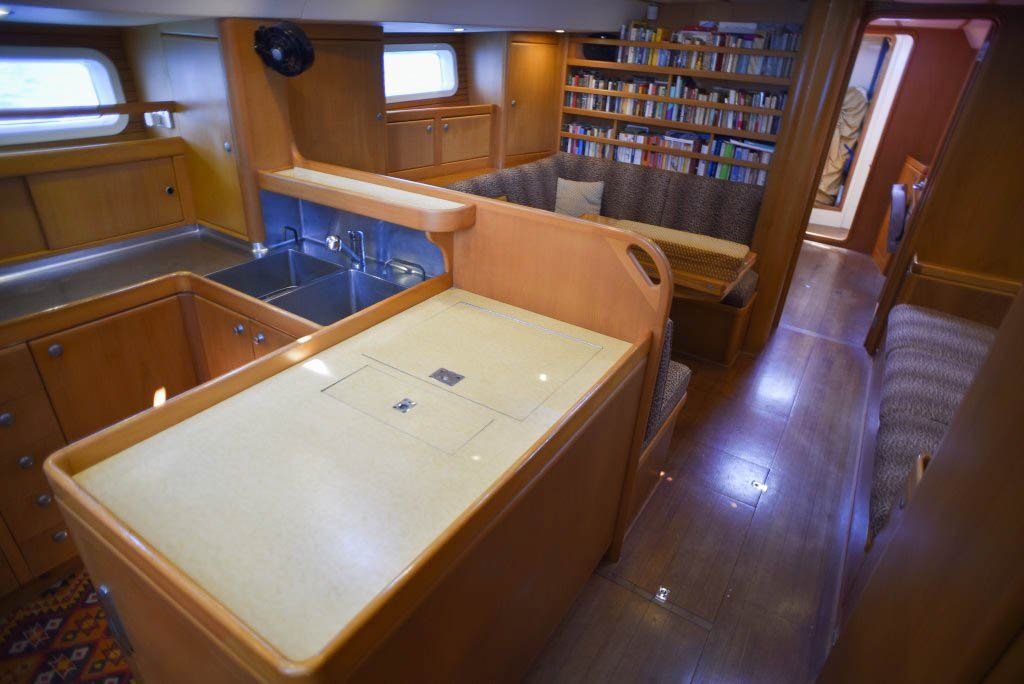

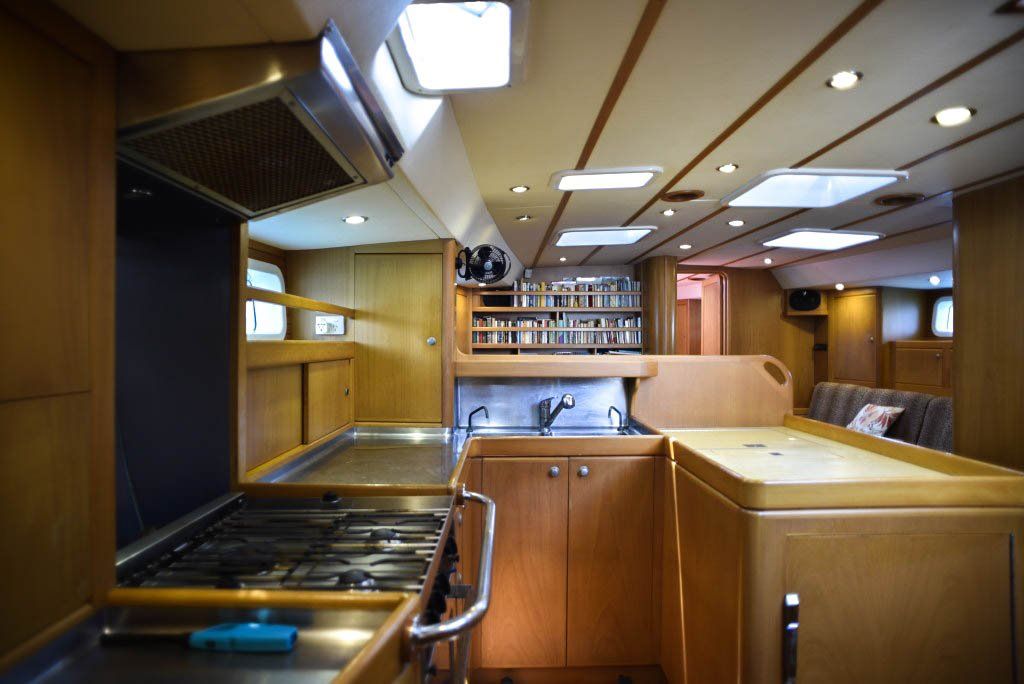

Galley

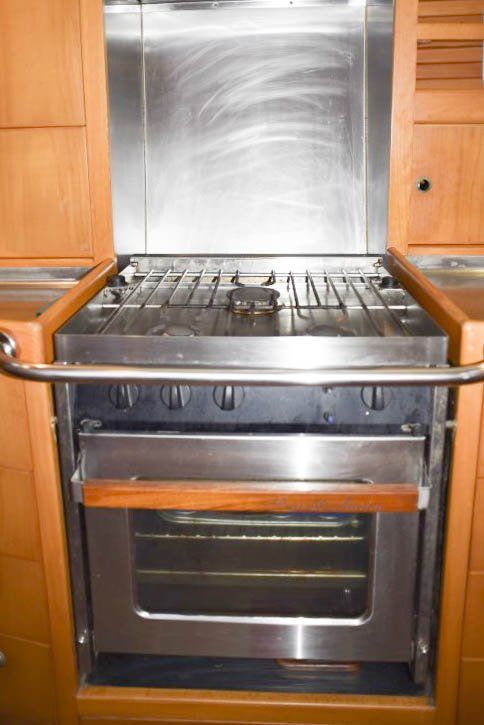

The well equipped u-shaped galley is immediately to port at the bottom of the companion way. Generous storage in multiple cabinets and drawers. Custom all-in-one moulded sink and draining rack and counter space. Large front opening fridge with separate freezer. There is a three burner hob and oven with extractor hood above. The galley is fully equipped and ready to leave the dock for instant live aboard and offshore cruising.

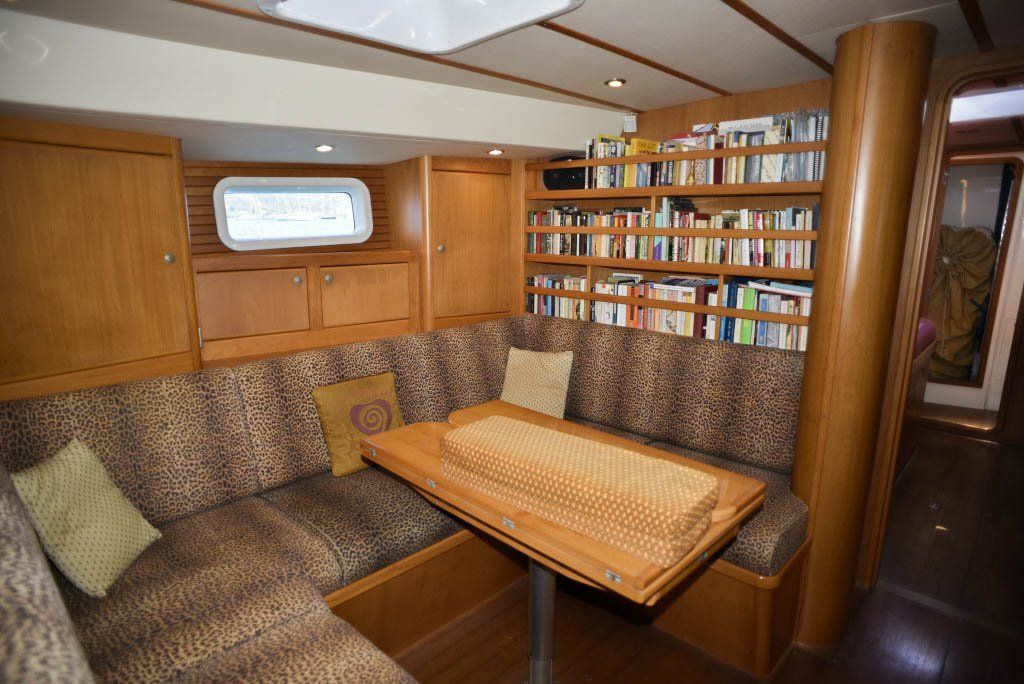

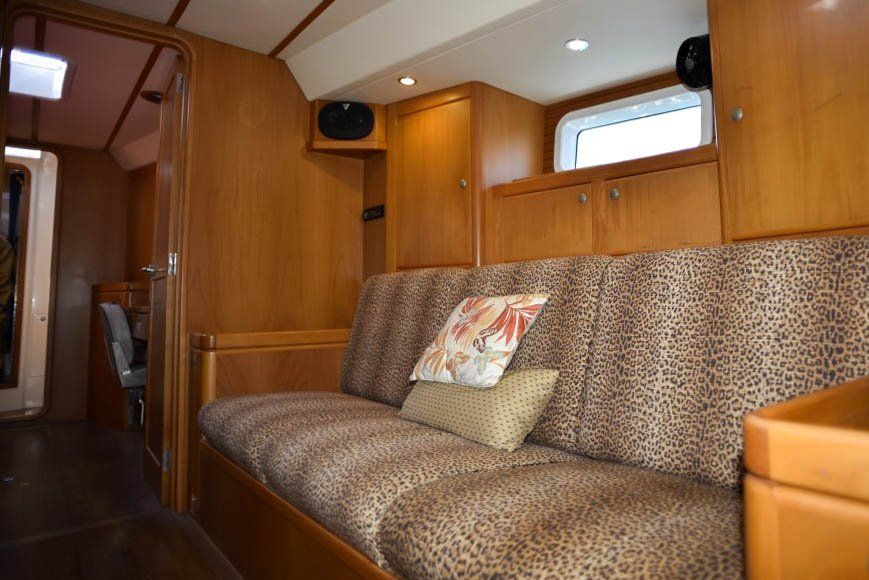

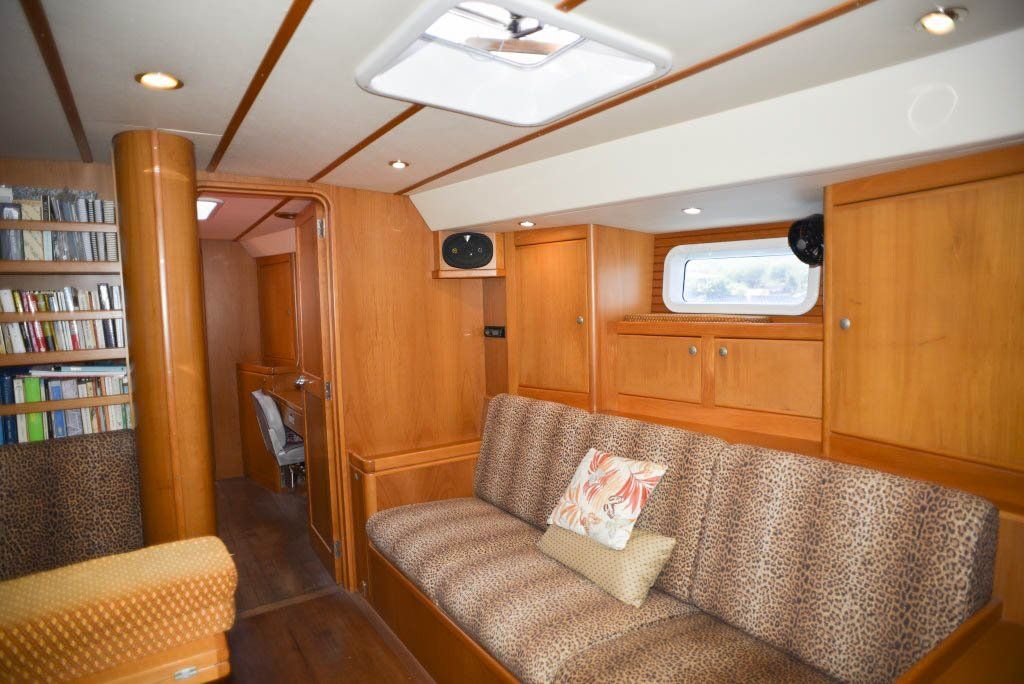

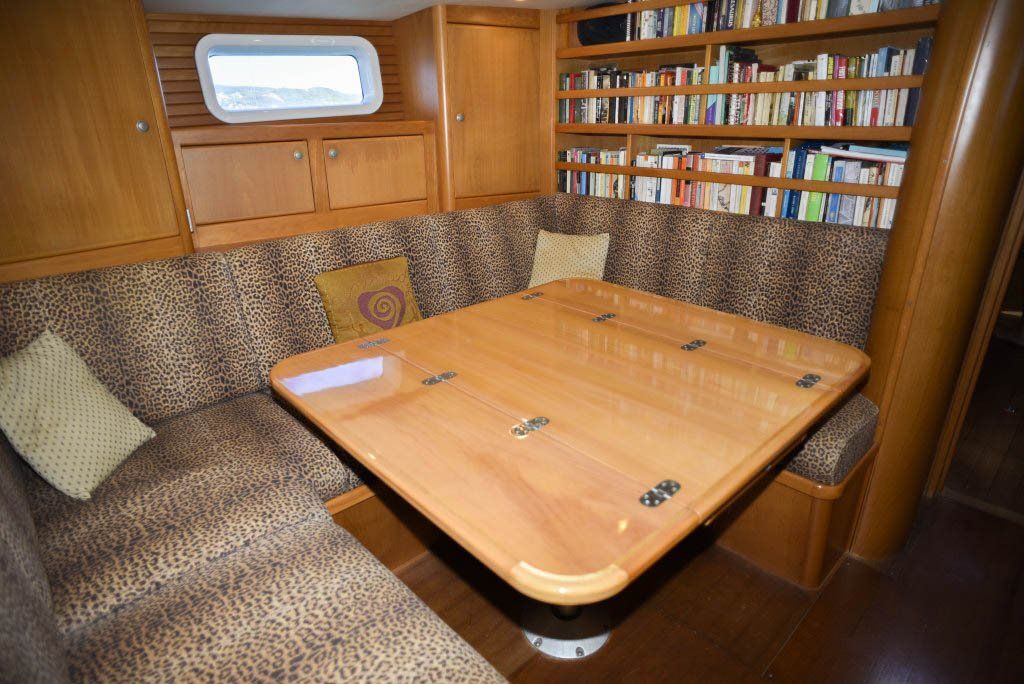

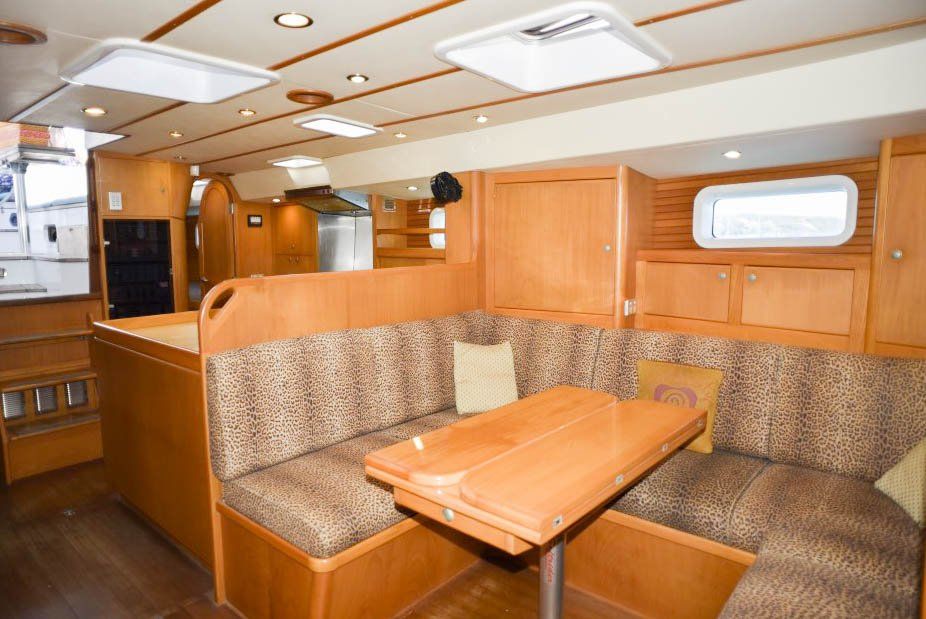

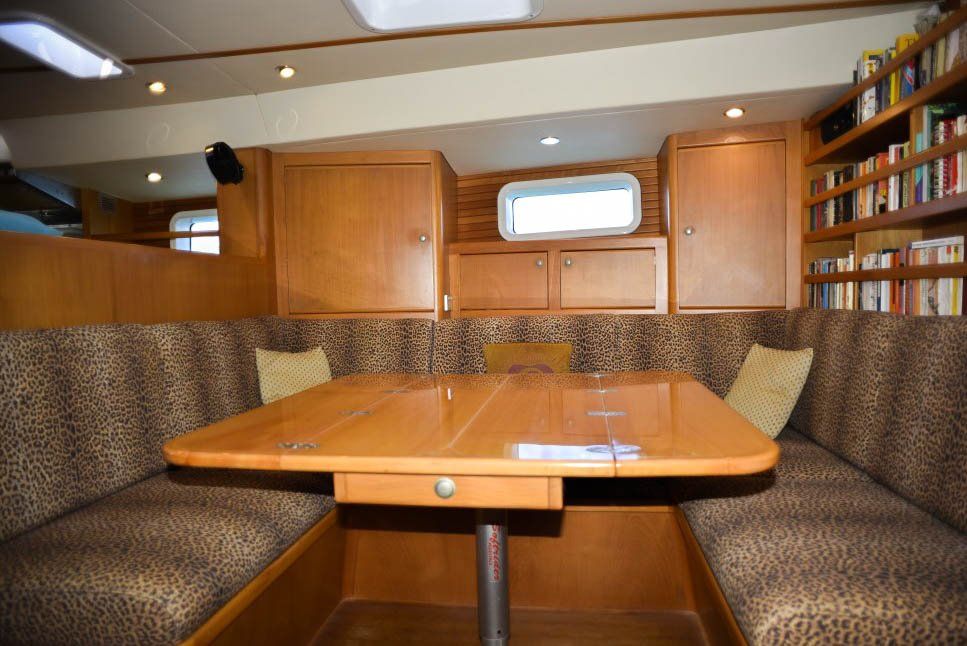

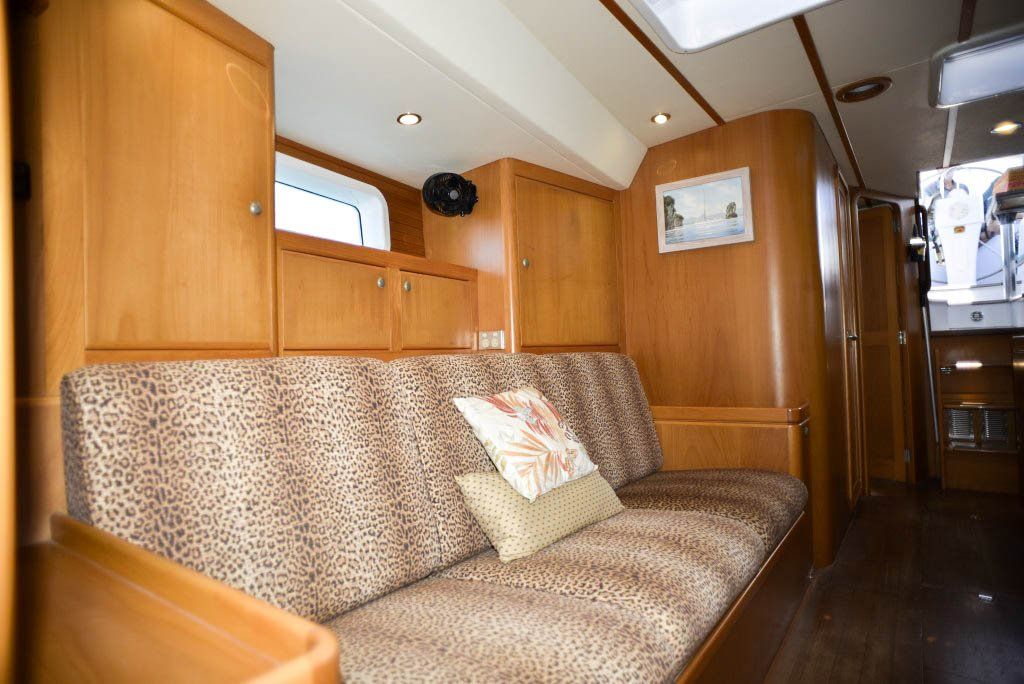

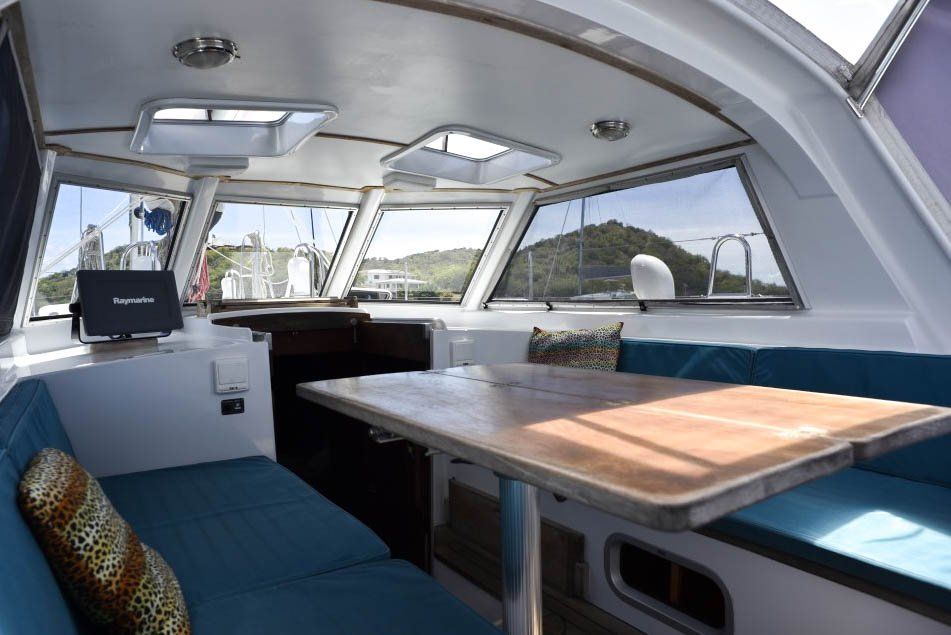

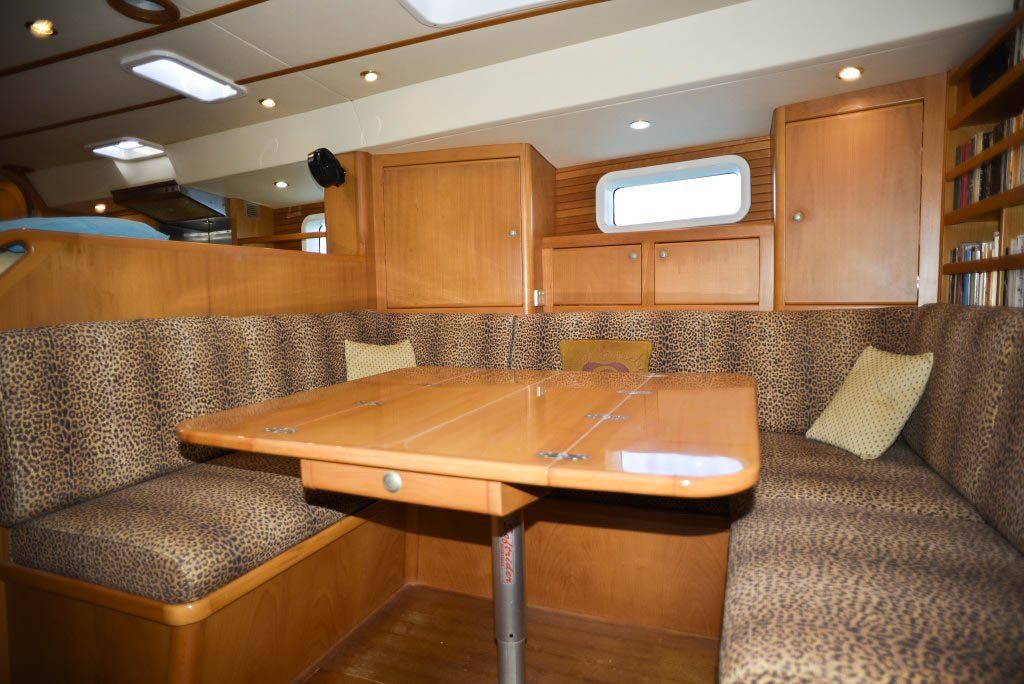

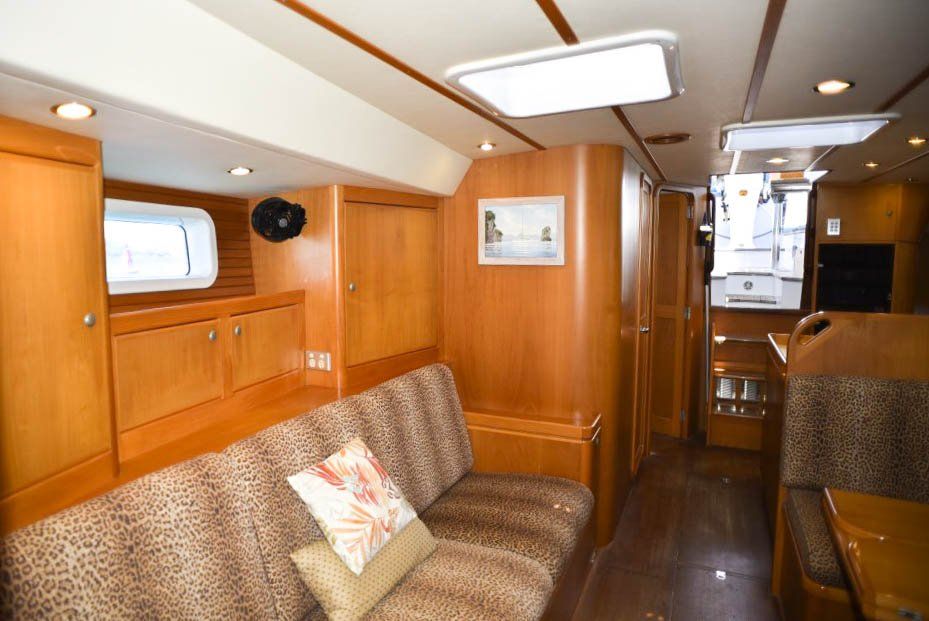

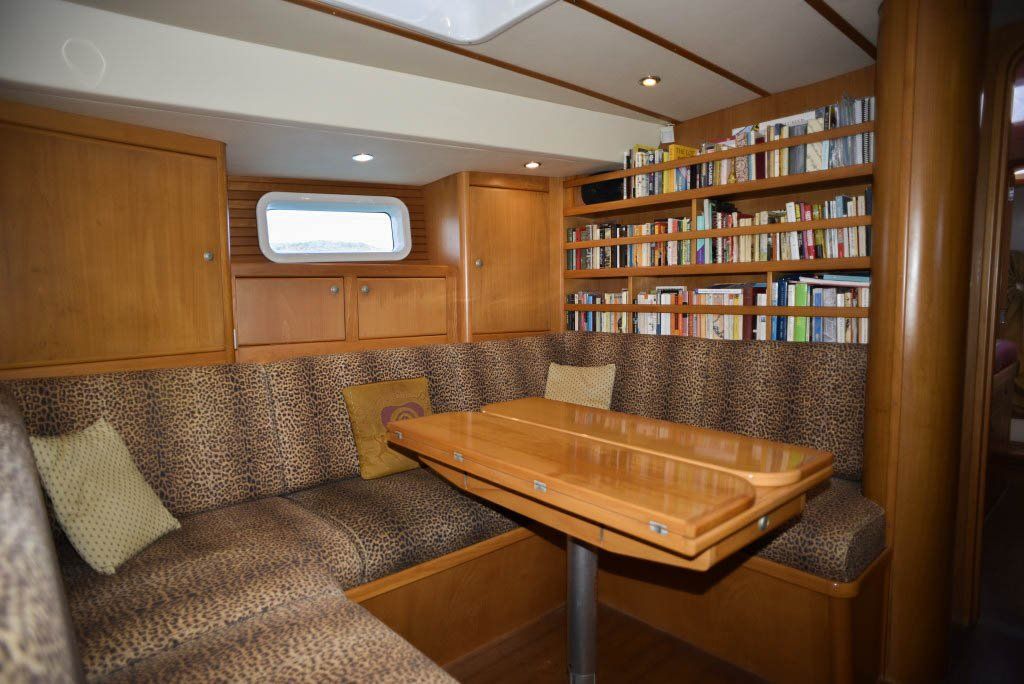

Saloon

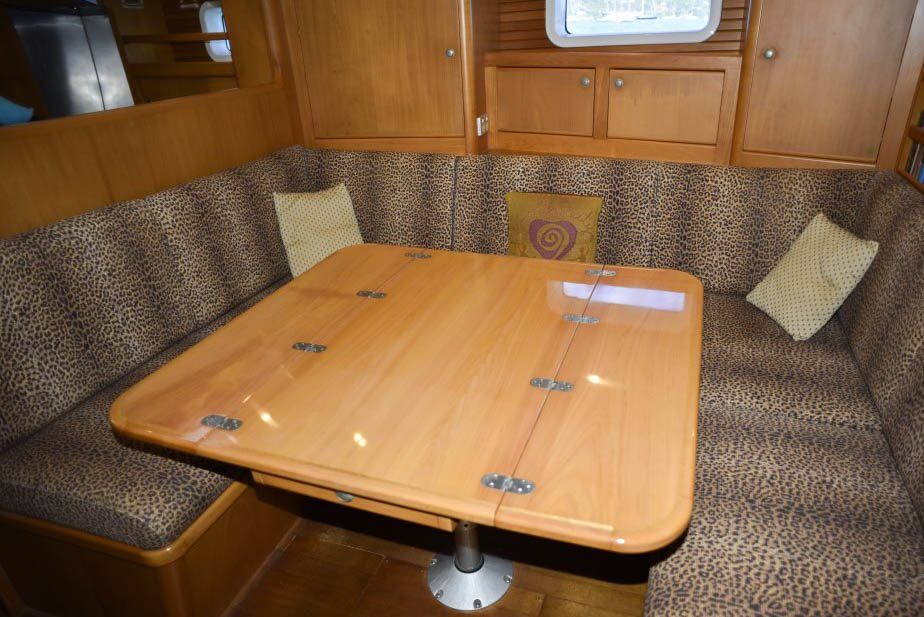

The saloon is well-ventilated and extremely light and bright. Ample storage can be found under the seats and in the cabinets above. The folding table is constructed from European Beech with a beautiful Silver Ash inlay.

Inside Equipment

• Danfoss DB 35 24V refrigerator - freshwater cooled in custom cabinet with 3 front opening doors
• Danfoss DB 50 24V salt water cooled in custom top opening cabinet with cold plate on 4 sides

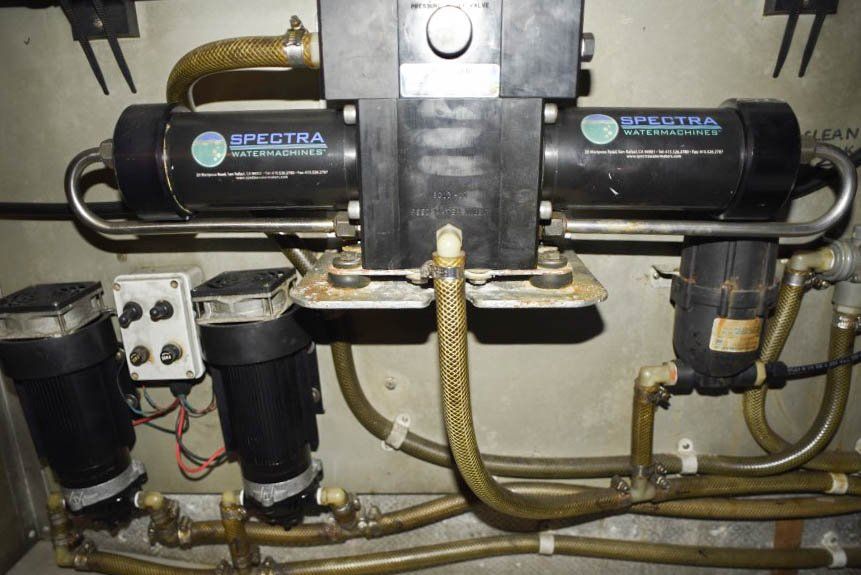

• Spectra 380 watermaker - 54 Litres per hour
• Electric Jabsco toilets x 2
• Interior has a combination of LED and fluorescent lighting

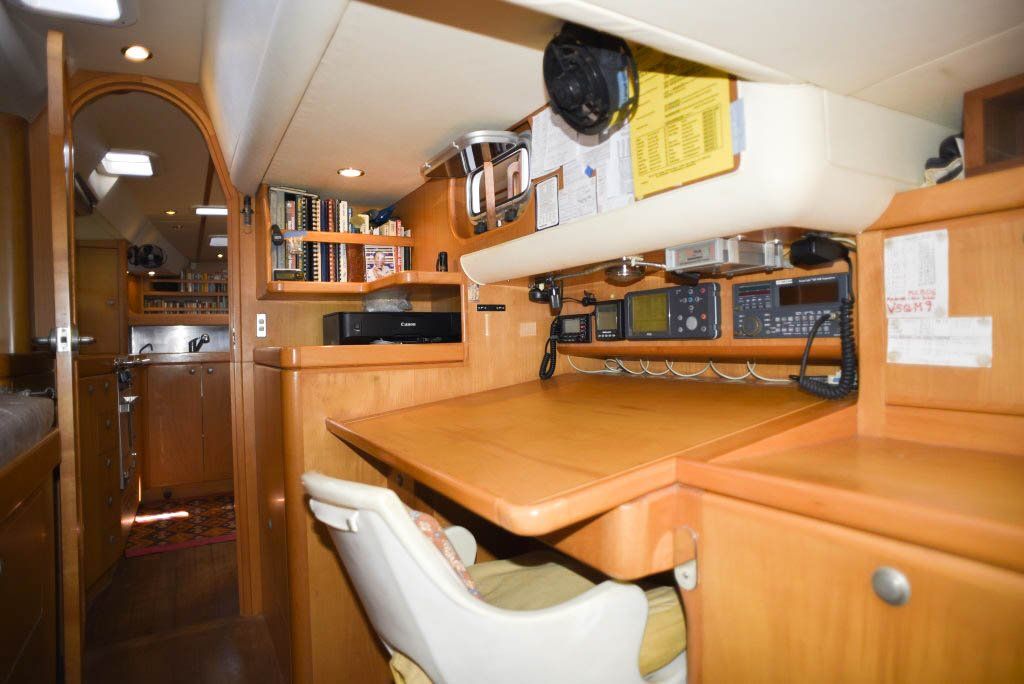

Electronics

• Cetrek 2900 Multi depth, speed and wind instruments
• Cetrek Autronics digital yacht wind 100 transducer

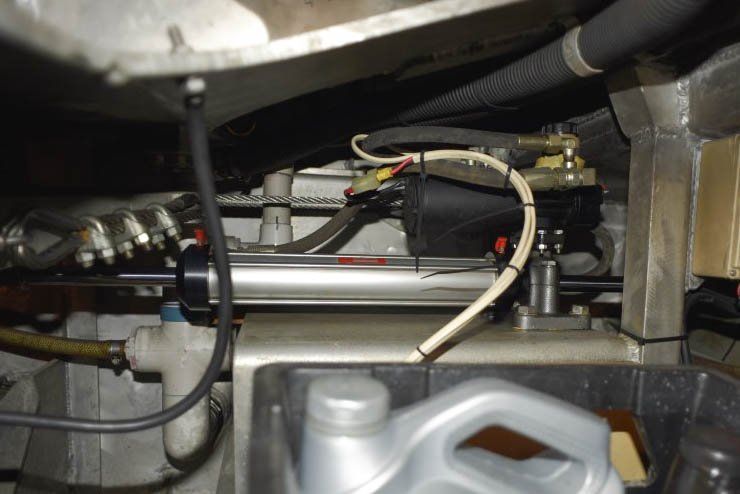

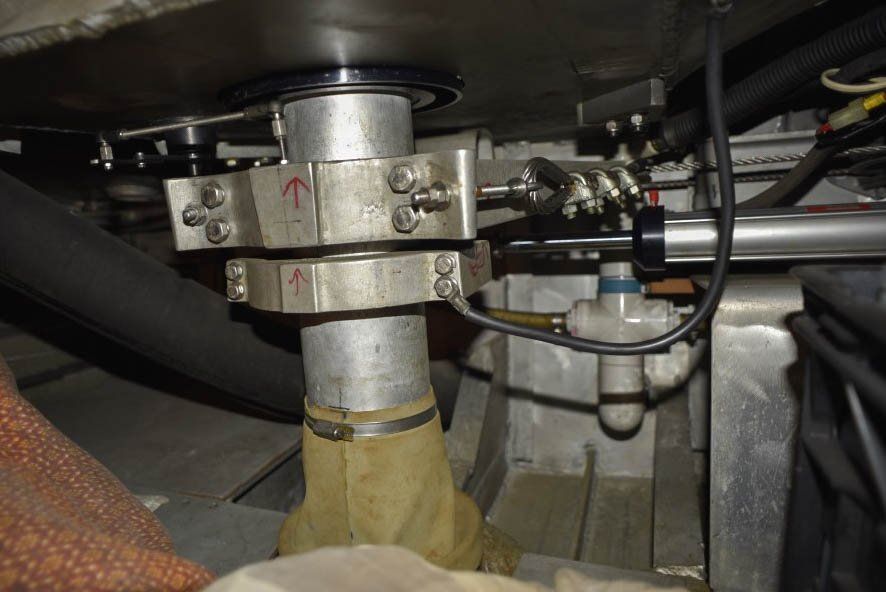

• Cetrek 730 autopilot - computer 619 with Lecomble & Schmitt electro hydraulic ram
• Raymarine HD digital radar - 48 mile range
• Raymarine C120 chart plotter
• Cetrek Chartnav 340 fixed GPS

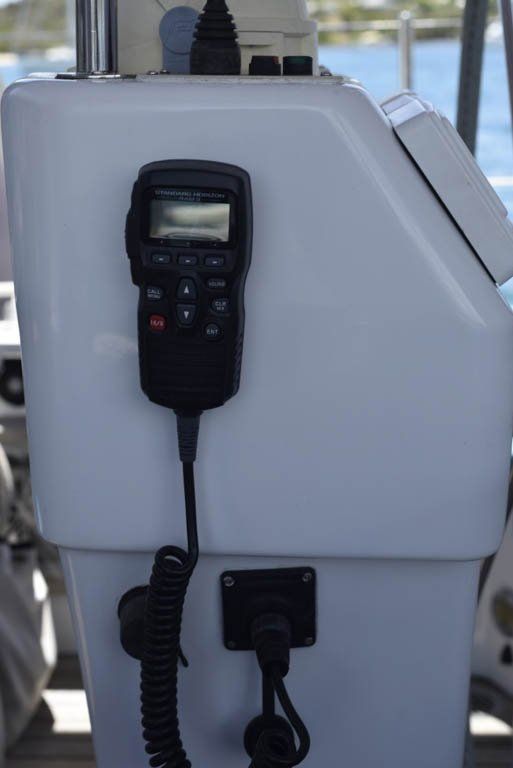

• Standard Horizon Explorer GX1600 VHF with GPS readout, DSC and repeater
• Standard Horizon HX280E submersible handheld VHF
• SSB radio
• Pactor modem
• Handheld Inmar ISat Phone Pro Satphone
• Digital Yachts 100 AIS receiver
• Hitachi 240V 20" TV (old style)
• JVC CD/radio with 12 disc changer
• Cockpit speakers x 2
• Saloon speakers x 2

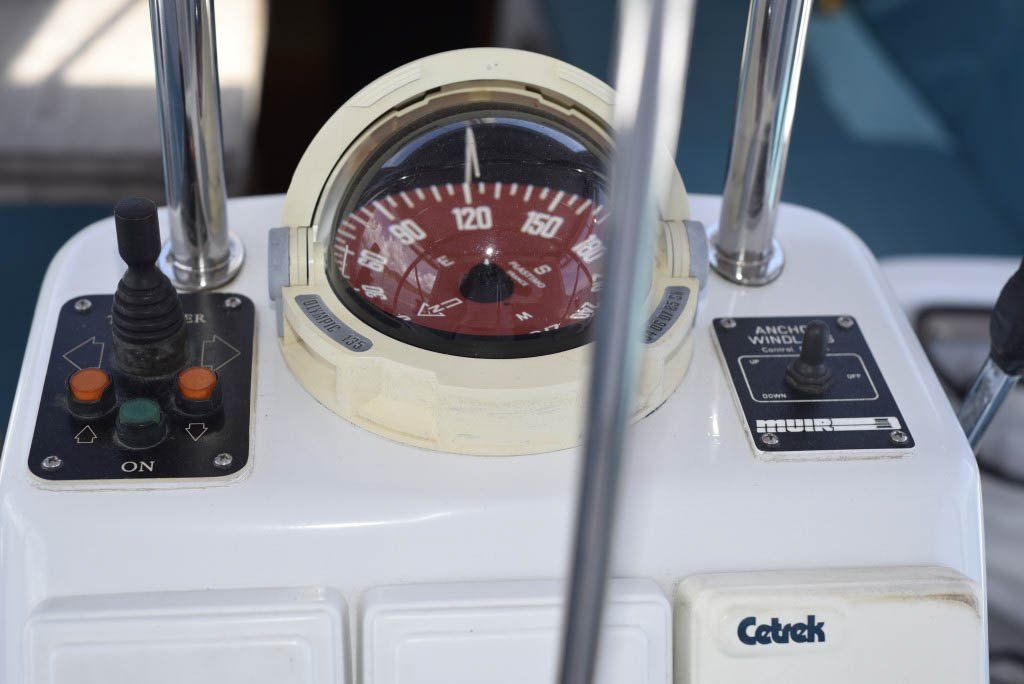

• Plastimo Olympic 135 compass

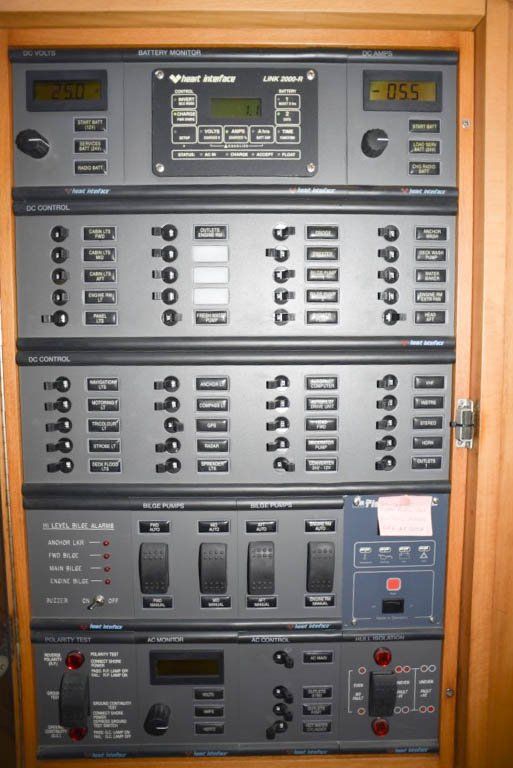

DC Electrical System

House batteries - New 2020

• Make: Vision AGM
• Voltage: 24 Volt
• Size: 660 amp @24V
• Qty: 12

Starter batteries

• Make: Deka
• Voltage: 12V
• Size: 160 amp @12V
• Qty: 2

Charging

• 70 Amp 12V alternator
• 120 Amp 24V alternator
• Mass Combi battery charger with generator/mains support
• 2 x 290W Solar panels with Victron 50/100 MPPT controller

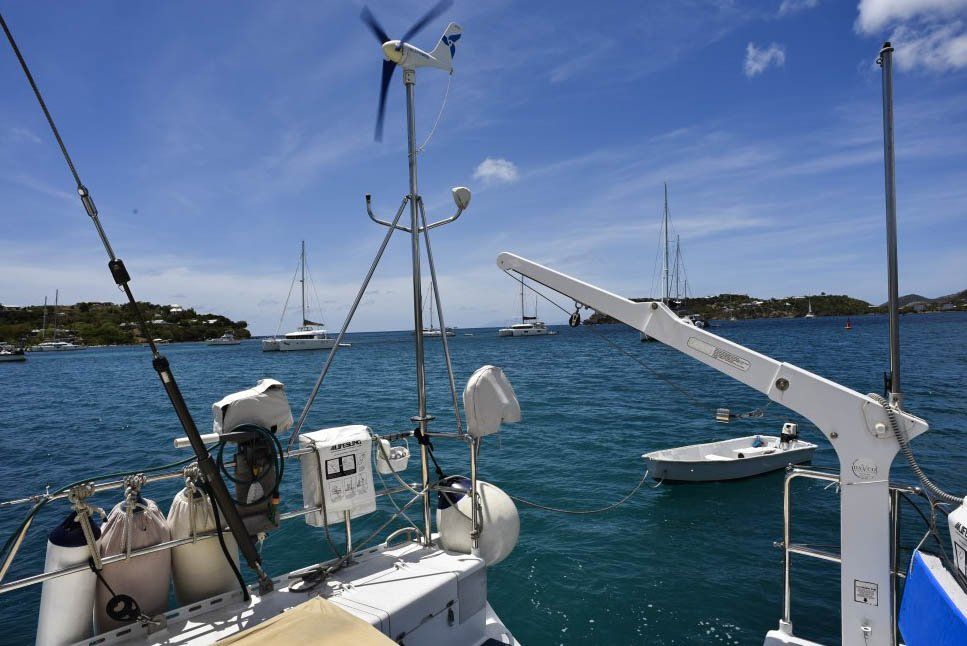

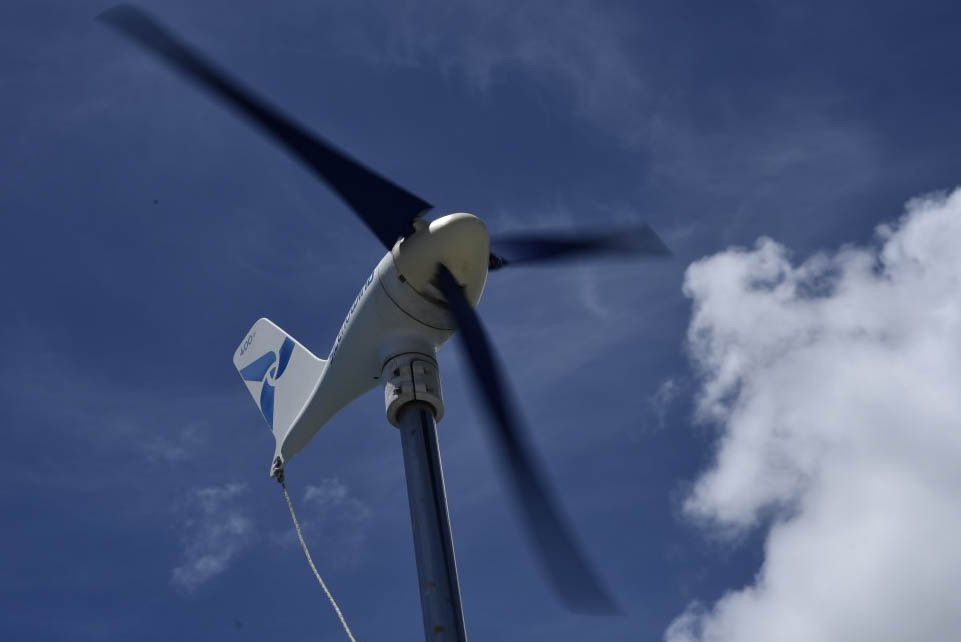

• Silent Wind 400 + 24V wind generator

AC Electrical System

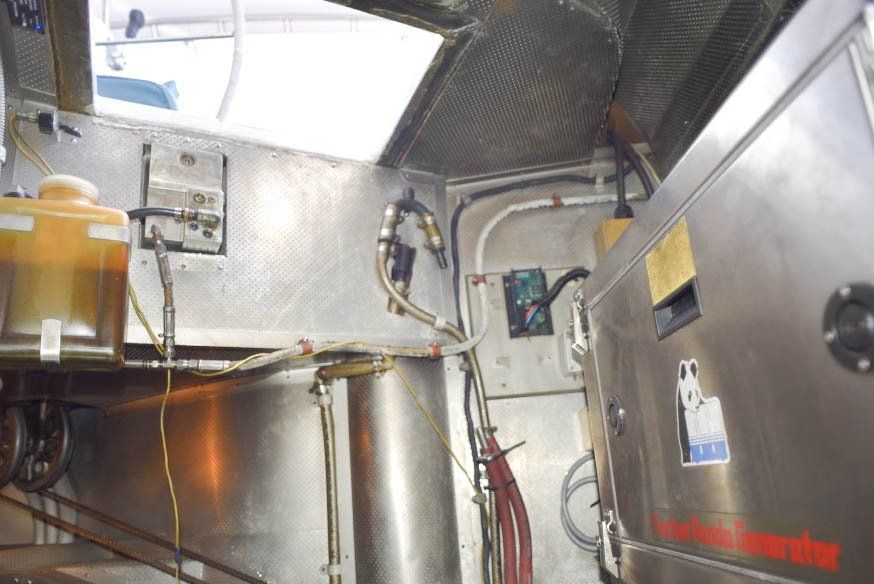

Generator

• Make: Fischer panda (New 2012)
• Model: 4000 AGT
• Hours: 1276
• Voltage: 24V

Inverter

• Make: Mastervolt/Mass Combi
• Model: 24 / 2500/-60 (sine wave inverter-charger)

Battery charger

• Make: Combi (with generator/mains support)
• Model: Mass Combi

Shore power

• Voltage: 240V
• Cable: Marinco 65'
• Isolation transformer: 240 & 110 input

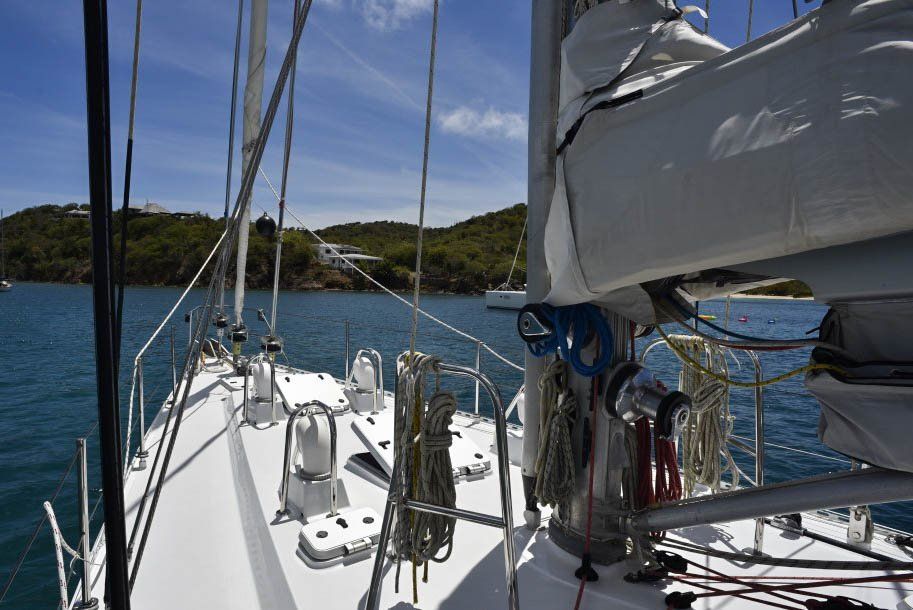

Rig
Twin headsail cutter sloop

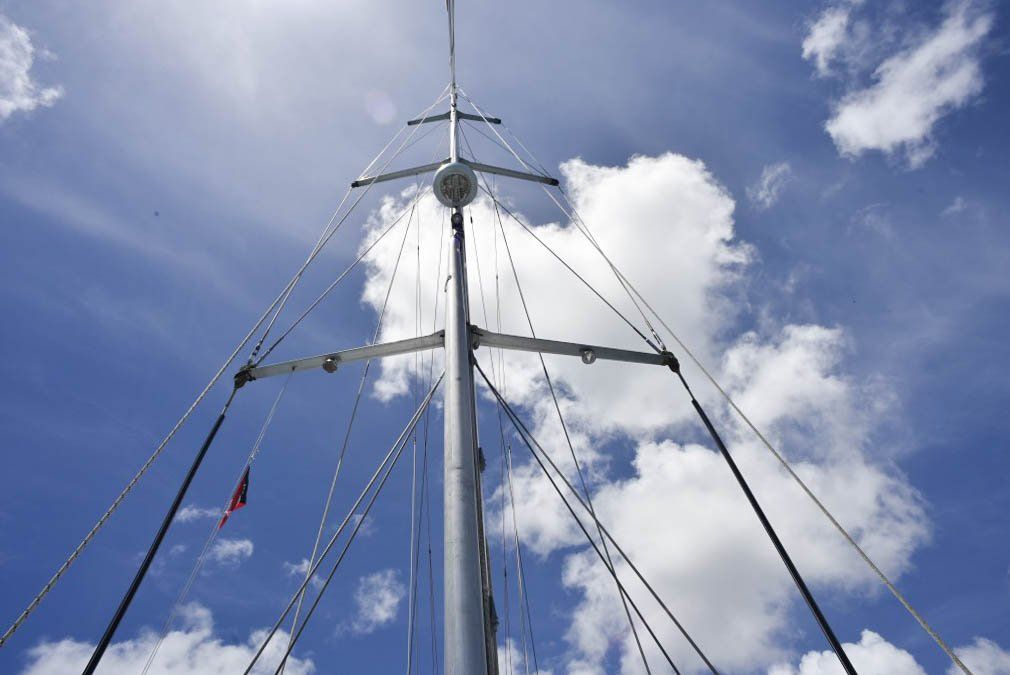

Mast

• Make: Sparmaster
• Length: 72'

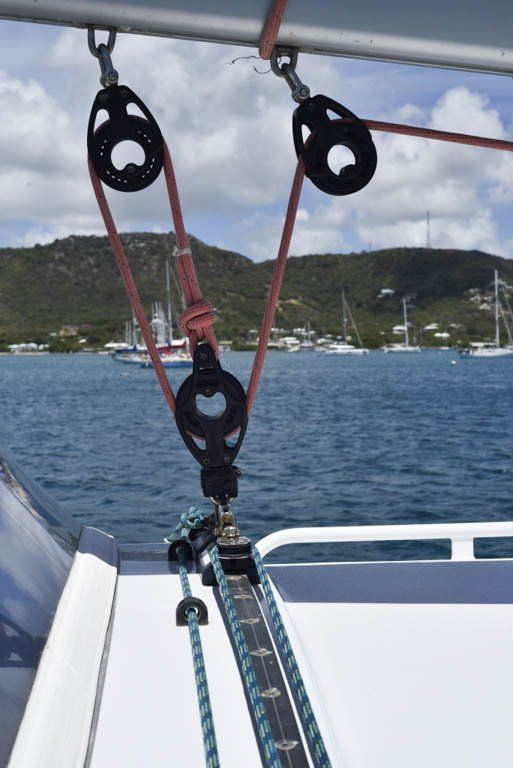

Boom

• Make: Sparcraft
• Gas cylinder spring vang
• Boom preventer (rope tackle port and starboard)

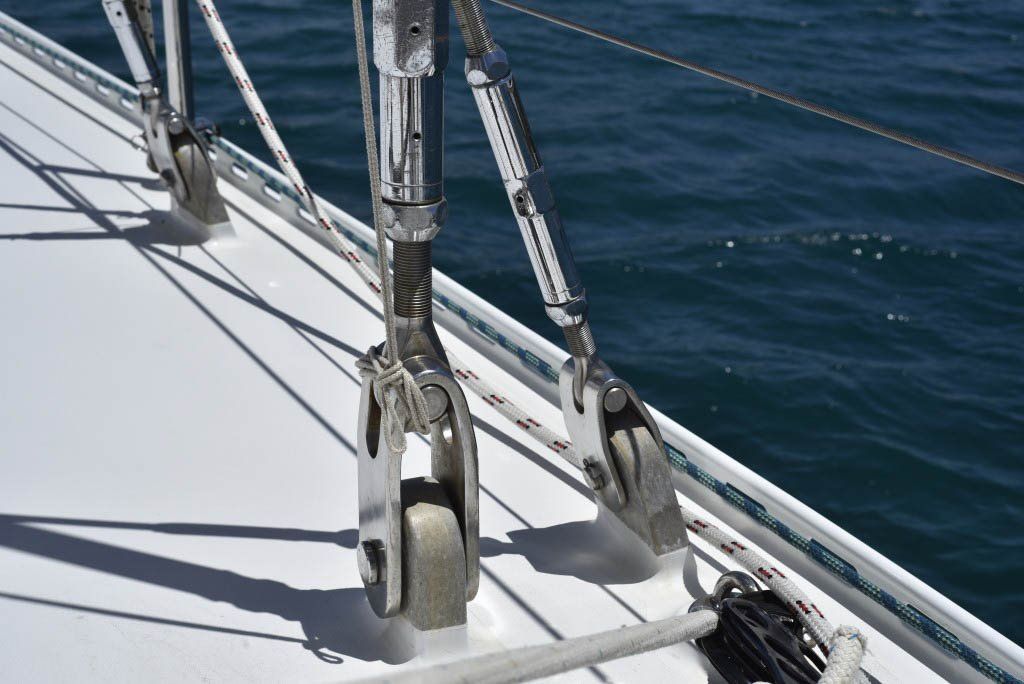

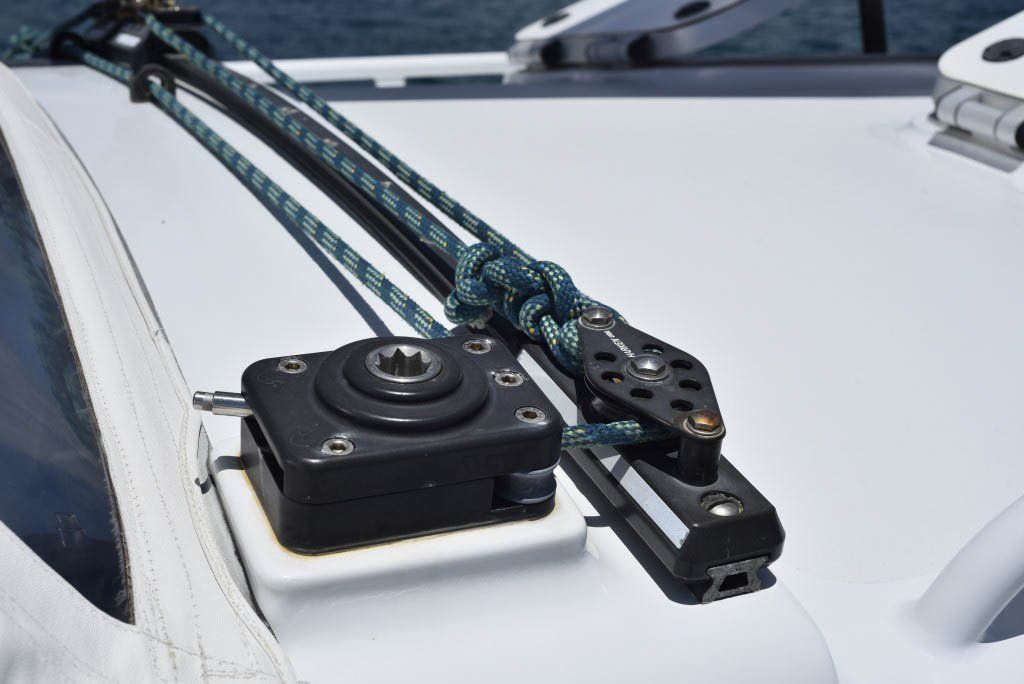

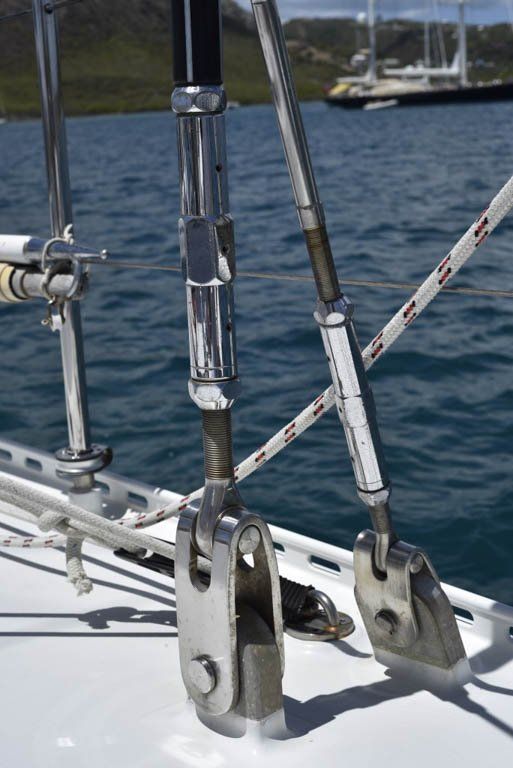

Rigging

• Standing: Dyform
• Running: Marlow & Liros Spectra

Sails

Mainsail - Fully battened in stackpack

• Make: Doyle
• Material: Hydronet
• Area: 666 sq ft
• Age: New 2014

Genoa 1 - on roller furling

• Make: Doyle
• Material: Hydronet
• Size: 135%
• Age: New 2014

Genoa 2 - on roller furling

• Make: Doyle
• Material: Hydronet
• Size: 110%
• Age: New 2014

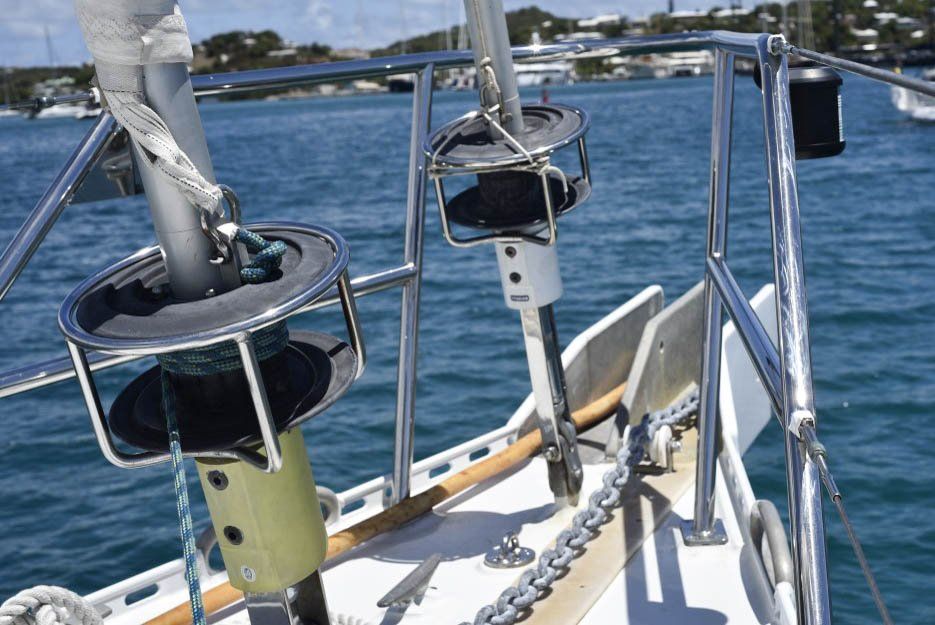

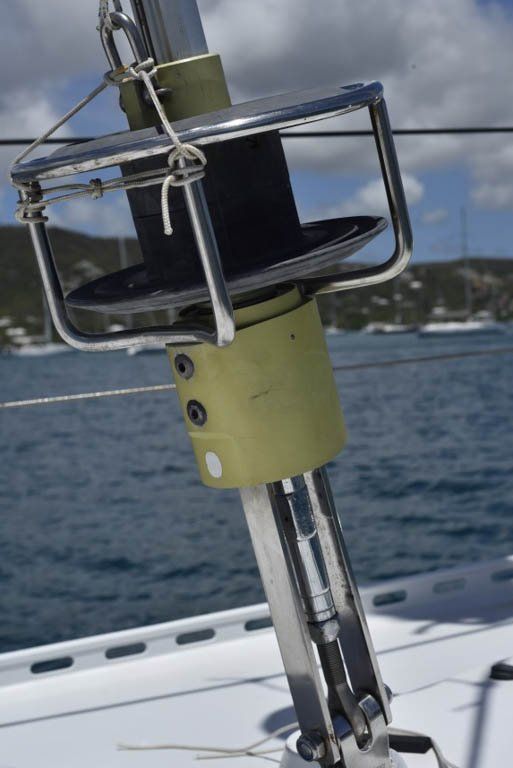

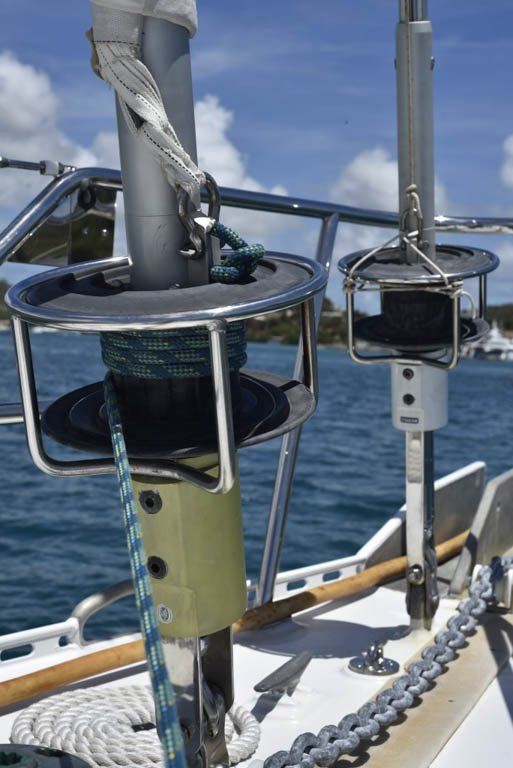

Staysail - on roller furling

• Material: 10oz Dacron
• Size 100%
• Age: New 2012

Storm jib and trysail also available

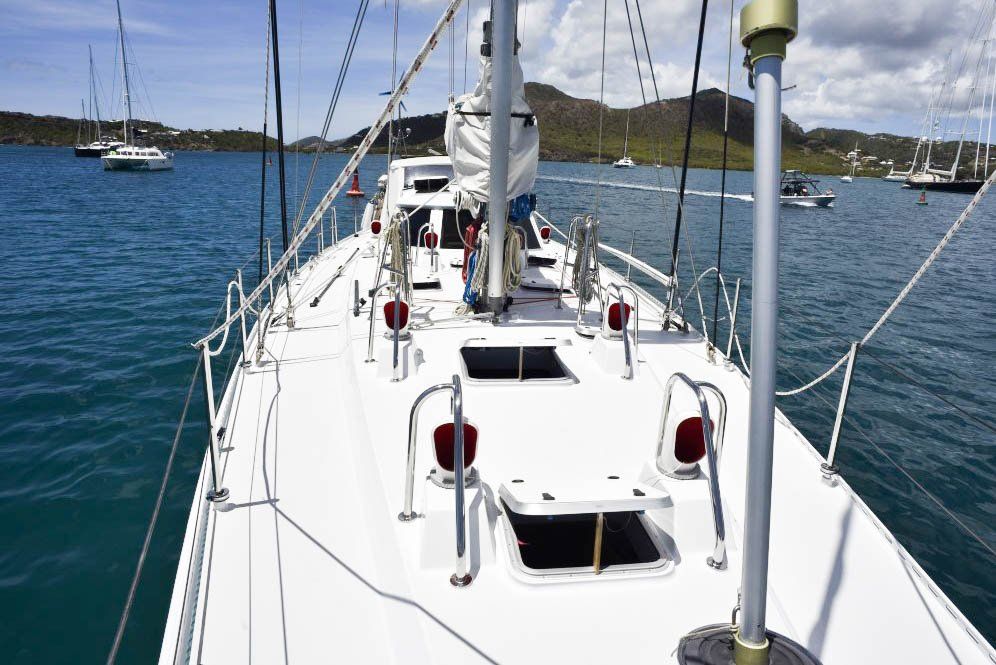

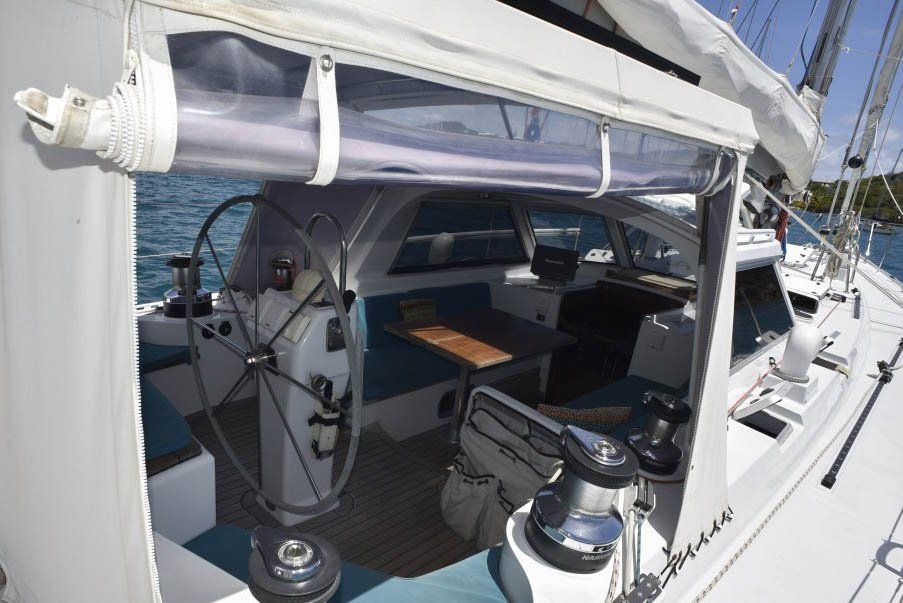

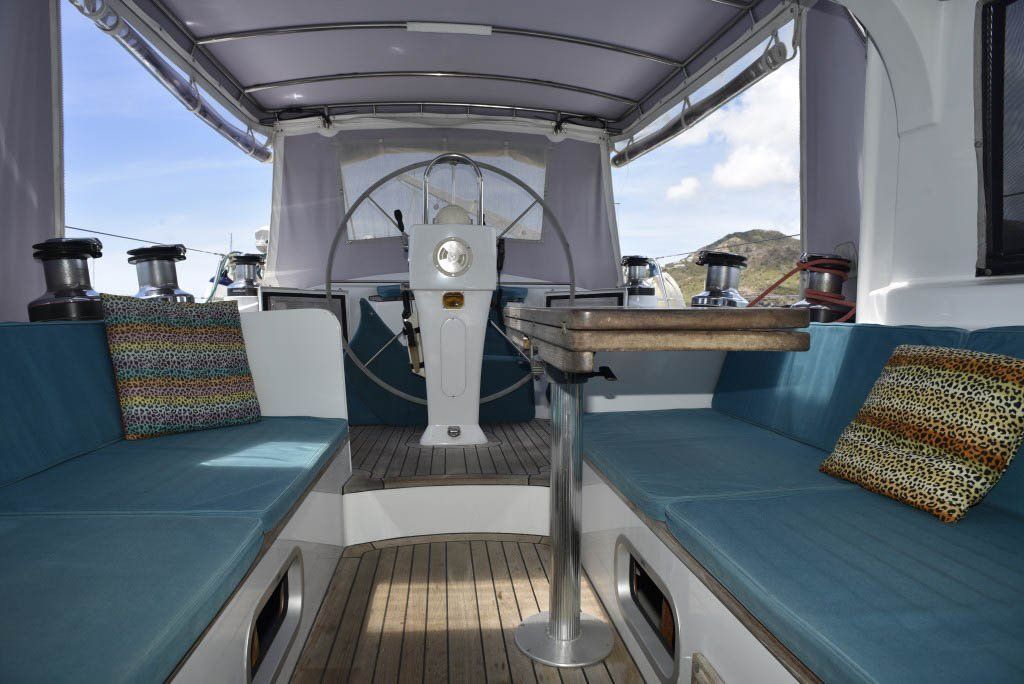

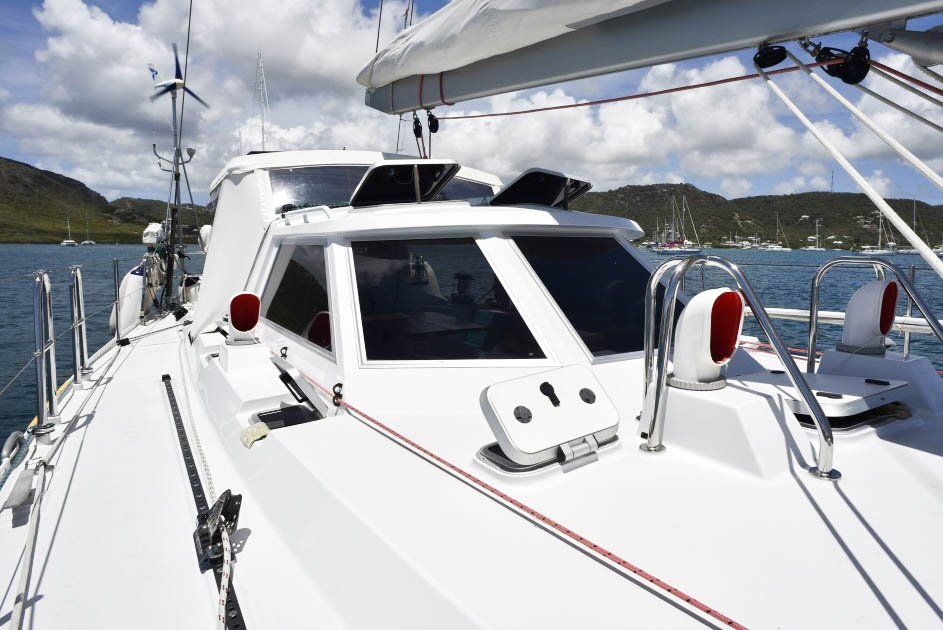

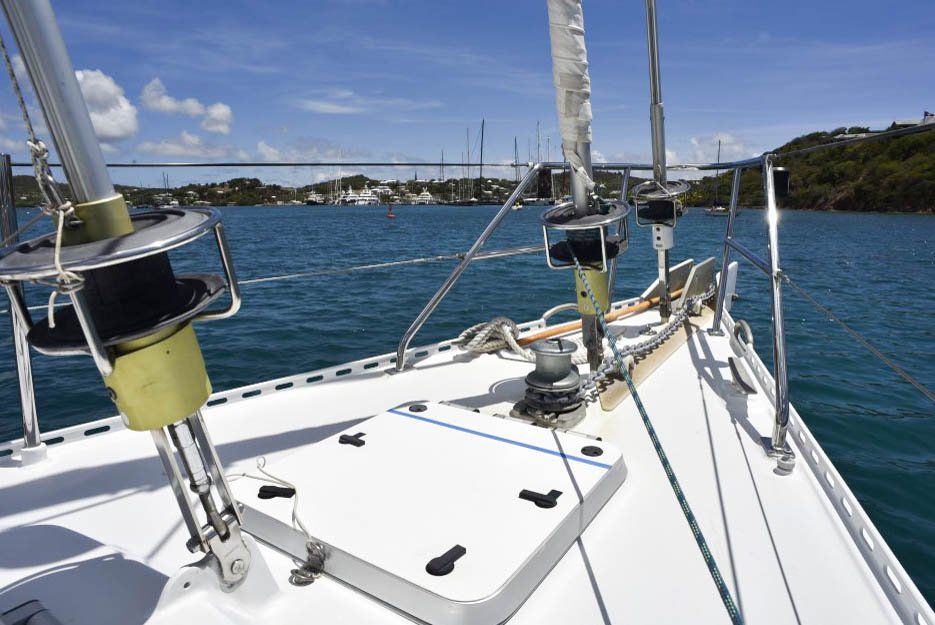

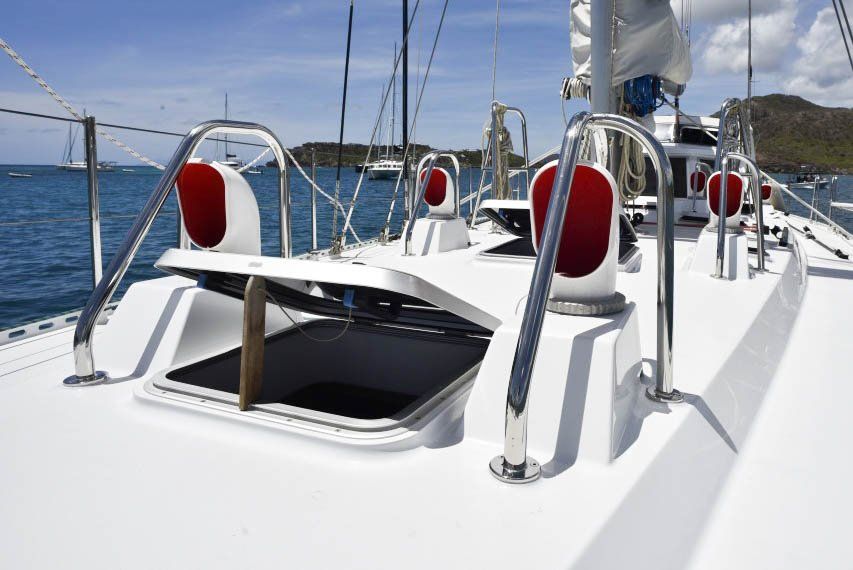

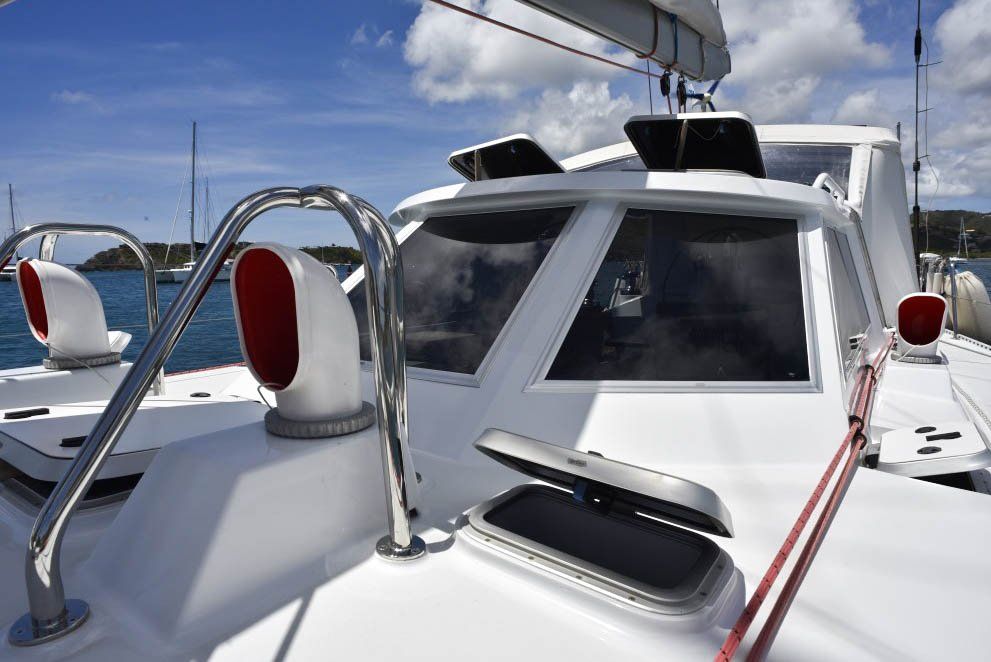

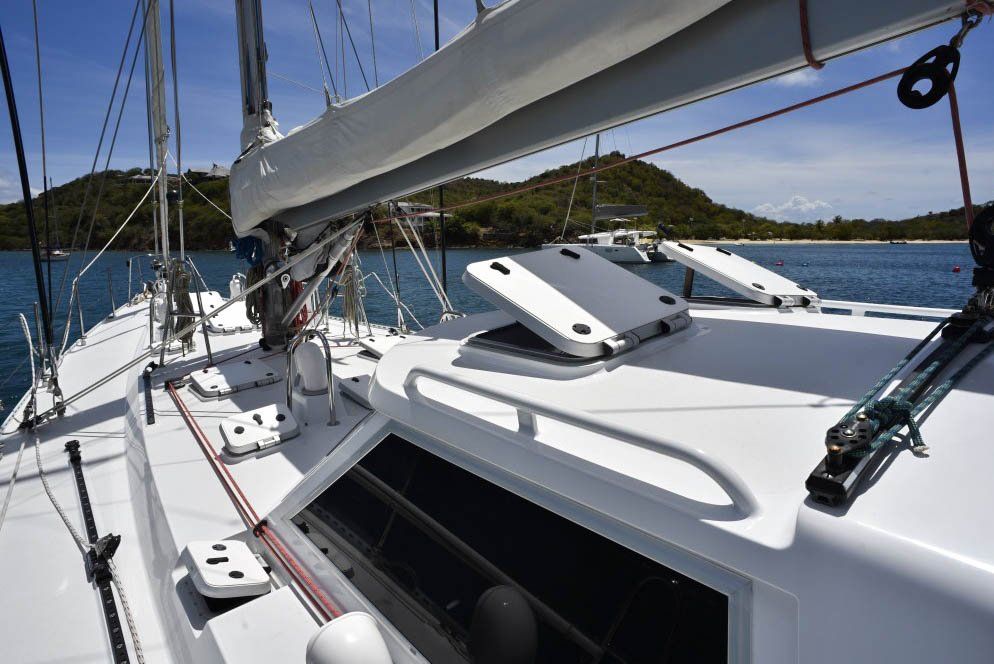

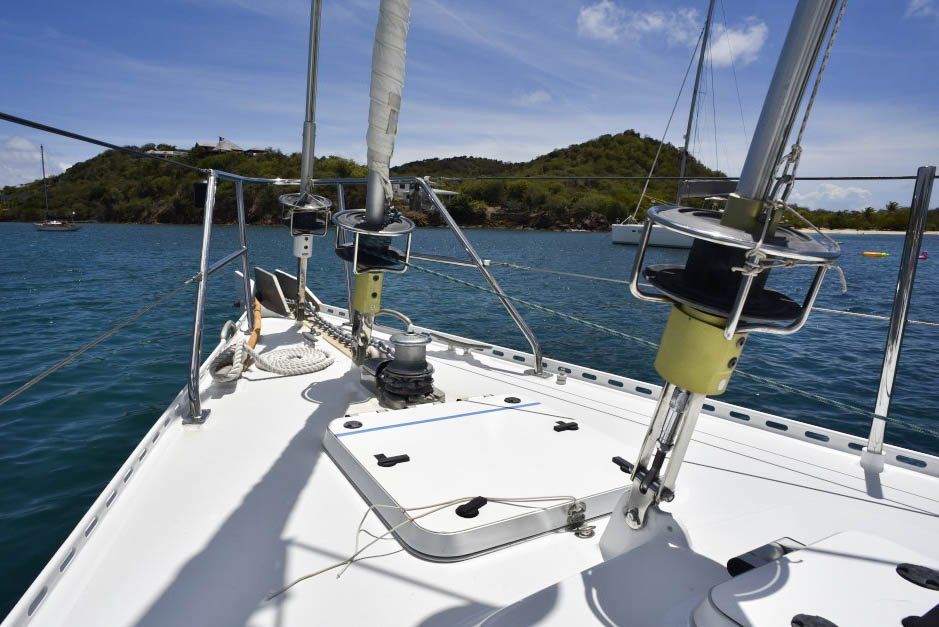

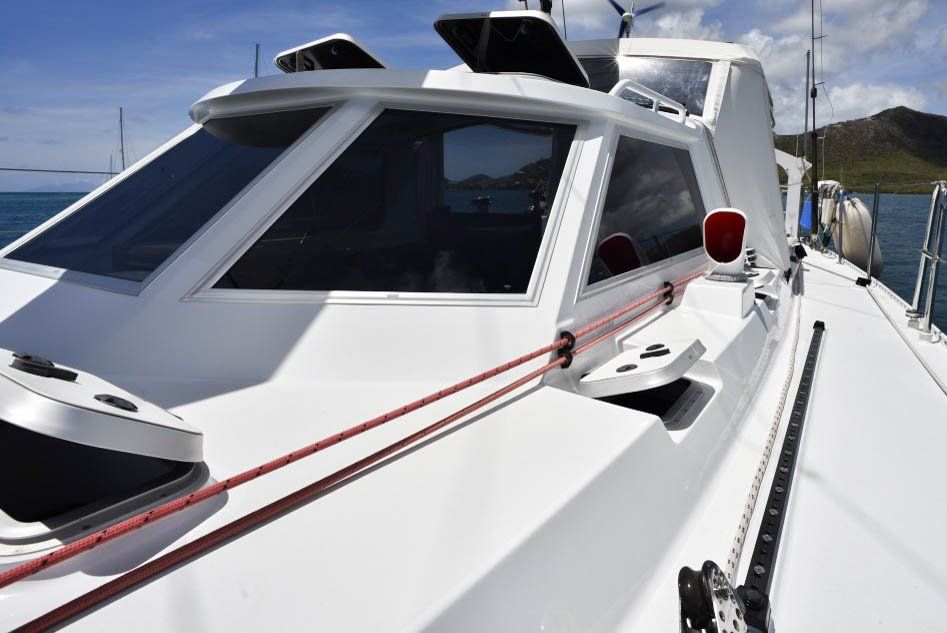

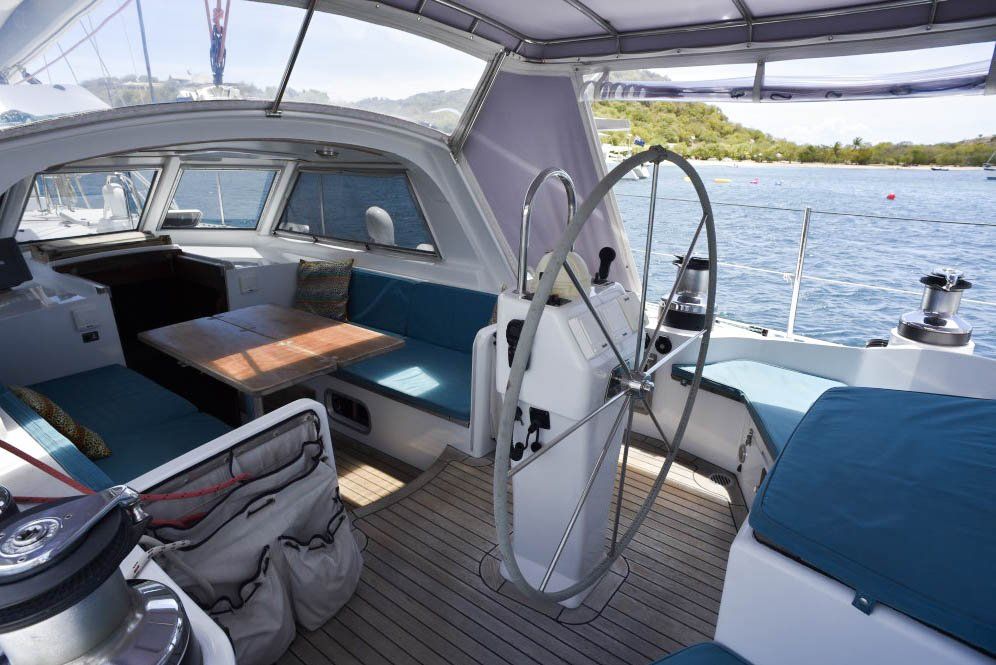

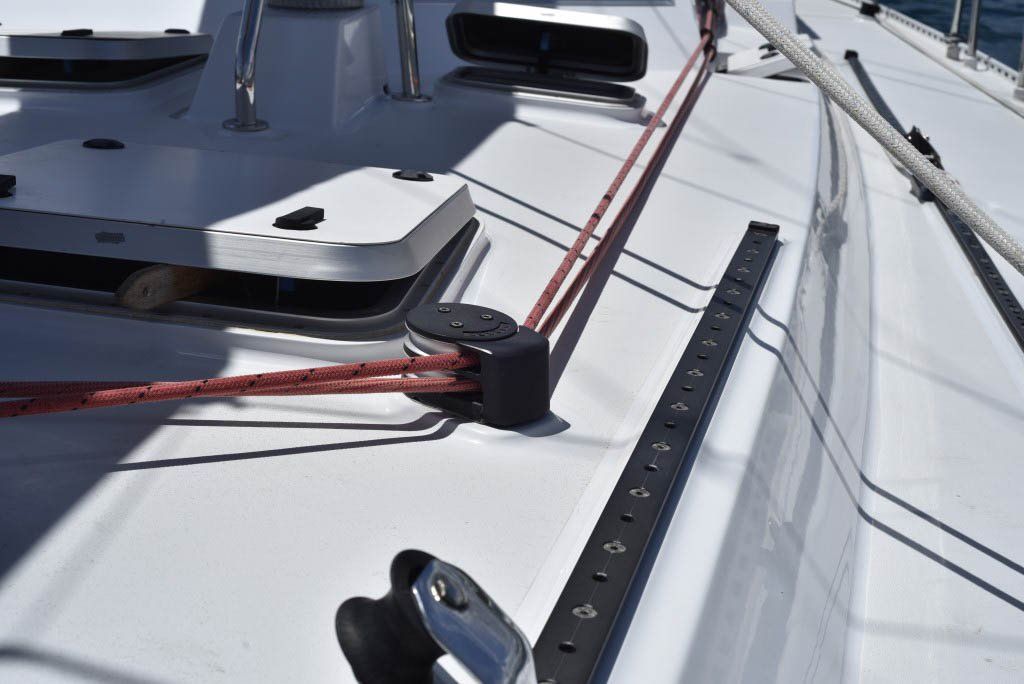

Deck

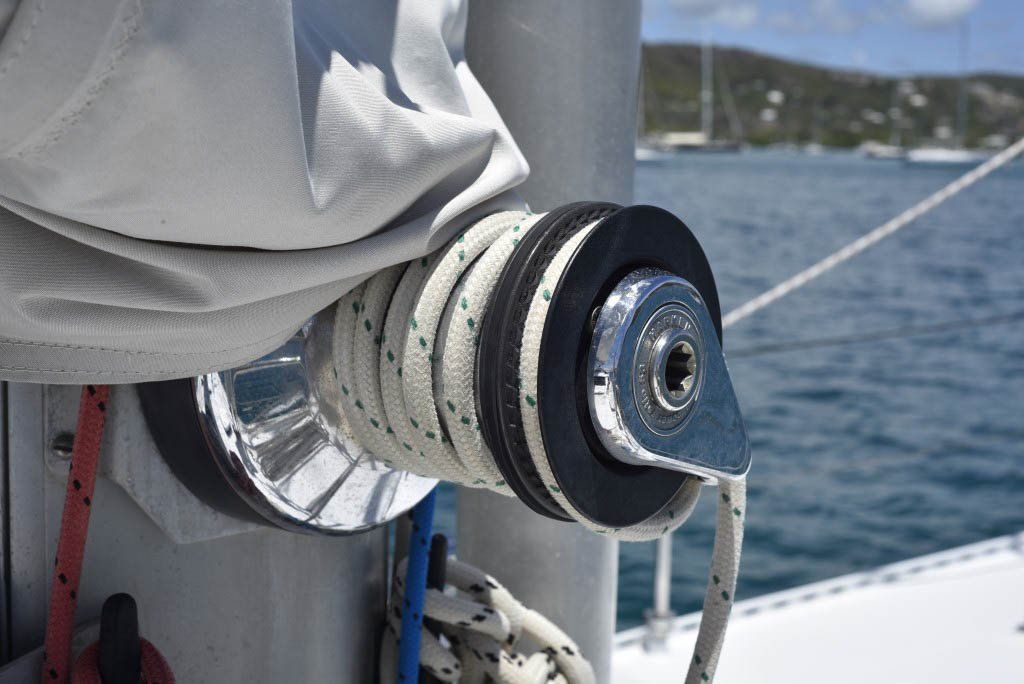

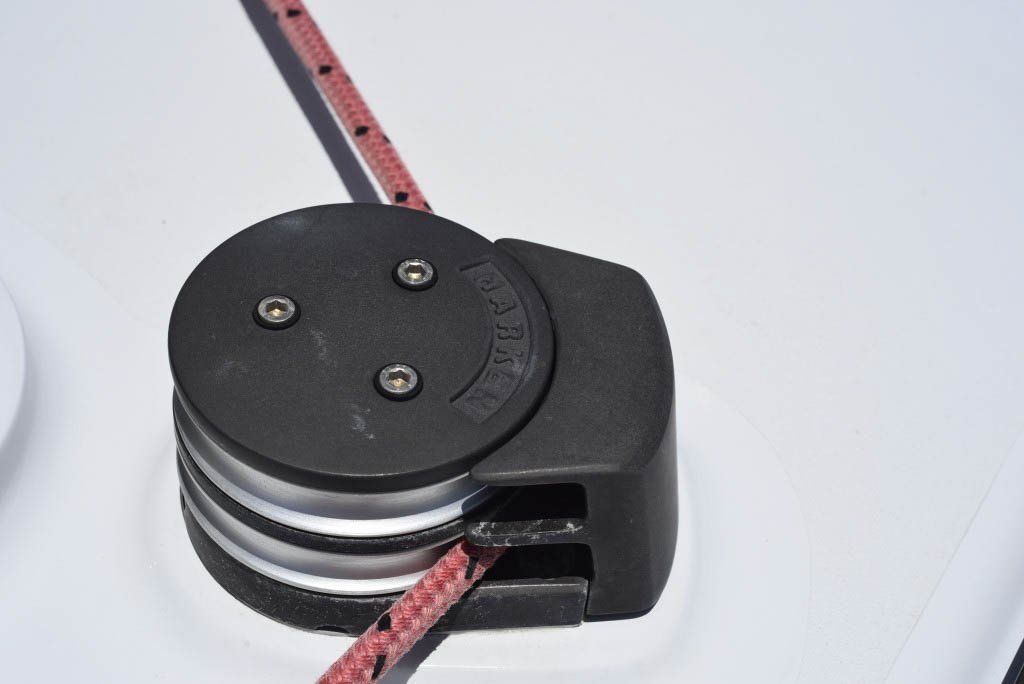

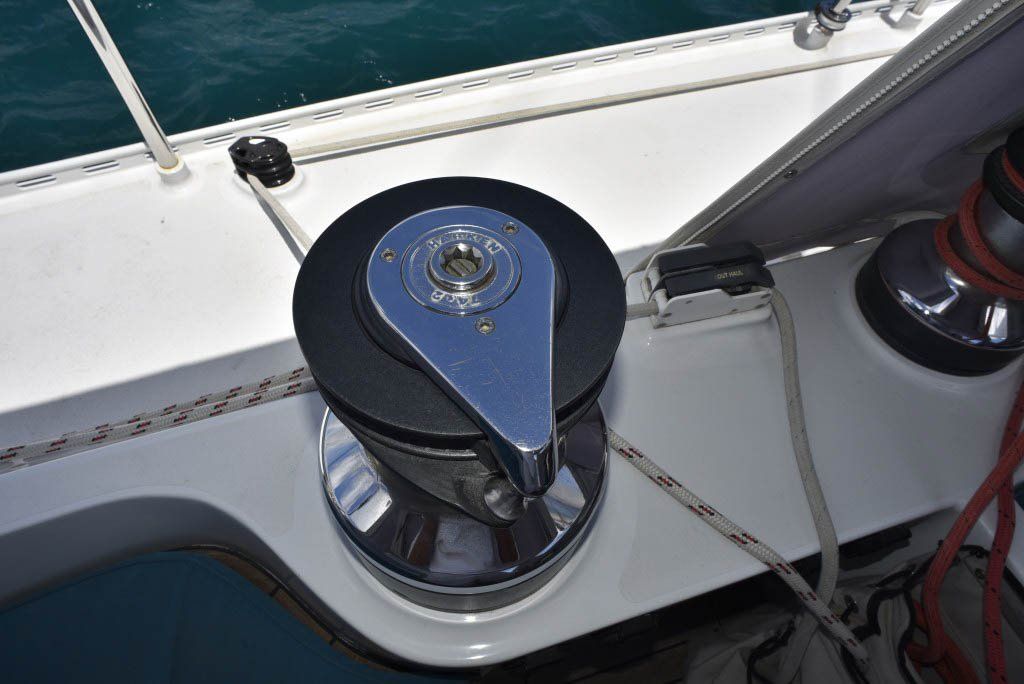

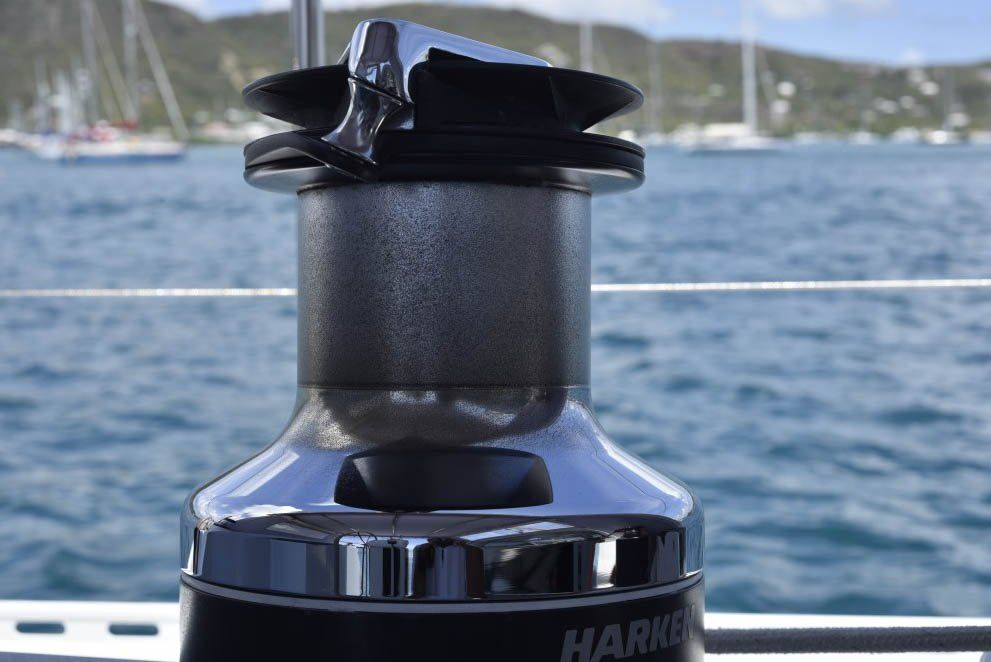

• 4 x electric cockpit winches

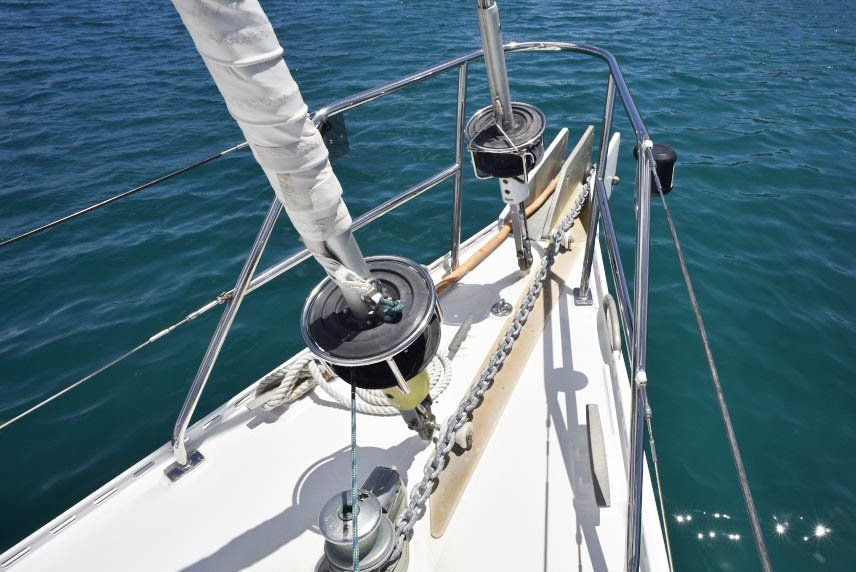

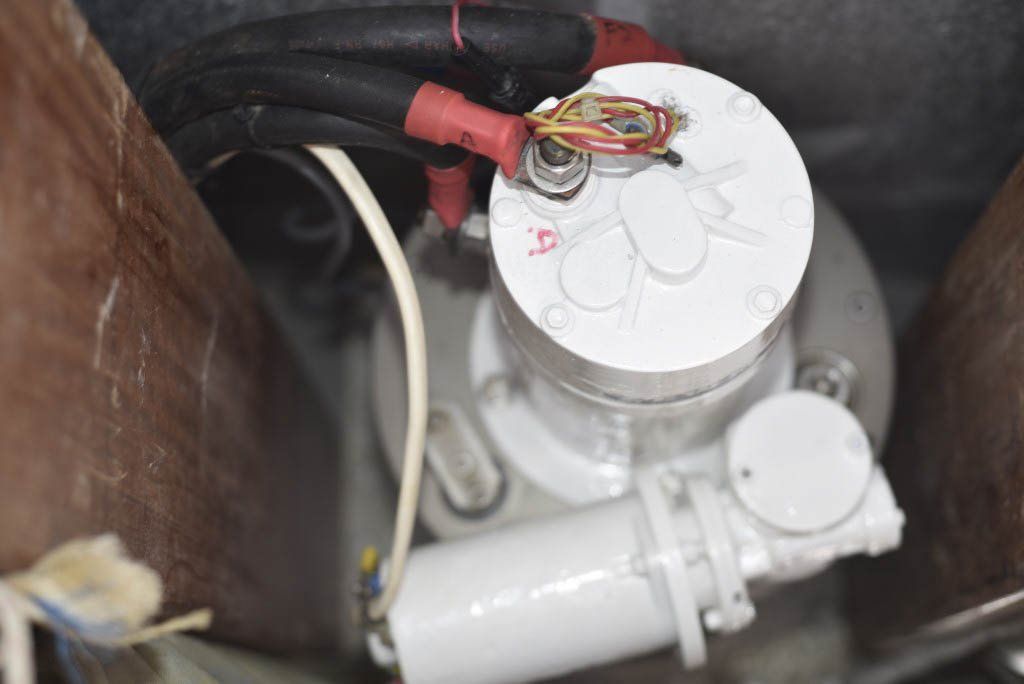

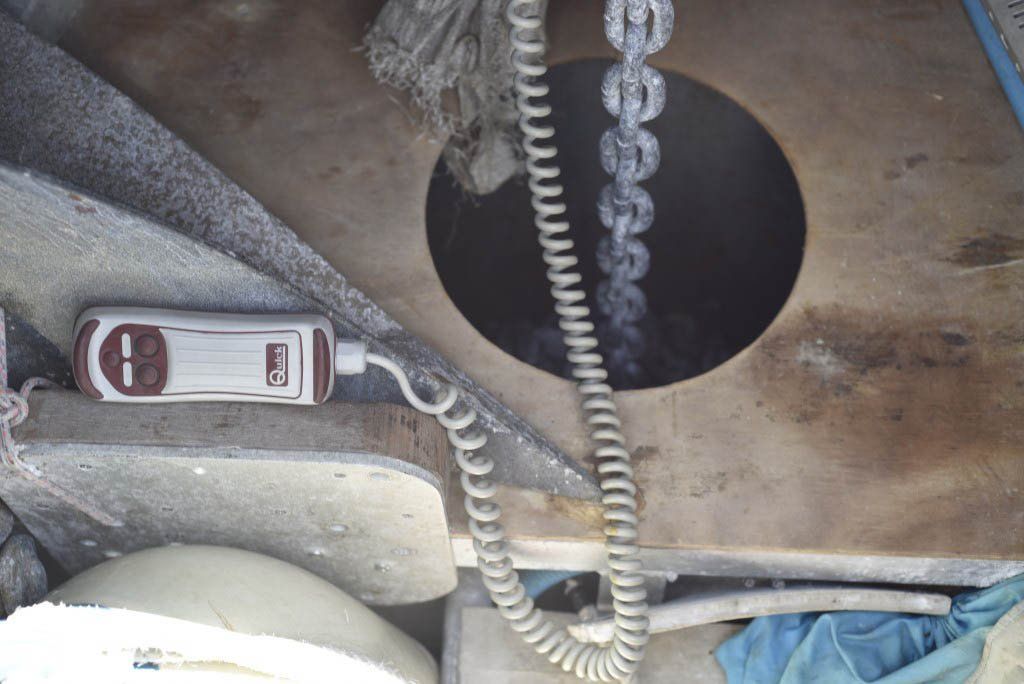

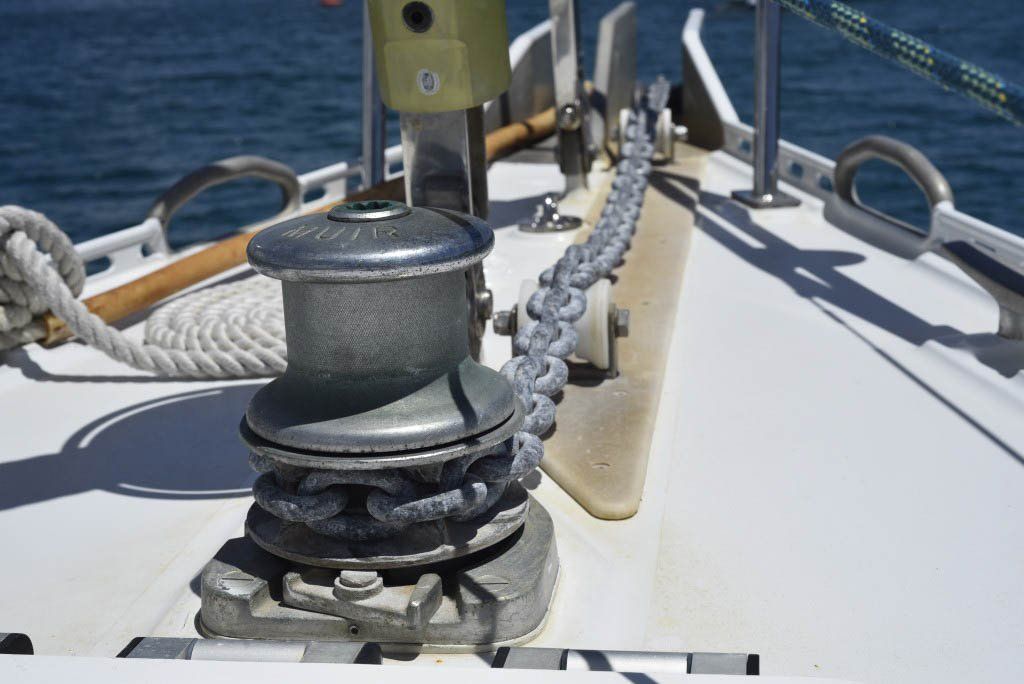

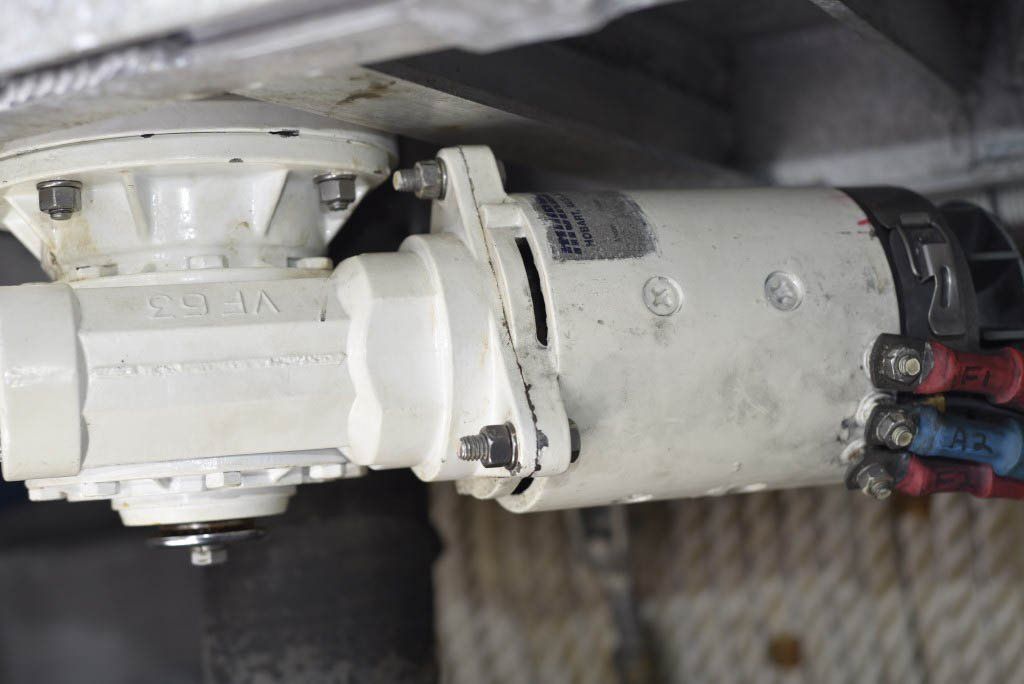

• Electric anchor windlass
• Bow thruster
• Custom 11' 6" plywood dinghy
• Zodiac 310 high pressure floor, rollaway dinghy
• Tohatsu 9.8hp outboard (New 2018)
• Yamaha 3hp spare outboard
• Outboard bracket
• Tender storage on aft deck
• Swim platform

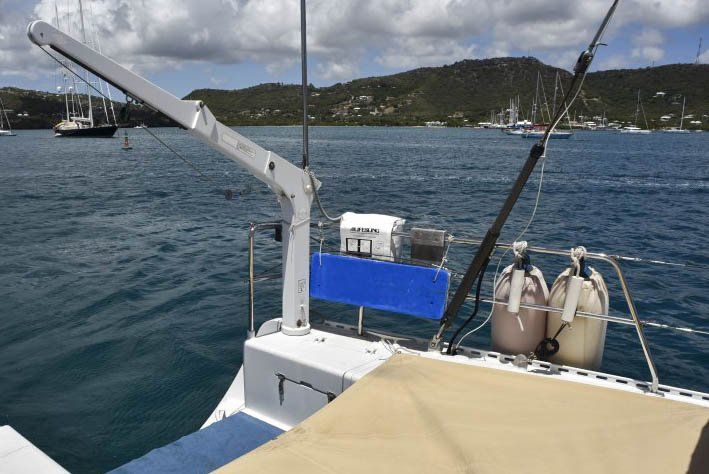

• Tender/outboard crane
• LED and incandescent lights in cockpit

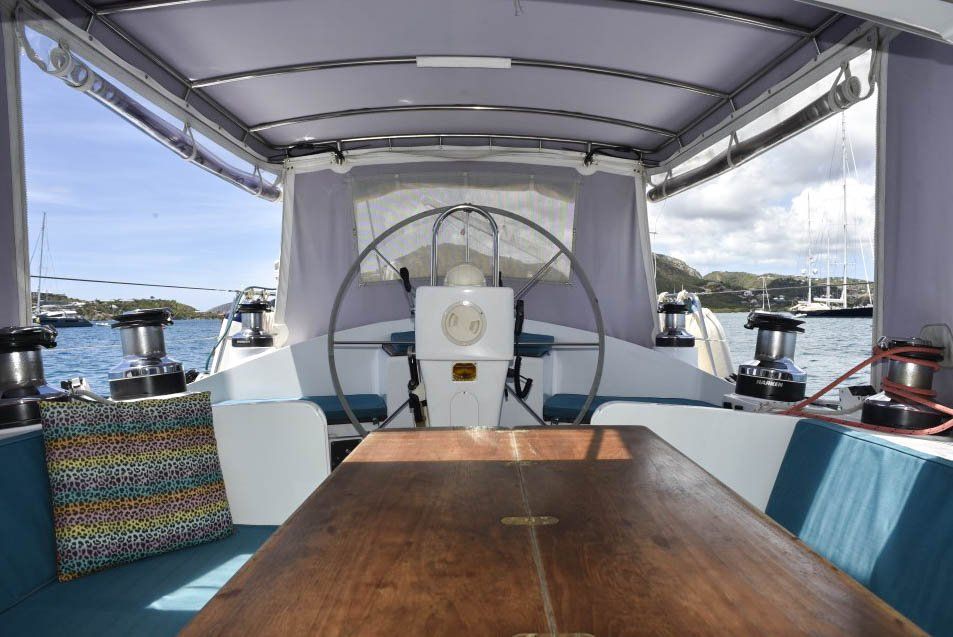

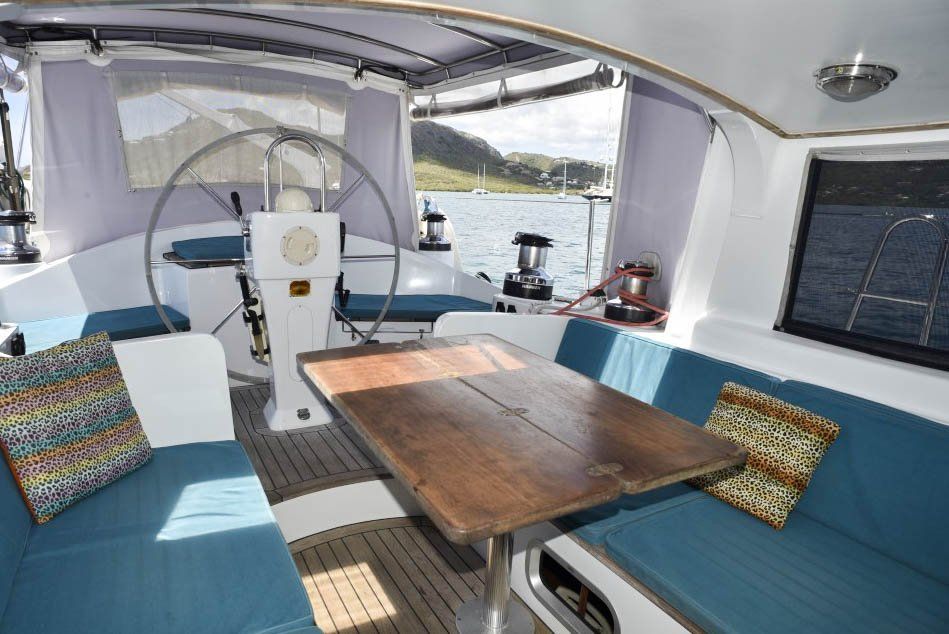

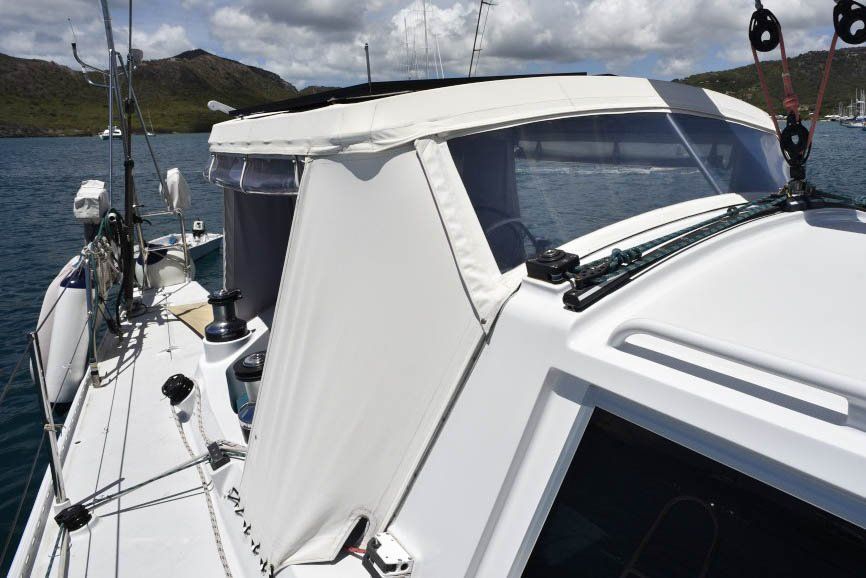

Canvas

• Stamoid foredeck awning
• Stamoid main awning from mast to backstay with side curtains
• Stamoid dinghy well cover
• Nilex bimini
• Strata glass side panels

Safety Equipment

• Viking Rescu 4 liferaft - 4 person serviced Dec 2020. Next service due Dec 2023
• 3 x Epirbs
• Danbouy
• Lifesling x 2
• Flares in barrel
• 4 x Self-inflating lifejackets

Other

Keel and prop

• Chuck Paine long fin wing keel
• Bruntons feathering auto prop

Ground tackle

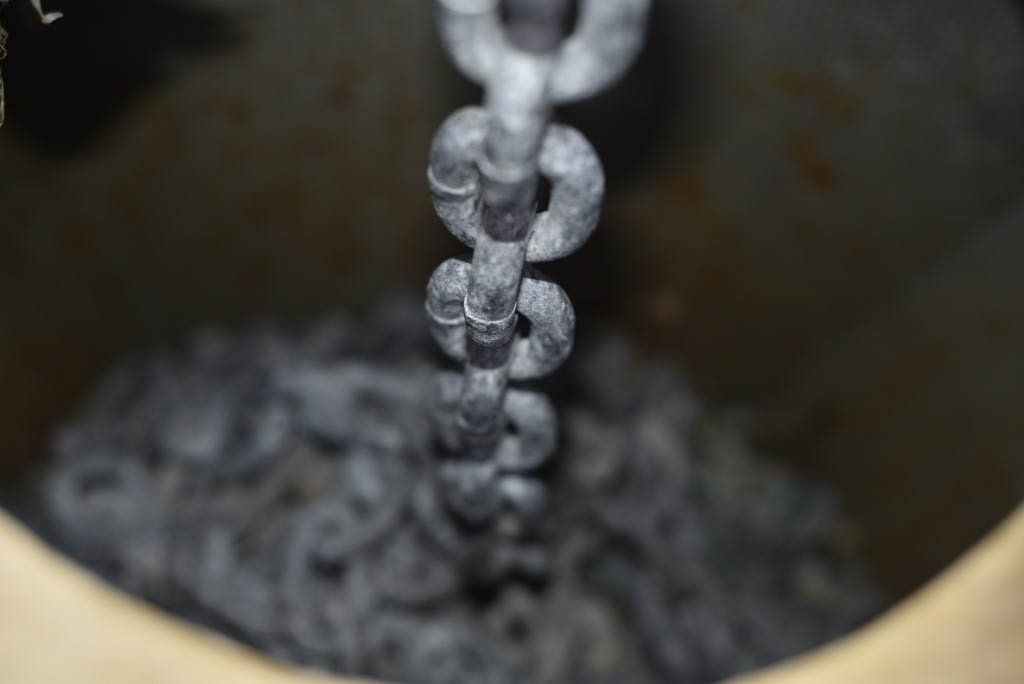

• Main anchor: 40kg Delta plough with 100m of 13mm chain
• Second anchor: 75Lb CQR with 10m of 10mm chain and 200m of 1" nylon rode
• Third anchor: Large Fortress Danforth type aluminium with 7m of 10mm chain and 70m of nylon rode

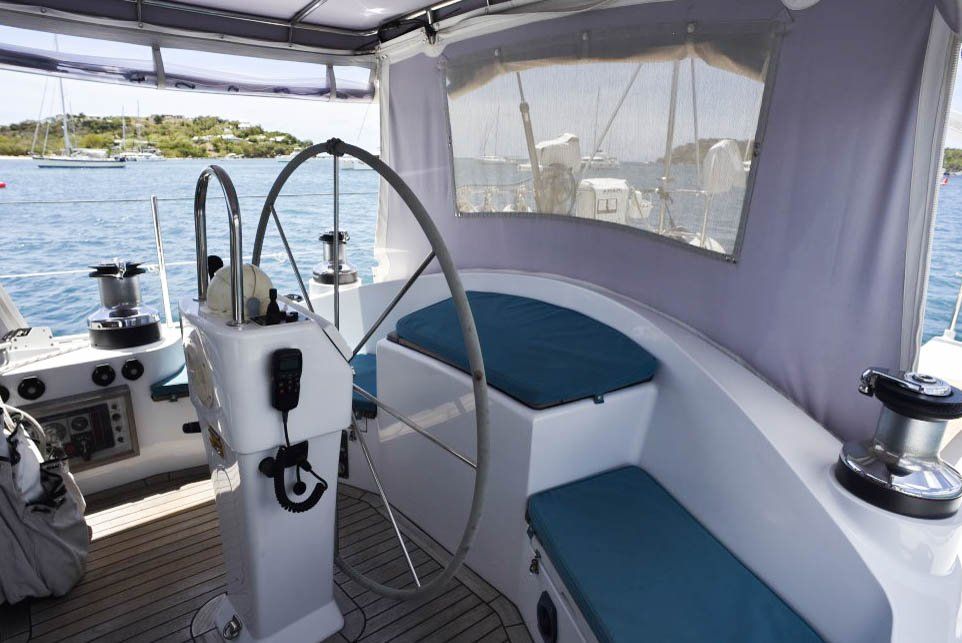

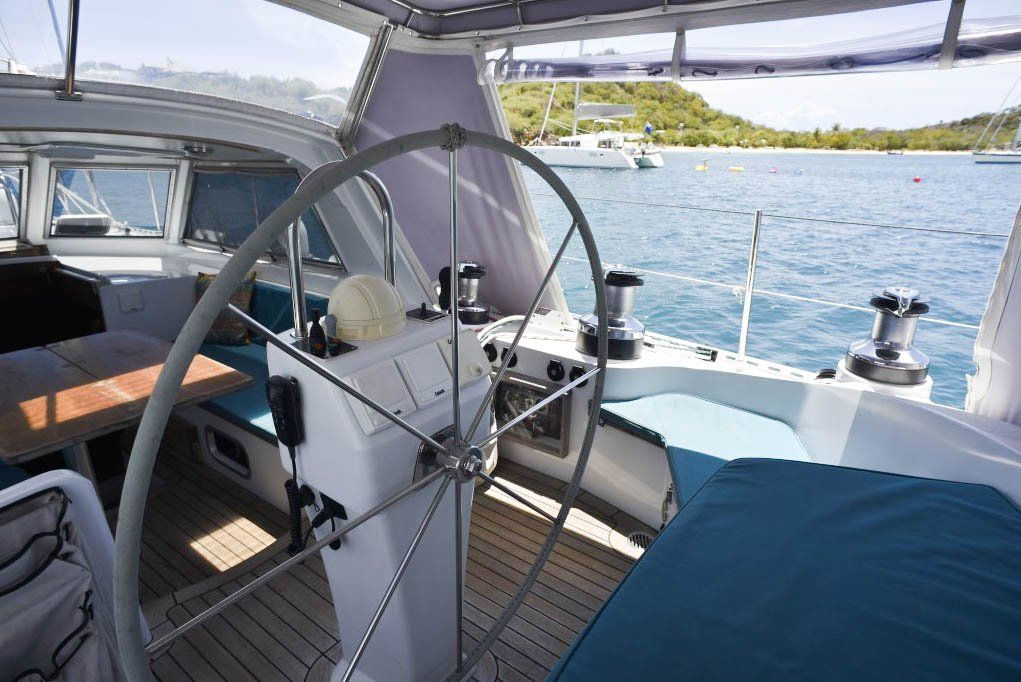

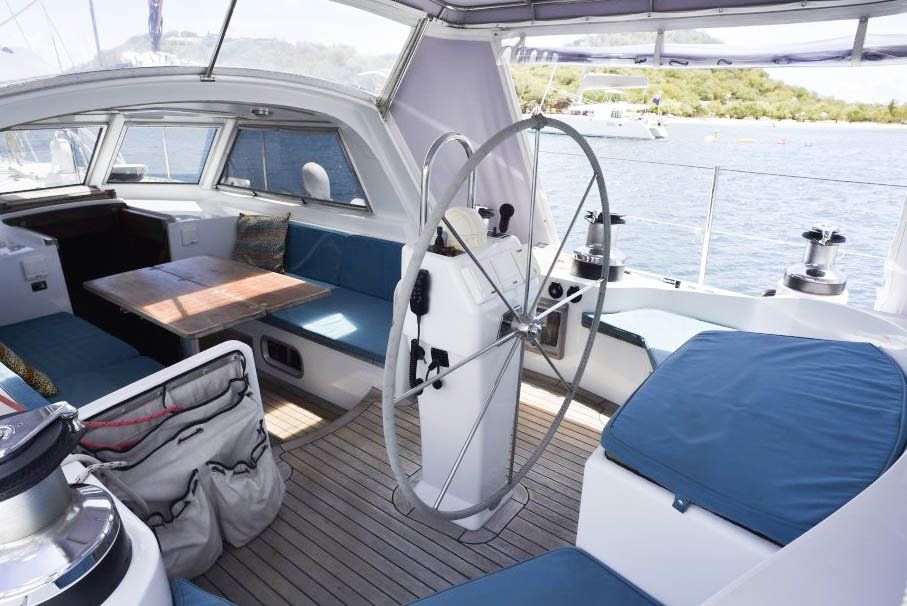

Steering

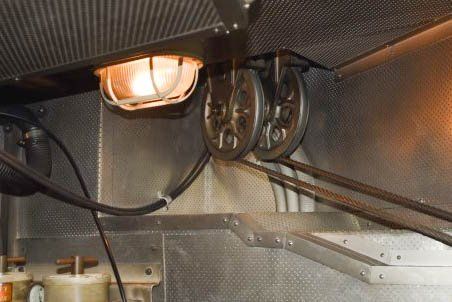

• Edson chain and wire around 6" sheaves to quadrant
